Alfresco · Grill Drawers

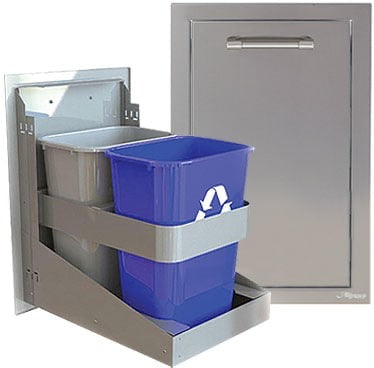

Alfresco 15" Trash Center Drawer AXE-TC-SC - Soft-Close with Plastic Receptacle
- $1,039.00
- $1,039.00
- Unit price
- per
Free shipping on all orders
Add to your order optional
Subtotal:
$1,039.00
Ask Ryan about this grill
Fit, fuel, install or delivery. Get a straight answer before you order.
- Manufacturer warranty on every grill
- 30-day returns on eligible items, 20% restocking fee. Return policy
- 0% credit card fees
Confirm your cutout 12.5" W × 26.25" H × 18.5" D
Specifications
| Brand | Alfresco |
|---|---|
| Cutout (W × D × H) | 12.5" × 18.5" × 26.25" |
| Overall (W × D × H) | 14.875" × 18.4375" × 28.875" |
Alfresco 15" Trash Center Drawer AXE-TC-SC - Soft-Close with Plastic Receptacle FAQs
Will AXE-TC-SC fit my existing outdoor kitchen opening?
Assembly dimensions (W × H × D): 14.875 × 28.875 × 18.4375 inches. Required opening (W × H × D): 12.5 × 26.25 × 18.5 inches. Depth is behind the front frame; handle projects beyond it. Manufacturer drawing shows 17¾-inch maximum pull-out extension. Cutout depth follows Alfresco's counter-cutout sheet. Request a fit check before ordering or construction.
What bins or trash bag supports come with AXE-TC-SC?
One 41¼-quart trash can included. Capacity alone does not establish compatibility: check rim width, body width, height, depth and the path for lifting the bin out.
Which alternatives should I compare with AXE-TC-SC?
Compare A-TRHD and C3-STC and the full trash and recycling range. These are shopping alternatives, not guaranteed replacements for the same opening. Compare the cutout, full-extension space, bin inclusion, finish and installation type.
What does my installer need before fitting AXE-TC-SC?
Review the manufacturer specification or installation drawing for the exact SKU and finish. Confirm the opening, frame overlap, finish thickness, rear support, fasteners, handle projection and full extension. Send Ryan the measurements and photos for a fit check.
Does a bin come with it?
One 41¼-quart trash can included. Check the exact receptacle rim and body dimensions, not capacity alone. Ask Ryan to confirm bin compatibility.
Is this a single-bin or double-bin unit?
Single bin. AXE-TC-SC is Alfresco's single-bin trash center.
Does it pull out like a drawer?
Yes. The receptacle sits in a drawer that slides out, so waste goes in at the front of the island instead of into something sitting on the counter.
Is the drawer soft-close?
Yes, which is what the SC in the model number stands for. It pulls itself shut under control rather than slamming, which is worth having on the one drawer you tend to close with a knee or an elbow.
How wide is it?
Fifteen inches. That is the nominal size Alfresco lists it under, so take the framed opening from the AXE-TC-SC spec sheet rather than from the name when you build.
Will it match my other Alfresco doors and drawers?
Yes. It is part of the same stainless line of doors, drawers and combinations, so it sits level with the rest of an Alfresco island front. Compare the other pull-out trash units if you are still choosing a width.
Alfresco 15" Trash Center Drawer AXE-TC-SC - Soft-Close with Plastic Receptacle
AXE-TC-SC provides single-bin pull-out for an outdoor kitchen cleanup area. Choose it by the measured opening, storage layout and bin requirements below.
Ask Ryan to check the fit of AXE-TC-SC. Share the existing model, finished opening, photos and bin dimensions before ordering.
Dimensions and installation
All measurements are inches. Product dimensions and required cutouts are different; check projection and component notes below.
| Measurement | Product / assembly | Required opening / cutout |
|---|---|---|
| Width | 14.875 in | 12.5 in |
| Height | 28.875 in | 26.25 in |
| Depth | 18.4375 in | 18.5 in |
Depth is behind the front frame; handle projects beyond it. Manufacturer drawing shows 17¾-inch maximum pull-out extension. Cutout depth follows Alfresco's counter-cutout sheet.
Bins and configuration
One 41¼-quart trash can included.
Check the manufacturer's listed stainless construction and finish for the selected SKU.
Manufacturer specifications and installation information · Additional manufacturer cutout sheet / specifications. Have the exact supplied unit and drawing confirmed before cutting the island.
Compare your options
Compare A-TRHD and C3-STC and the full trash and recycling range. These are shopping alternatives, not guaranteed replacements for the same opening. Compare the cutout, full-extension space, bin inclusion, finish and installation type.
Browse Compact Outdoor Trash Drawers: 14–17 Inch Class, or read the outdoor trash drawer and cabinet buying guide and trash storage FAQs.
For stock and delivery timing to your ZIP code, send Ryan a fit request.
