Liner for GFE105 + OML105P / OML105C

Le Griddle Insulating Liner for 105 Series Griddles — GFLINER105

The GFLINER105 is the insulating liner for the 41-inch Le Griddle griddles — the GFE105 and OML105. As with every liner in the range, it is a code and safety item rather than an upgrade: a combustible surround — wood framing, composite panel, most prefab island kits — means this liner is required. Only fully non-combustible construction lets you skip it.

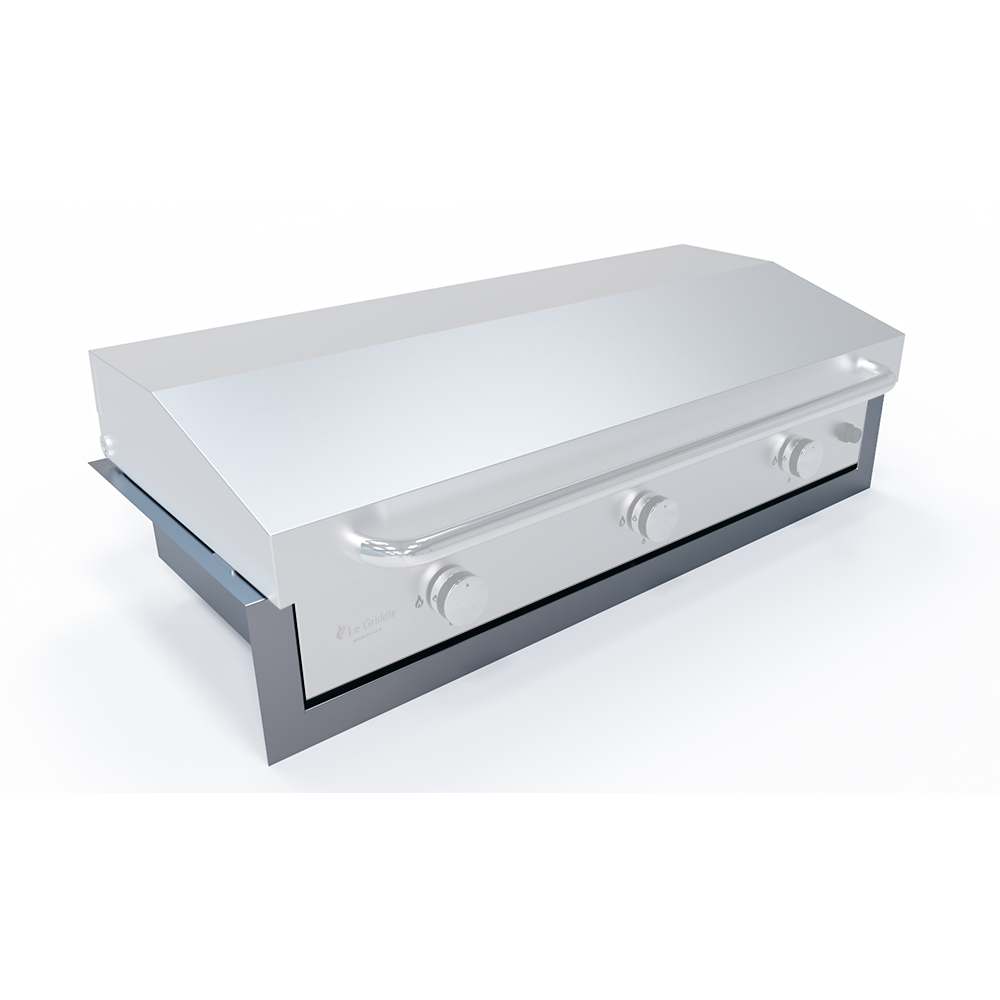

At this size it is also the single biggest thing your island has to accommodate. The liner measures 44-9/16" wide by 18-5/8" deep by 8-1/16" high overall, with an internal opening of 43" by 17-1/2" by 7-1/4" — nearly four feet of clear span that the framing has to carry around, not through. Get that on the drawings before the island is built; adding it later means cutting an island apart.

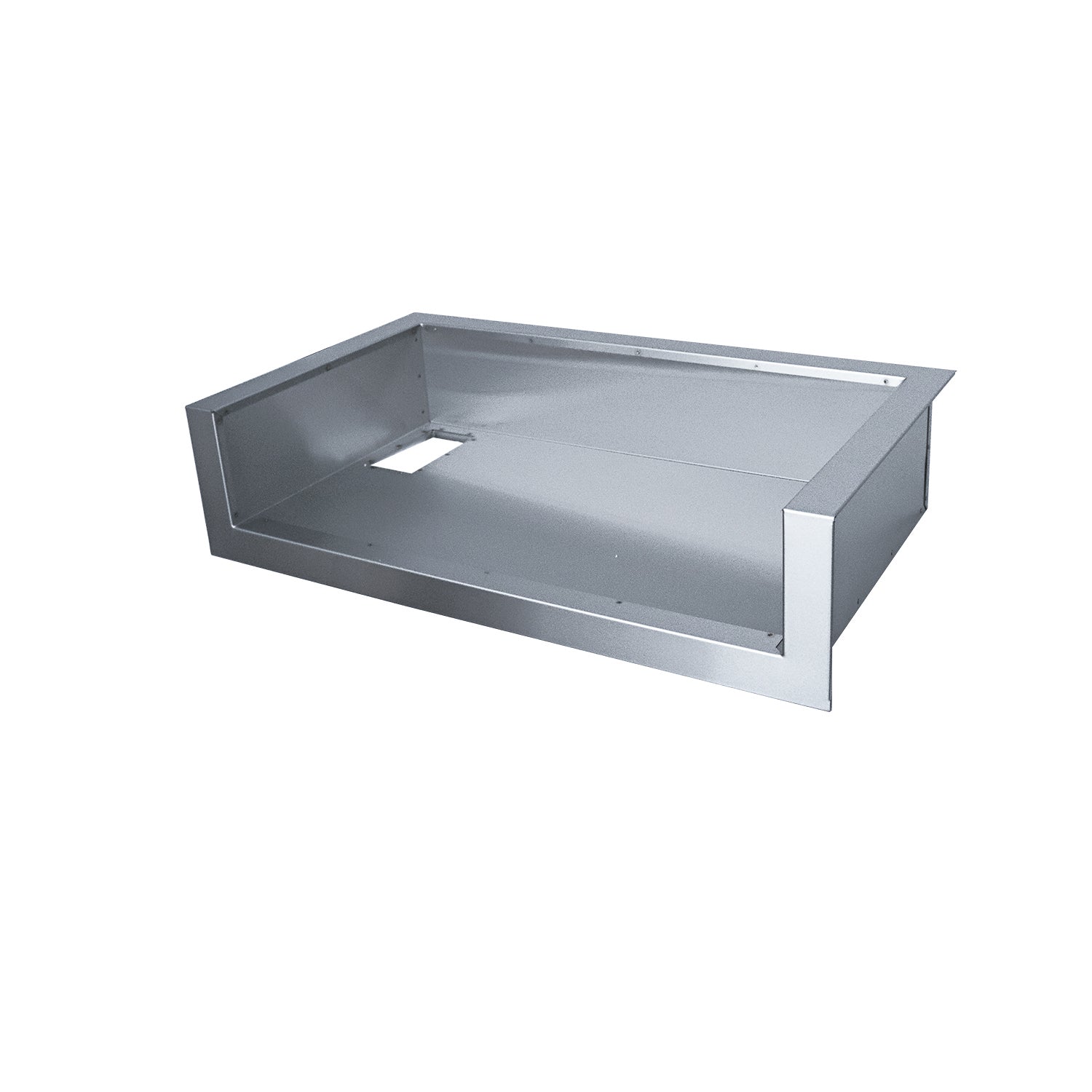

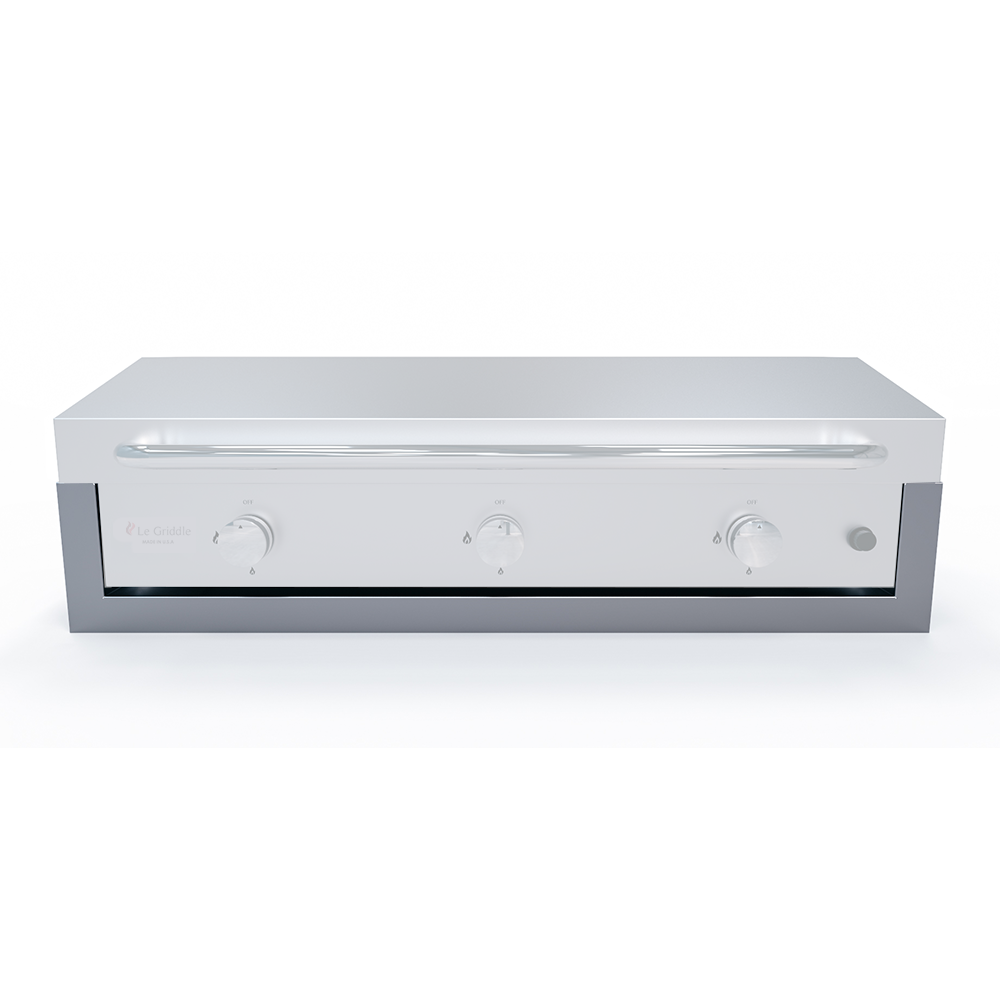

Construction is 304 stainless steel throughout, fabricated in the USA, with the gas connection hole notched out so the supply line reaches the griddle without compromising the box.

The rule that trips people up: the liner and the GFFRAME105 trim kit are alternatives, not a pair — they do not install together. Line a combustible cabinet, or trim a non-combustible one. Browse our insulating liners for the other sizes, and our built-in griddles for the griddles this fits.

Key Features

• Fits GFE105 and OML105 41-inch griddles
• Required for installation in combustible cabinetry
• 304 stainless steel construction throughout
• Gas connection hole notched out for the supply line
• Overall 44-9/16" W x 18-5/8" D x 8-1/16" H
• Internal opening 43" W x 17-1/2" D x 7-1/4" H
• Frame the island around the liner, not the griddle
• Not compatible with the GFFRAME105 trim kit — use one or the other
• Made in the USA

Specifications
