What is an insulating grill liner?

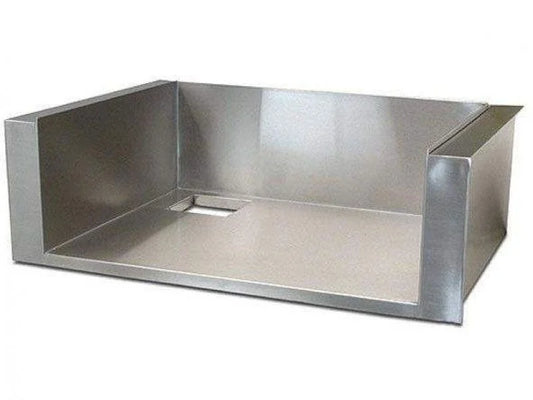

An insulating grill liner, also called an insulated grill jacket, is a stainless steel enclosure installed around a built-in grill. It creates a protective barrier between the hot grill body and the surrounding outdoor kitchen structure.
Do I need an insulating liner for a built-in grill?
You generally need an insulating liner when installing a built-in grill into an outdoor kitchen constructed with combustible materials. This may include wood framing, certain composite materials, or other surfaces that cannot safely withstand the heat produced by the grill.
Do I need an insulating grill liner in a non-combustible island?
Usually not. If the grill is installed entirely within an approved non-combustible structure and the manufacturer's required clearances are maintained, an insulating liner may not be necessary. Always follow the grill manufacturer's installation instructions.
Can I install a built-in grill in a wood-framed outdoor kitchen?
Many built-in grills can be installed in wood-framed islands when the manufacturer's approved insulating liner is used and all required clearances and installation specifications are followed. Never install a grill directly against combustible framing unless the manufacturer specifically permits it.
Are insulating grill liners universal?
No. Most insulating liners are designed for specific grill brands, models, and sizes. A 36-inch liner from one manufacturer should not automatically be assumed to fit another manufacturer's 36-inch grill. Compare, for example, the Alfresco 36" Insulated Jacket AIJ-36, the American Made Grills liner for the Hybrid 36" built-in grill, and the American Outdoor Grills 30-IL-C liner. Each is built around a specific grill body and cannot be swapped for another brand's liner of a similar width.
How do I know which insulating liner fits my grill?

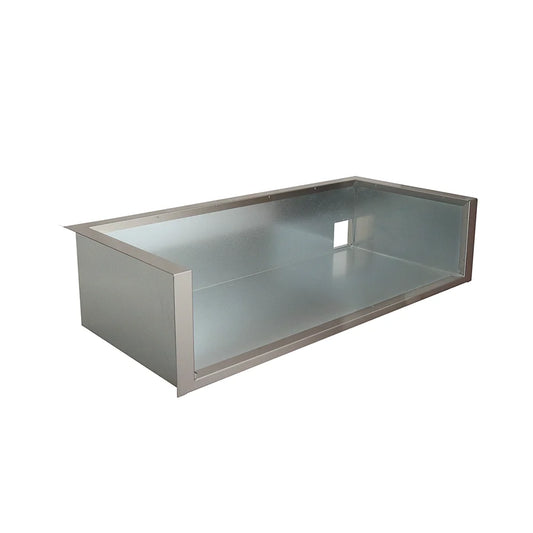

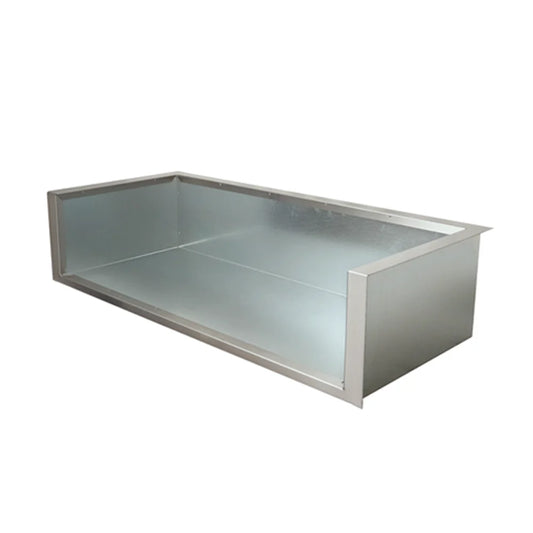

Start with the exact grill manufacturer and model number. Liners are almost always listed by the model they serve — for instance the TrueFlame 32" liner for the TF32 and TFE32, or the RCS liner jacket for the 30" Cutlass Pro RON30B and Cutlass Elite CEG30. You can browse our full range of grill liners by size and brand, and cross-check against our 30" built-in grills and 36" built-in grills. Then check the liner's compatibility information and required cutout dimensions. Using the manufacturer's recommended liner is generally the safest option.
Does an insulating liner change the grill cutout dimensions?
Yes, it often does. Installing an insulated liner can require a larger island opening than installing the grill without one. Use the cutout dimensions specified for the grill-and-liner combination rather than relying solely on the grill's standard cutout dimensions. Larger grills magnify the difference, so plan carefully around a jacket such as the Alfresco 56" Insulated Jacket AIJ-56.
What are insulating grill liners made from?

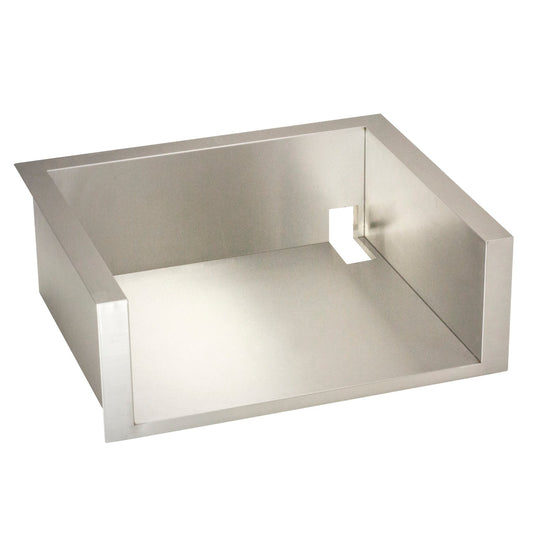

Most quality insulating liners use stainless steel construction with insulating material designed to reduce heat transfer from the grill to the surrounding cabinetry or island structure.
Do only grills need insulating liners?

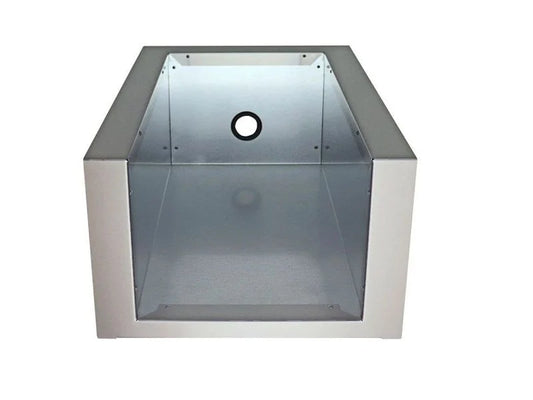

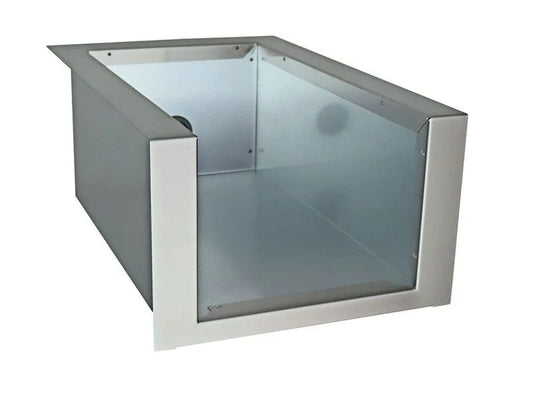

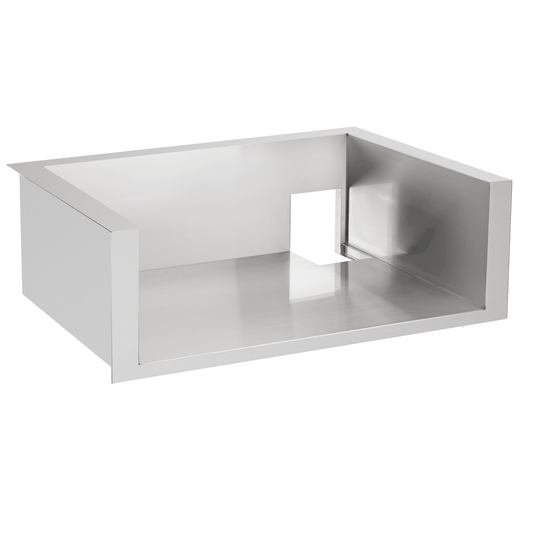

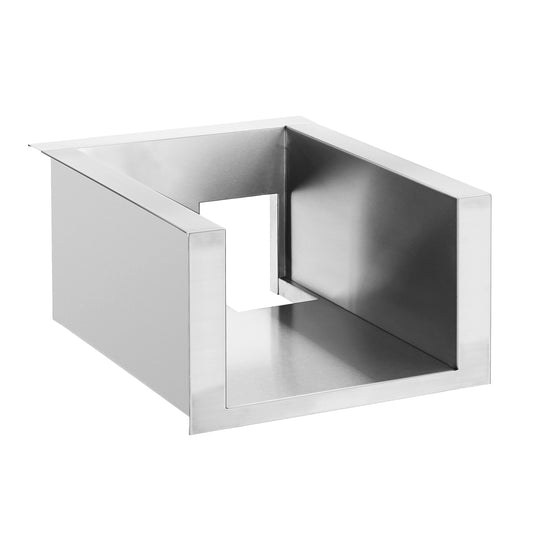

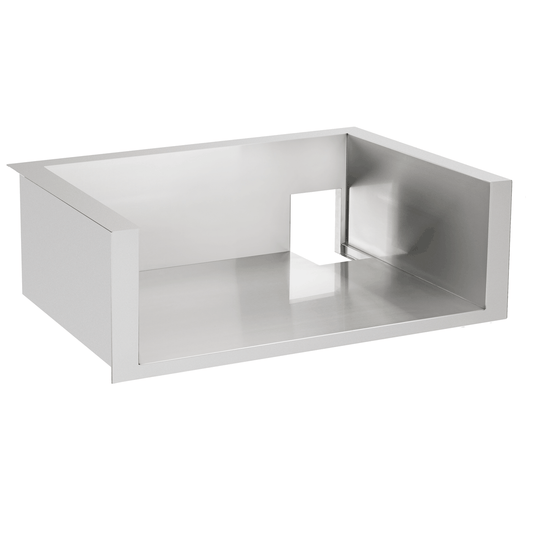

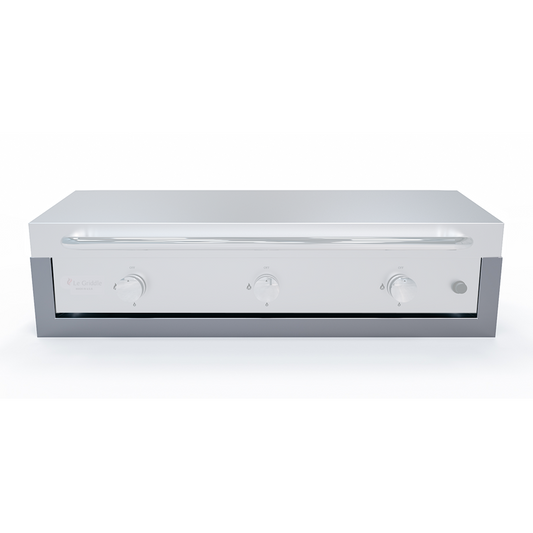

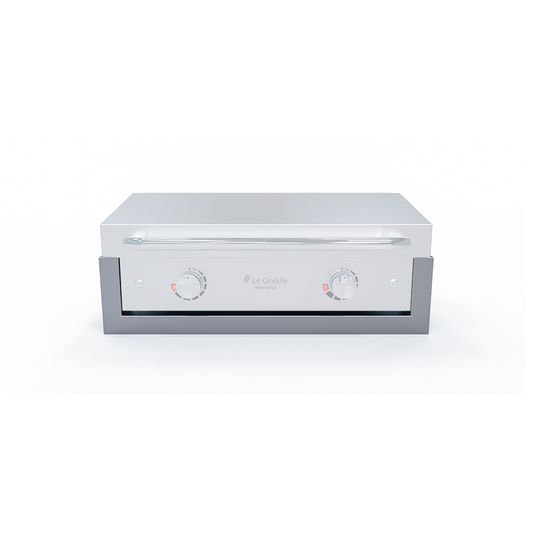

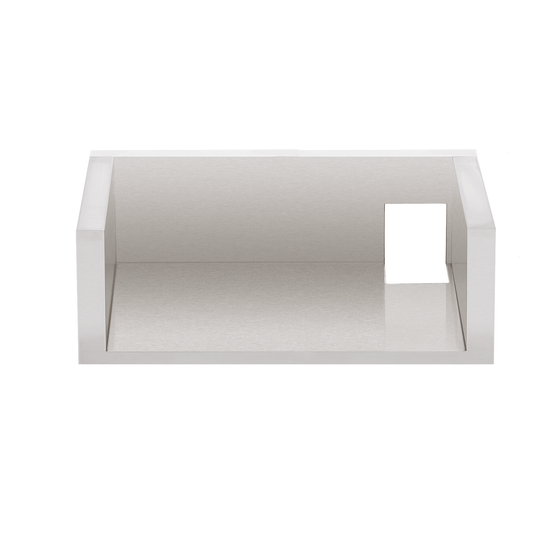

No. Other built-in appliances often need their own jackets when installed in combustible construction. Side burners, power burners, griddles, and pellet grills each have model-specific liners — for example the TrueFlame liner for the TFSB2 double side burner, the American Made Grills liner for the Alturi power burner, the Coyote insulated jacket for the 30" flat top griddle, and the Coyote jacket for the 36" built-in pellet grill. Plan a liner for every heat-producing appliance in the island, not just the grill. Browse side burners and power burners, built-in griddles, and pellet grills to see which models are involved.
Does an insulating liner make a built-in grill safer?
When required and properly installed, an insulating liner helps reduce heat transfer to combustible construction. It is an important part of creating a safe installation, but it does not replace proper ventilation, clearances, gas connections, or adherence to the manufacturer's installation manual.
Can I use an insulating liner from a different brand?

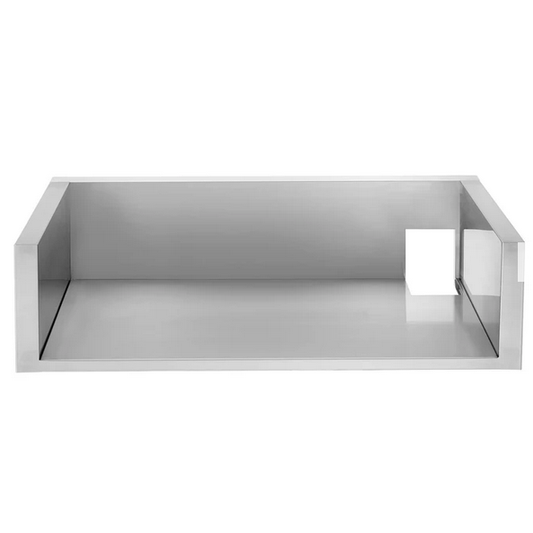

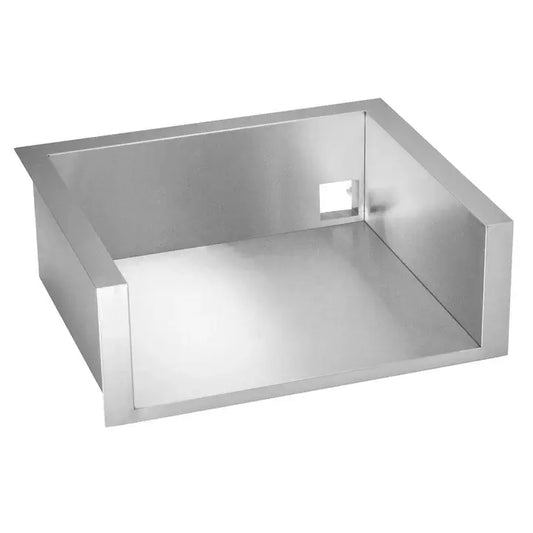

It is generally best to use the liner specifically approved for your grill. Even when dimensions appear similar, differences in ventilation, support points, clearances, and grill construction can make an aftermarket or different-brand liner unsuitable. If you are building around an American Made Grills unit, for example, pair it with the matching jacket such as the liner for the Estate 42" built-in grill.
Does an insulating liner support the weight of the grill?
Some liners are designed to help support and position the grill within the island, but this varies by manufacturer. The outdoor kitchen should still be constructed according to the grill and liner installation specifications.
Do insulating grill liners require ventilation?
The outdoor kitchen may still require ventilation even when an insulating liner is installed. Gas grills, especially propane installations, have specific ventilation requirements that should be followed independently of the insulating liner.
Do propane and natural gas grills use different insulating liners?
Usually, the liner is determined by the grill model and size rather than the fuel type. However, installation and ventilation requirements can differ between propane and natural gas systems, so always verify the manufacturer's specifications for your natural gas or propane grill.
Can an insulating liner protect outdoor kitchen cabinets from heat?
Its primary purpose is to reduce heat transfer between the grill and surrounding construction. However, it should not be treated as a substitute for the clearances or heat protection required by the cabinet or grill manufacturer.
What happens if I install a grill without a required insulating liner?
Installing a grill without a required liner can expose combustible materials to excessive heat and may create a fire hazard. It can also violate the manufacturer's installation requirements and potentially affect warranty coverage.
Should I buy the insulating liner at the same time as my grill?
Yes, particularly if you're building a new outdoor kitchen. Selecting the grill and compatible insulating liner before construction helps your contractor build the island opening to the correct dimensions and avoid costly modifications later. Budget for the liner alongside the grill whether you are shopping mid-tier built-in grills or premium built-in grills.
What information should I give my contractor?
Provide your contractor with the exact grill model, insulating liner model, manufacturer installation manual, and specified cutout dimensions before construction begins. The contractor should work from the manufacturer's current specifications rather than dimensions based only on the grill's advertised width.
Can Northwoods Grills help me find the correct insulating liner?
Yes. If you're unsure which insulating liner fits your built-in grill, please contact Northwoods Grills with the grill brand and model number. A product expert can help identify a compatible liner and the appropriate specifications for your outdoor kitchen project.
