Trim Kit for GFE105 + OML105P / OML105C

Le Griddle Stainless Trim Kit for 105 Series Griddles — GFFRAME105

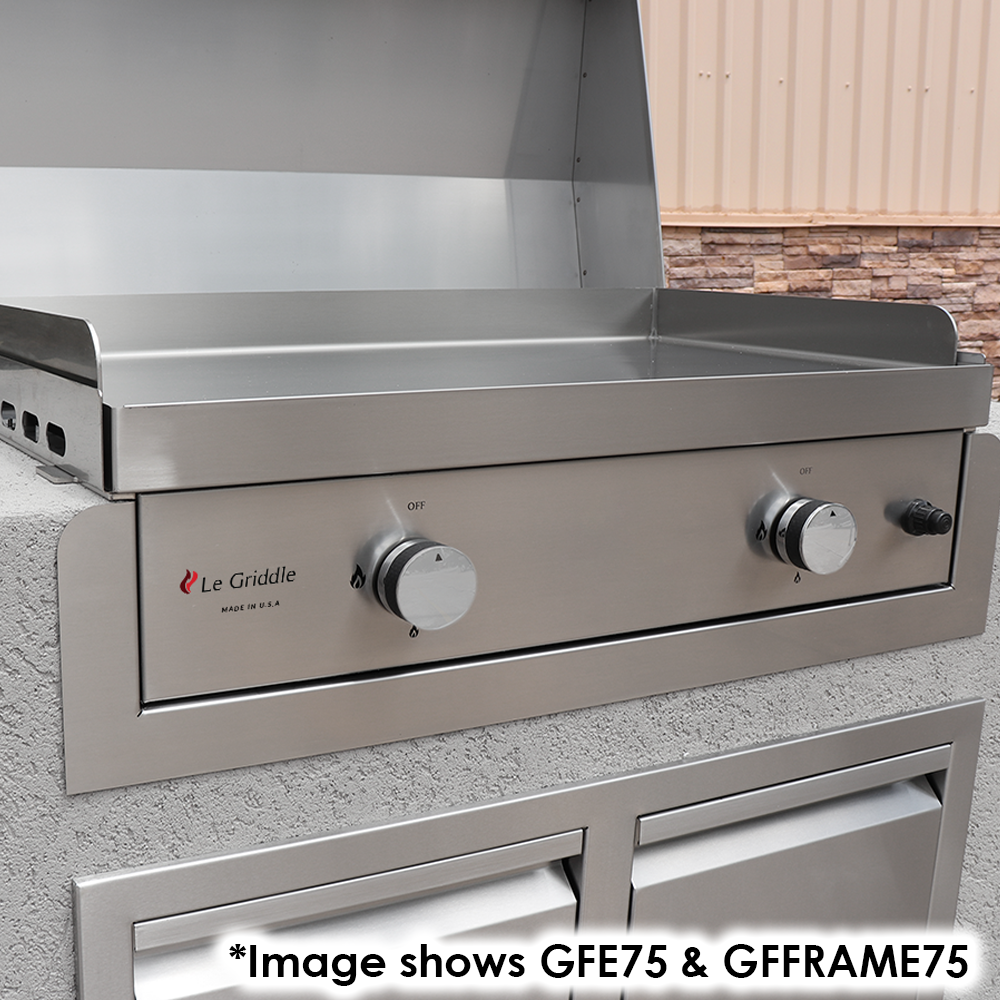

The GFFRAME105 finishes the front of a 41-inch built-in Le Griddle griddle. It covers the whole 105 Series — GFE105, OML105P3, OML105P6, OML105C3 and OML105C6 — so the part is the same across Pro and Commercial builds.

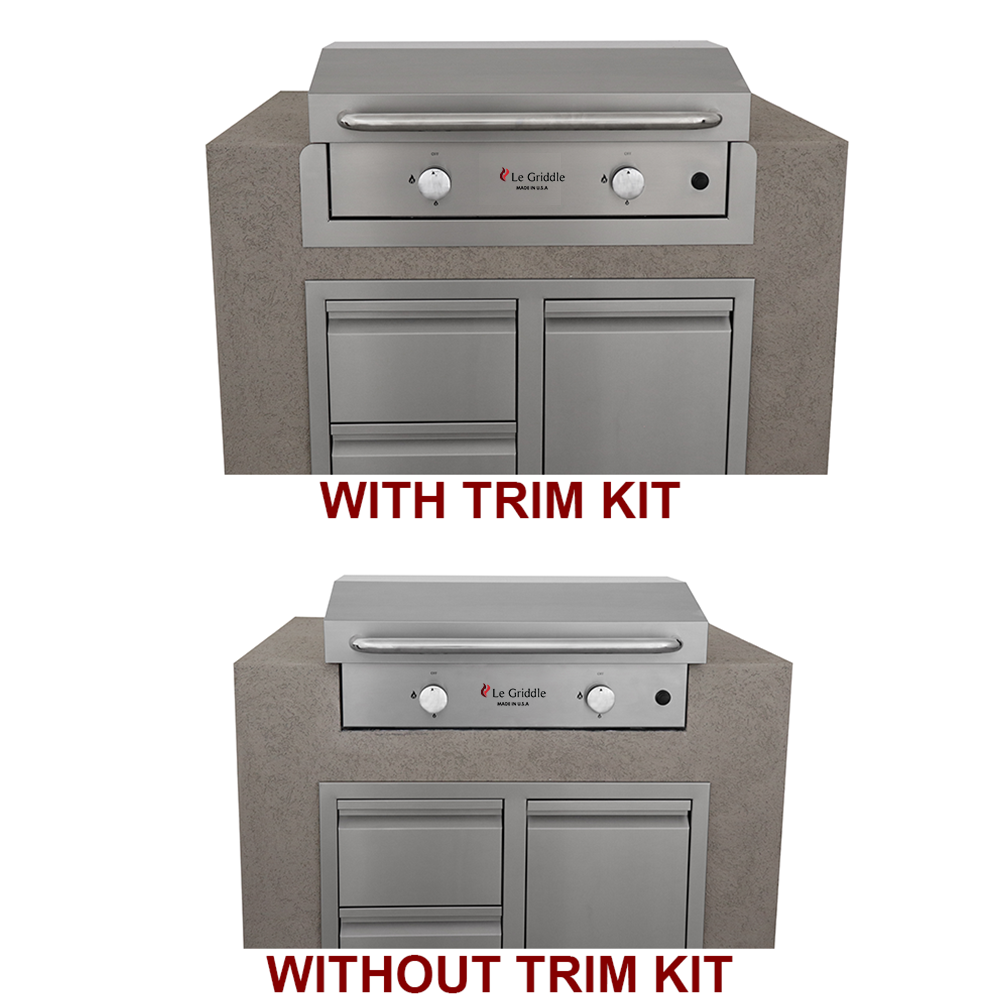

At nearly four feet of span the frame is doing more work than it looks. A long unfinished opening is where an outdoor kitchen visibly stops being custom: the gap runs the full width, it is at eye level when you walk up to the island, and it catches everything. The frame turns that into one continuous stainless line.

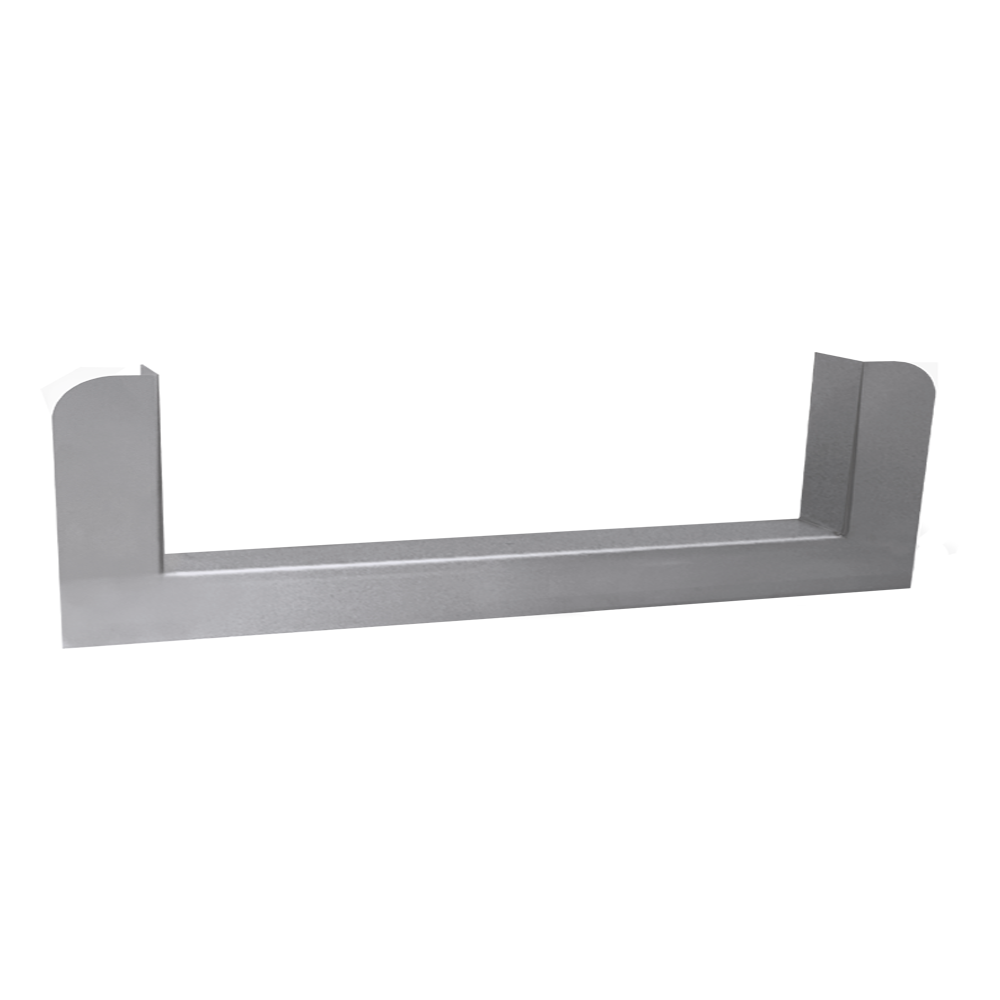

It is 304 stainless steel, made in the USA, matched to the griddle finish. Overall it measures 44-5/16" wide by 7-1/2" high by 2" deep, and it finishes a cut-out of 40-1/2" wide by 5-9/16" high — the same 40-1/2" opening every 105 Series griddle uses, so the trim decision does not change the stonework.

Confirm the cut-out with your fabricator before anything is cut; over a 40-inch span a small error is a visible one. And remember the trim kit and the GFLINER105 liner do not install together — they are alternatives, so line a combustible cabinet or trim a non-combustible one. Our insulating liners cover the liner side; the griddles are in our built-in griddles.

Key Features

• Fits GFE105, OML105P3, OML105P6, OML105C3 and OML105C6
• 304 stainless steel, matched to the griddle finish
• Made in the USA
• Overall 44-5/16" W x 7-1/2" H x 2" D
• Cut-out 40-1/2" W x 5-9/16" H — the standard 105 Series opening
• Turns a four-foot rough opening into one continuous stainless line
• Not compatible with the GFLINER105 liner — for non-combustible cabinets
• Trim kit only — griddle and lid sold separately
