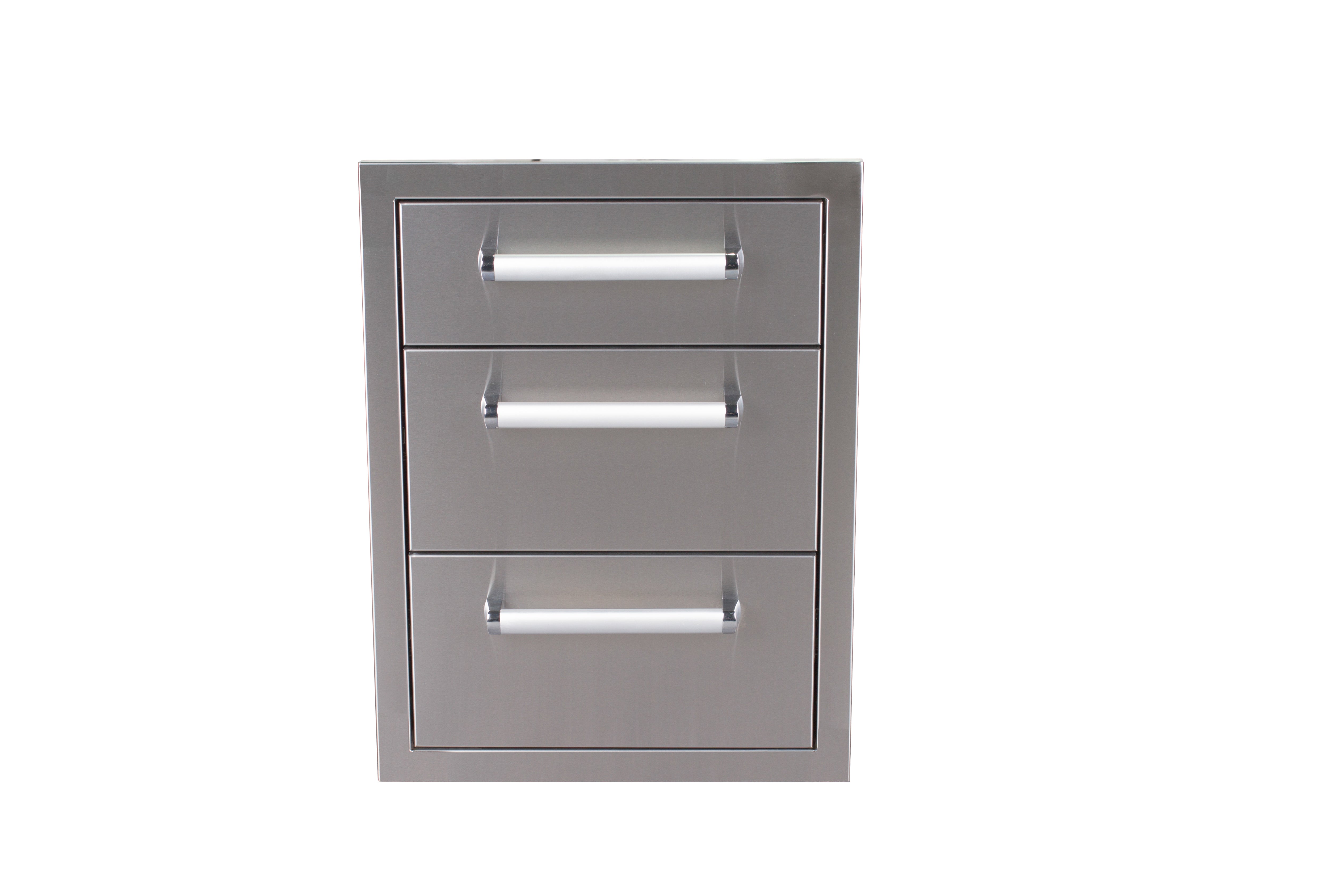

Bonfire Vertical Triple Drawer 16.5" x 22" – CBATD
A three-drawer stainless storage stack for outdoor kitchen islands. Each drawer runs on damping slides and self-closes, so utensils, thermometers, gloves and grilling tools stay organised and sealed against the weather within arm's reach of the grill.
Specifications
| Model | CBATD |
|---|---|
| Overall Dimensions | 16.5" (W) x 22" (H) |
| Cutout Dimensions | 14.43" (W) x 19.5" (D) x 19.37" (H) |
| Material | 304 Stainless Steel |
| Drawers | 3, vertical stack |
| Slides | Damping, self-closing |
| Edge Style | Masonry edge |
| Orientation | Vertical |
| Mounting | Built-in / under-grill |
Features
- 304-grade stainless steel throughout, rated for permanent outdoor installation.
- Self-closing drawers on damping slides close quietly and stay shut in wind.
- Three separate drawers let you split tools, linens and small accessories.
- Masonry edge sits flush against stone, tile or stucco island facing.
- Vertical footprint fits narrow island runs where a horizontal drawer set won't.
Compatible Grills
Designed to install directly beneath the Bonfire Prime 500 built-in grill.
Installation Notes
Requires a finished island opening of 14.43" wide by 19.37" high, with at least 19.5" of depth behind the face. Cut the rough opening to the cutout dimension rather than the overall dimension — the masonry edge overlaps the opening on all four sides.
Product Documents
Bonfire 16.5" x 22" Vertical Triple Drawer CBATD - 304 Stainless Steel
Frequently Asked Questions
What cutout does the CBATD need?
14.43" wide by 19.37" high, with at least 19.5" of depth behind the face. All three numbers matter on a drawer unit, because the drawer boxes run the full depth.
How many drawers is it, and what fits in them?
Three, stacked vertically in one frame. Bonfire aims them at utensils, thermometers, gloves and grilling tools, so each drawer takes one category rather than everything going in a single bin.
Do the drawers close on their own?
Yes. They run on damping slides and self-close, which means they pull shut quietly and stay shut in wind rather than easing open on an exposed island.
Which grill is it built to sit under?
The Bonfire Prime 500 built-in grill. It is designed to install directly beneath it in the island run.
The unit is 16.5" x 22". Why is the cutout smaller?
The masonry edge overlaps the opening on all four sides, so the face is larger than the hole by design. Cut the rough opening to 14.43" x 19.37" and let the edge cover the cut line.
Will it work in a narrow island run?
That is what the vertical layout is for. Stacking three drawers into a 14.43" wide opening fits runs where a horizontal drawer set has nowhere to go.
Can it stay outside permanently?
It is 304-grade stainless steel throughout and rated for permanent outdoor installation, which is the difference between an outdoor drawer stack and an indoor cabinet drawer.
How does it compare to the trash drawer in the same size?
The trash drawer CBATC shares the 16.5" x 22" face and a near-identical cutout, but gives you a single drawer holding two buckets instead of three storage drawers.
Many island runs use one of each. Build each opening to the cutout listed for the specific unit going in it.
