Sunstone 20" Appliance Base Cabinet SAC20CSD - Left or Right Swing Door, 304 Stainless Steel
- $1,574.00
- $1,574.00
- Unit price
- per
Subtotal:
$1,574.00
Fast Delivery
Ships from US Warehouse with average of 5 business day delivery time
Free Shipping
No cost to customer with tracking numbers provided all orders
No Credit Card Fees
Price does not increase in cart
Free Returns
Purchase with confidence
FAQs
Click the tab below to view some of the most common customer FAQs. Unsure? Call us 843-212-7209
Warranty Backed
Protection after purchase. Varies by vendor see tab below or warranty page for information.
|

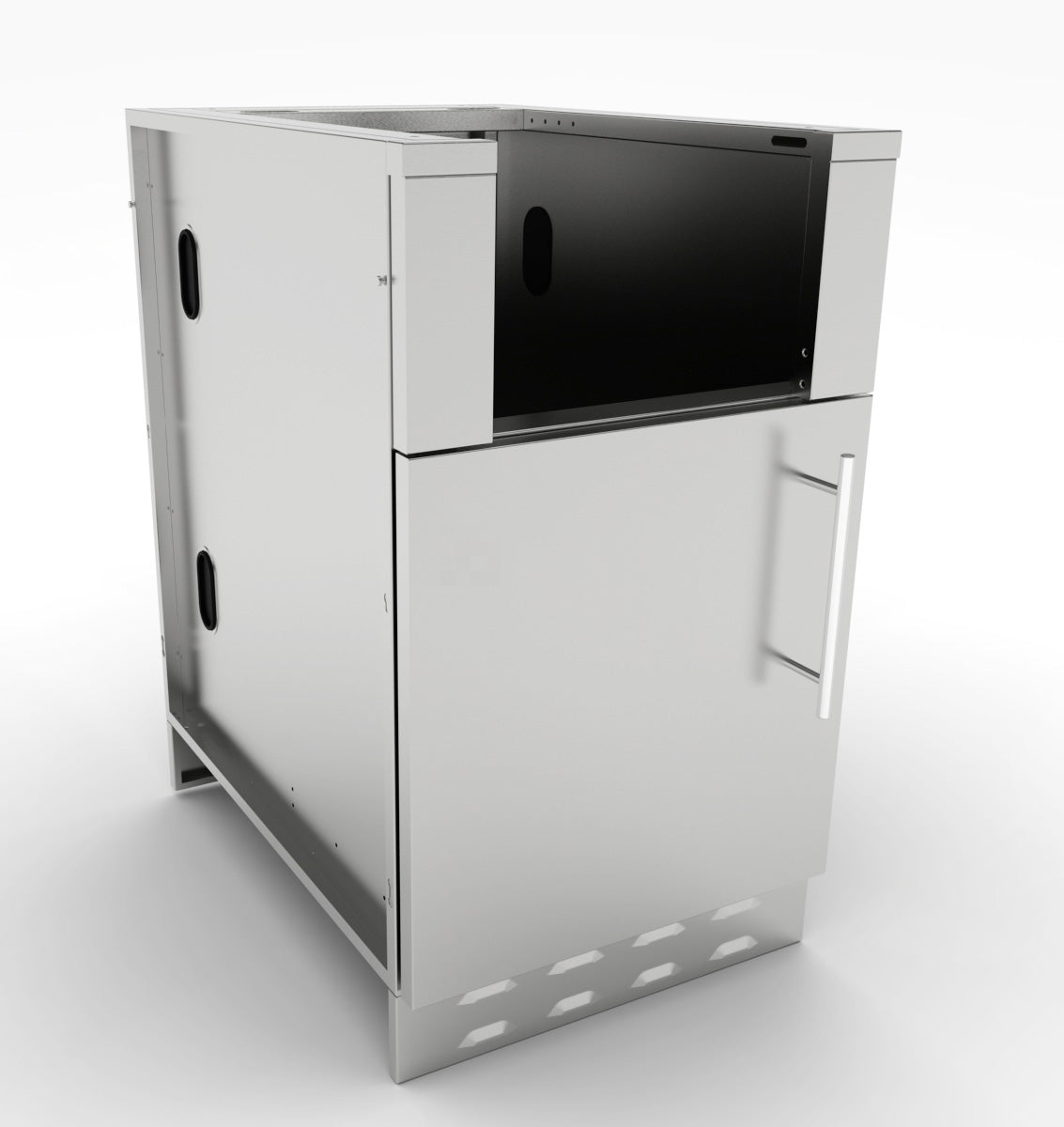

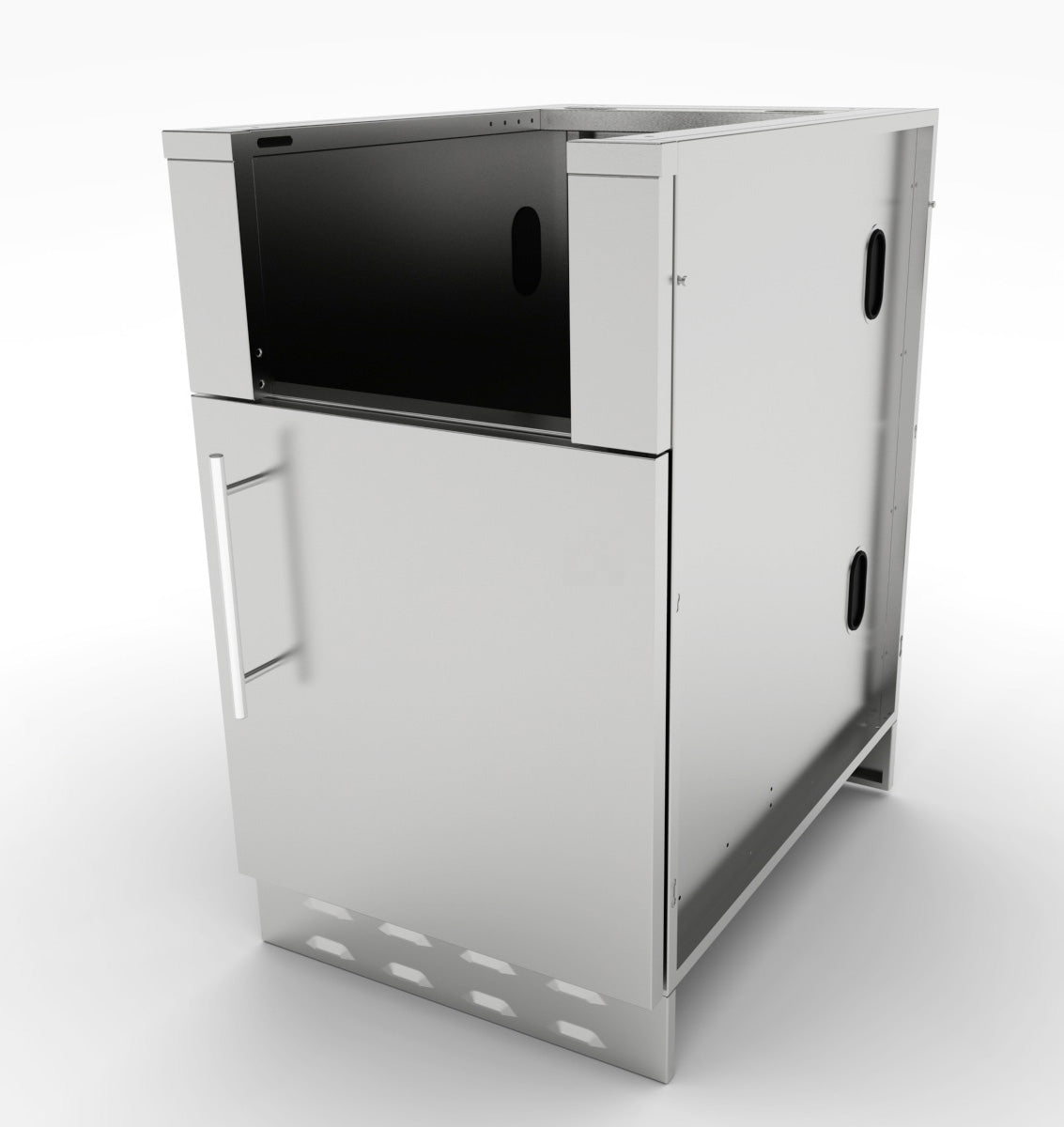

The 20 In. Sunstone Appliance Base Cabinet is uniquely designed to receive multiple Types of either Double Slide-In Side Burners or Bar Stations of many industry Brand Models right out of the box with easy installation. The cabinet comes standard with a Left-Swing Side Door Enclosure for a Trash Bin or Propane Tank Storage. There is a Bottom Utility Access Port as well, located behind the bottom a Slide Out Tray. The cabinet comes Fully Assembled, only requiring to fasten on the four included Peg-Legs, screw in place each 304 SS Rod Handles and mount the Front and Back Kick-Plates. This Cabinet makes use of a “TRIM-KIT” that is installed on the front face of cabinet, which adapts the cabinet to fit your preferred appliance, and is compatible with “CUT-OUT” Sizes between 9-3/4 In. to 14-1/2 In. Width by 8 In. to 10-1/4 In. Height with counter at 3/4" Height with Filler Rail installed or removed. Additional Height can be adjusted by Removing Bottom Filler Rail or by adding a Thicker Counter or Backer Board. Please Specify the Correct “TRIM-KIT” to be included with cabinet to fit your product, if your Side Burner or Bar Station is any of our Models we will automatically include the correct Trim-Kit. Please refer to the Cabinets Specification Sheet for more information, see the second page showing the various insert sleeve dimensions this refers to your products “Cut-Out” Dimension – match this up to the correct “Trim-Kit” and specify this piece on your order |
|||
| • Lifetime Structure Warranty | • 304 Stainless Steel Structure | ||
| • 304 SS Rod Handles | • Front Vented Kick-Plate | ||
| • Rear Solid Kick-Plate | • Replaceable Face Panel | ||
| • Easy Pin-Lock Installation | • Removable Counter Rail | ||
| • Covered Side Wall Access Ports | • 4 Adjustable Peg-Legs | ||
| • Optional Wheel Casters | |||
|
Separately purchase the Side Cabinet End Panel & End Kick-Plate Item No. SCC25KP, & SCC27EP |
|||
|
||||||||||||||||
| Material Specifications: 304 Stainless Steel entire structure, 18 Gauge for Door Panel , 18 Gauge for Cabinet Box, 18 Gauge for Shelf, Handles are made of Solid 304 Stainless Steel Bar |
Sunstone 20" Appliance Base Cabinet SAC20CSD - Left or Right Swing Door, 304 Stainless Steel
Frequently Asked Questions
What appliance cut-out sizes does the SAC20CSD accept?
Cut-outs from 9-3/4" to 14-1/2" in width and 8" to 10-1/4" in height, measured with a 3/4" counter and with the filler rail either installed or removed.
Measure the cut-out dimension your side burner or bar station calls for, not its overall size, and check it against that range before you order.
What is the trim kit and do I have to choose one?
The trim kit mounts on the front face of the cabinet and adapts the opening to your specific appliance. You need to specify the correct trim kit on your order, matching your product's cut-out dimension to the insert sleeve dimensions shown on the second page of the cabinet's specification sheet.
What can I install in it?
Double slide-in side burners and bar stations from a range of brands. The description names the 2CSB double side burner and the B-CS14 Cocktail Pro as inserts it is set up for. Other burners can work if their cut-out falls in the accepted range.
Is there storage underneath the appliance?

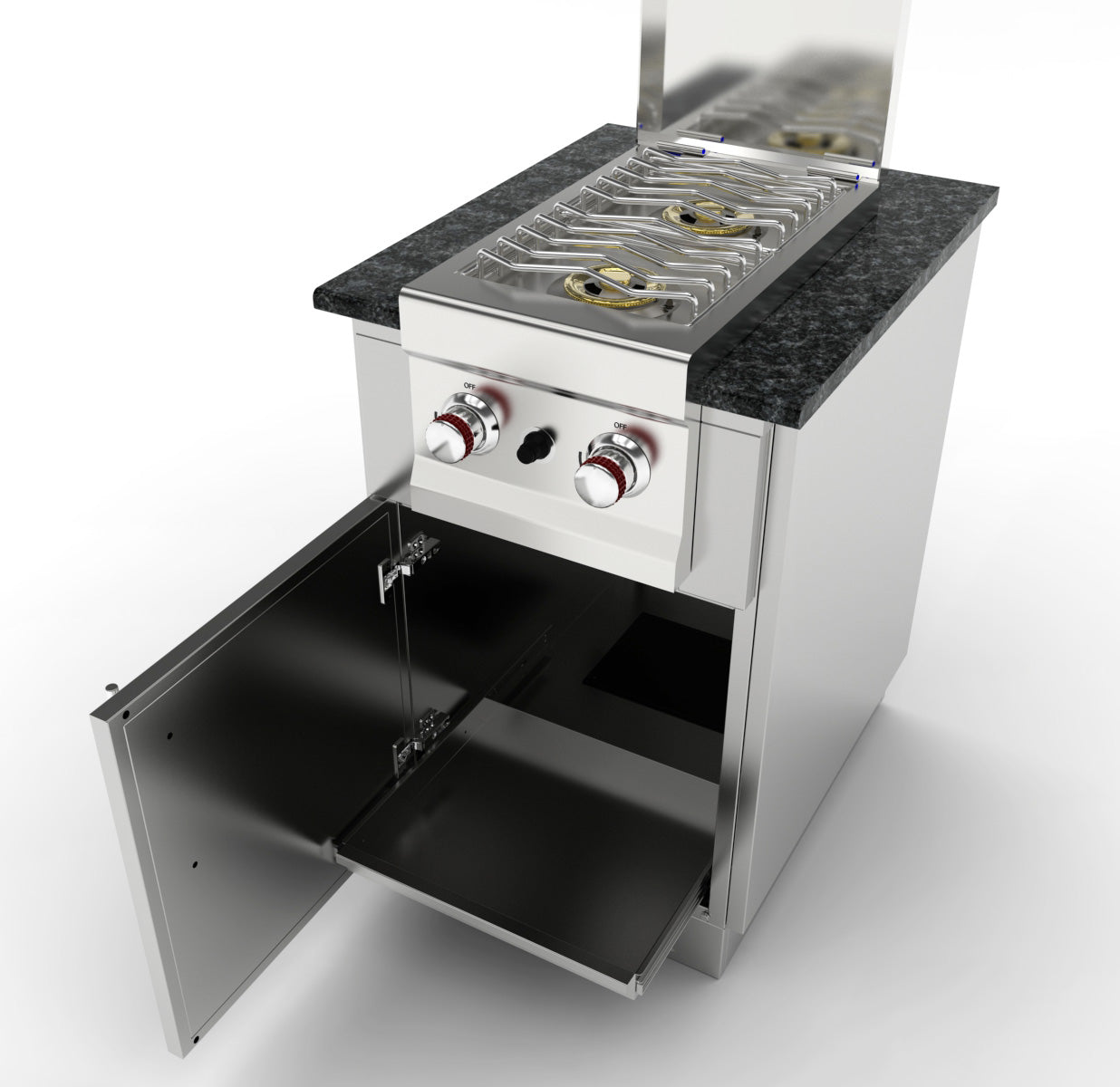

Yes. A left-swing side door encloses space for a trash bin or a propane tank. The front kick-plate is vented and the rear kick-plate is solid.
What if my appliance needs more height than the opening gives?
You can gain height by removing the bottom filler rail, or by using a thicker counter or backer board above the cabinet.
What are the cabinet dimensions?
20"W x 28-1/4"D x 34-1/2"H with legs, and 30-1/2"H without. The legs adjust to a maximum height of 36".
How do I run gas or electrical to it?

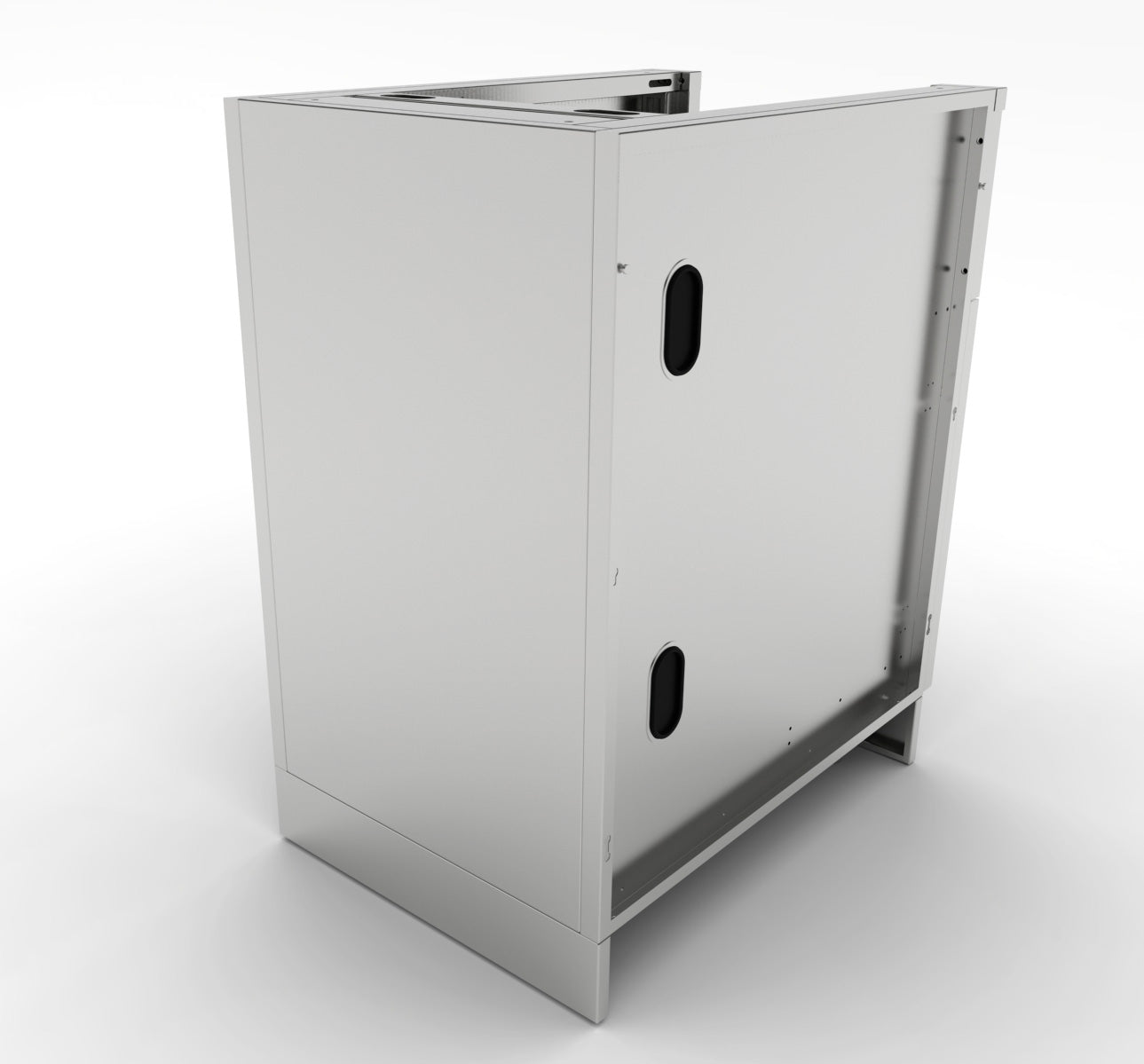

There is a bottom utility access port behind the slide-out tray, plus covered side wall access ports for lines that pass between cabinets.
How much does it weigh?
71.5 lbs net, packaged at 23"W x 31"L x 33"H and 81 lbs.
