Sunstone · Grill Door & Drawer Combo

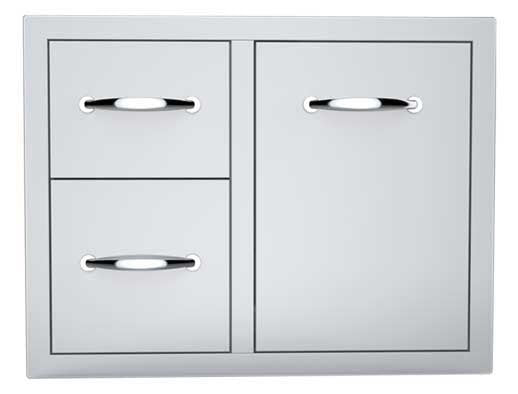

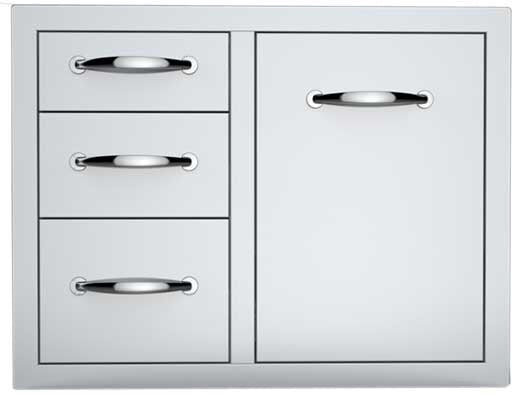

Sunstone Classic Series 30" LP Tank Tray Combo - Double A-LPCDD30 or Triple A-LPCTD30 Drawer, Flush Style
- $1,035.00
- $1,035.00
- Unit price
- per
Free shipping on all orders
Add to your order optional
Subtotal:
$1,035.00
Ask Ryan about this grill
Fit, fuel, install or delivery. Get a straight answer before you order.
- Manufacturer warranty on every grill
- 30-day returns on eligible items, 20% restocking fee. Return policy
- 0% credit card fees
Confirm your cutout 27.5" W × 20.5" H × 23.25" D
Specifications
| Brand | Sunstone |
|---|---|
| Cutout (W × D × H) | 27.5" × 23.25" × 20.5" |
| Overall (W × D × H) | 30.0" × 23.0" × 23.0" |
Sunstone Classic Series 30" LP Tank Tray Combo - Double A-LPCDD30 or Triple A-LPCTD30 Drawer, Flush Style FAQs
Will A-LPCDD30 fit my existing outdoor kitchen opening?
Assembly dimensions (W × H × D): 30 × 23 × 23 inches. Required opening (W × H × D): 27.5 × 20.5 × 23.25 inches. Manufacturer comparison table gives these dimensions for the Classic A-LPCDD30 and A-LPCTD30 models. Choose double or triple utility drawers separately from handle style. This is an insert, not a full-height base cabinet. LP/trash use requires the correct bag ring or tank configuration. Request a fit check before ordering or construction.
What bins or trash bag supports come with A-LPCDD30?
Confirm the selected double/triple-drawer model's trash bag ring and bin compatibility. Capacity alone does not establish compatibility: check rim width, body width, height, depth and the path for lifting the bin out.
Which alternatives should I compare with A-LPCDD30?
Compare TF-DC2-33LP-A and CBATC and the full trash and recycling range. These are shopping alternatives, not guaranteed replacements for the same opening. Compare the cutout, full-extension space, bin inclusion, finish and installation type.
What does my installer need before fitting A-LPCDD30?
Review the manufacturer specification or installation drawing for the exact SKU and finish. Confirm the opening, frame overlap, finish thickness, rear support, fasteners, handle projection and full extension. Any LP installation must follow the model's ventilation and fuel-storage requirements. Send Ryan the measurements and photos for a fit check.
What is the difference between the A-LPCDD30 and the A-LPCTD30?
Drawer count, and that is reflected in the weight: the double drawer combo is 62 pounds and the triple drawer combo is 69 pounds.
Both share the same 30 inch wide by 23 inch deep by 23 inch high body and the same cutout, so you can pick either configuration after the island is already framed.
Will a full-size propane tank fit in the pull-out side?
Use an LP tank only when the exact model's manufacturer permits it and specifies the required tank size, ventilation, restraint and clearances. Trash and LP normally describe alternative uses. Do not assume that a tank and bin can share one compartment. Ask Ryan to check the proposed installation.
What grill sizes does it work alongside?
Sunstone lists it as complementing BBQ grills between 28 and 36 inches.
How is the interior protected from weather?
Follow the manufacturer's outdoor installation and care instructions. Stainless steel resists corrosion but needs regular cleaning, especially around salt, pool chemicals and food spills. Do not assume the enclosure is waterproof, pest-proof or odor-tight unless that performance is explicitly specified.
Can I still get at the inside of my island after it is installed?

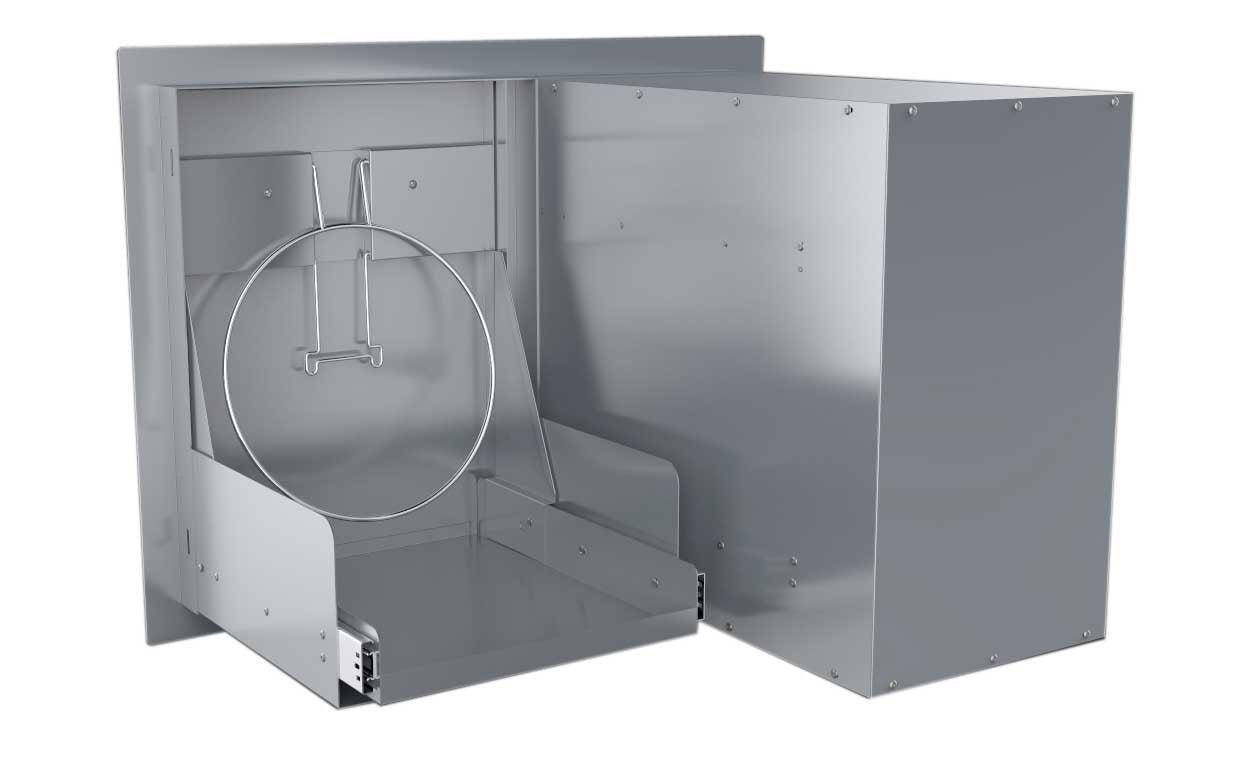

Pull the slide-out tray drawer out entirely and the interior of the island opens up for full access.
Worth knowing if plumbing or a gas manifold sits behind this section of the run.
Sunstone Classic Series 30" LP Tank Tray Combo - Double A-LPCDD30 or Triple A-LPCTD30 Drawer, Flush Style
A-LPCDD30 provides utility drawer and trash/lp combination for an outdoor kitchen cleanup area. Choose it by the measured opening, storage layout and bin requirements below.
Ask Ryan to check the fit of A-LPCDD30. Share the existing model, finished opening, photos and bin dimensions before ordering.

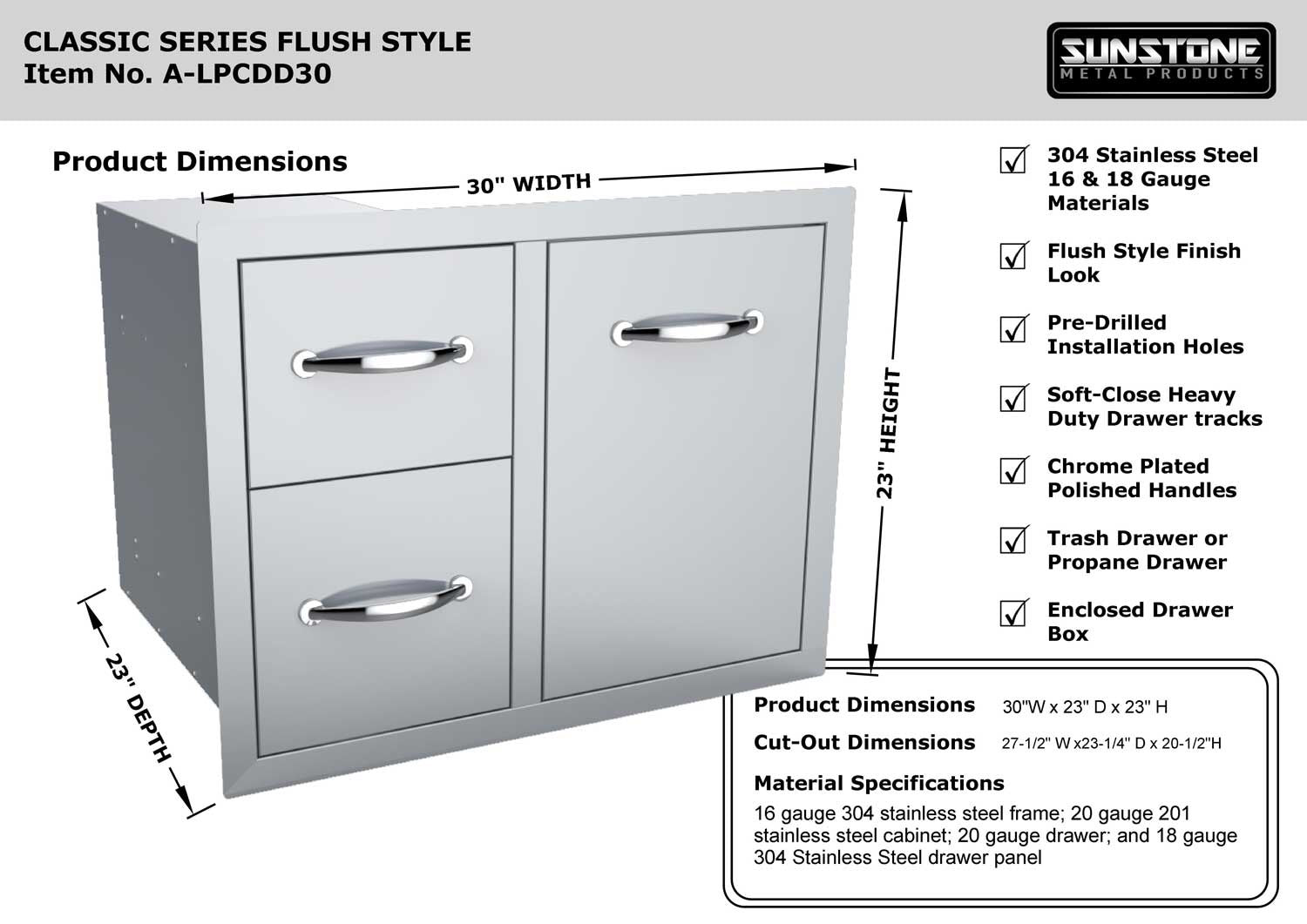

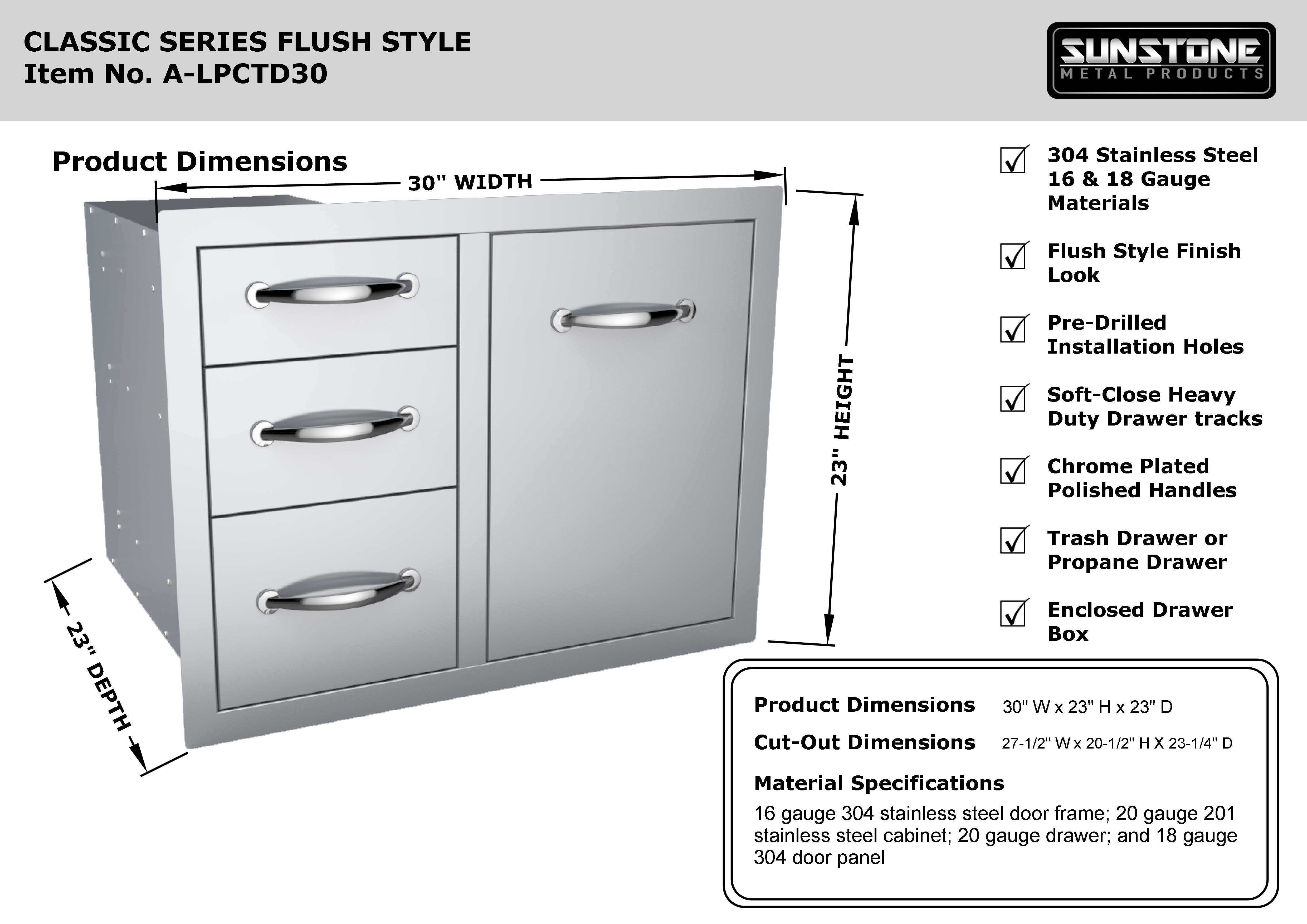

Dimensions and installation
All measurements are inches. Product dimensions and required cutouts are different; check projection and component notes below.
| Measurement | Product / assembly | Required opening / cutout |
|---|---|---|
| Width | 30 in | 27.5 in |
| Height | 23 in | 20.5 in |
| Depth | 23 in | 23.25 in |
Manufacturer comparison table gives these dimensions for the Classic A-LPCDD30 and A-LPCTD30 models. Choose double or triple utility drawers separately from handle style. This is an insert, not a full-height base cabinet. LP/trash use requires the correct bag ring or tank configuration.

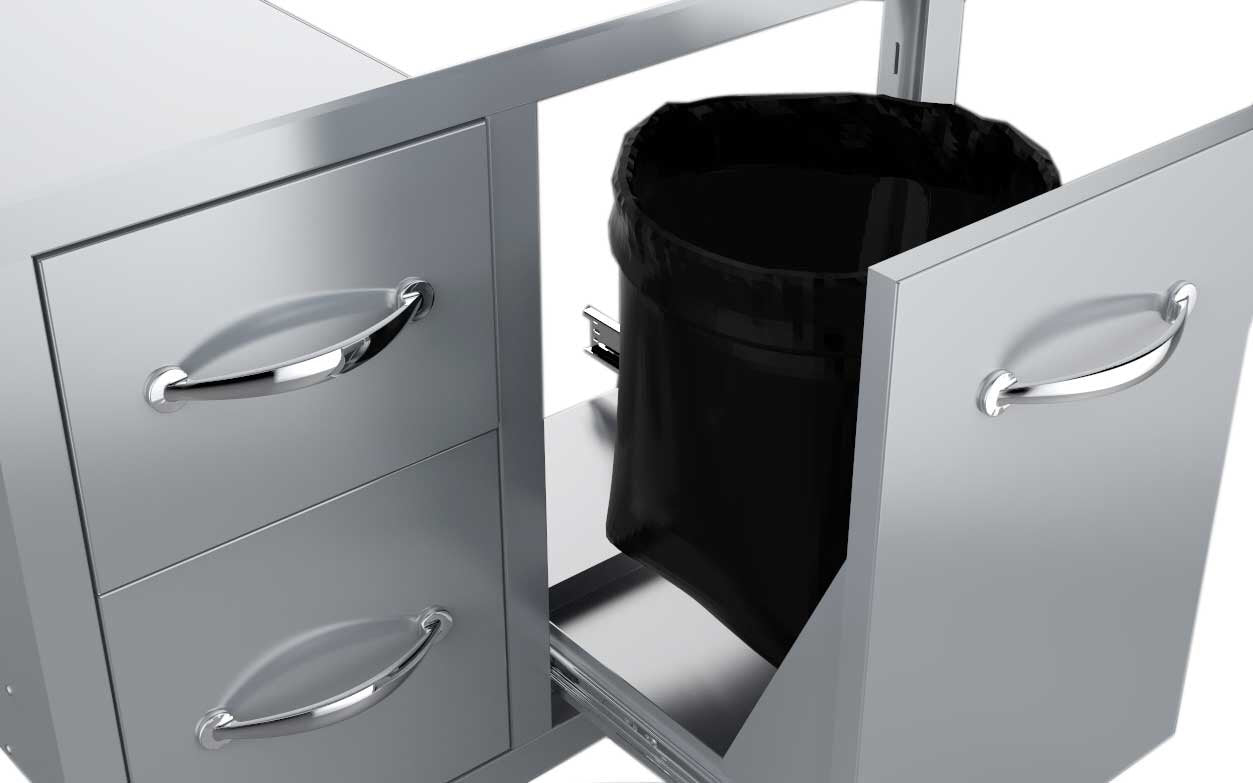

Bins and configuration
Confirm the selected double/triple-drawer model's trash bag ring and bin compatibility.
Check the manufacturer's listed stainless construction and finish for the selected SKU.

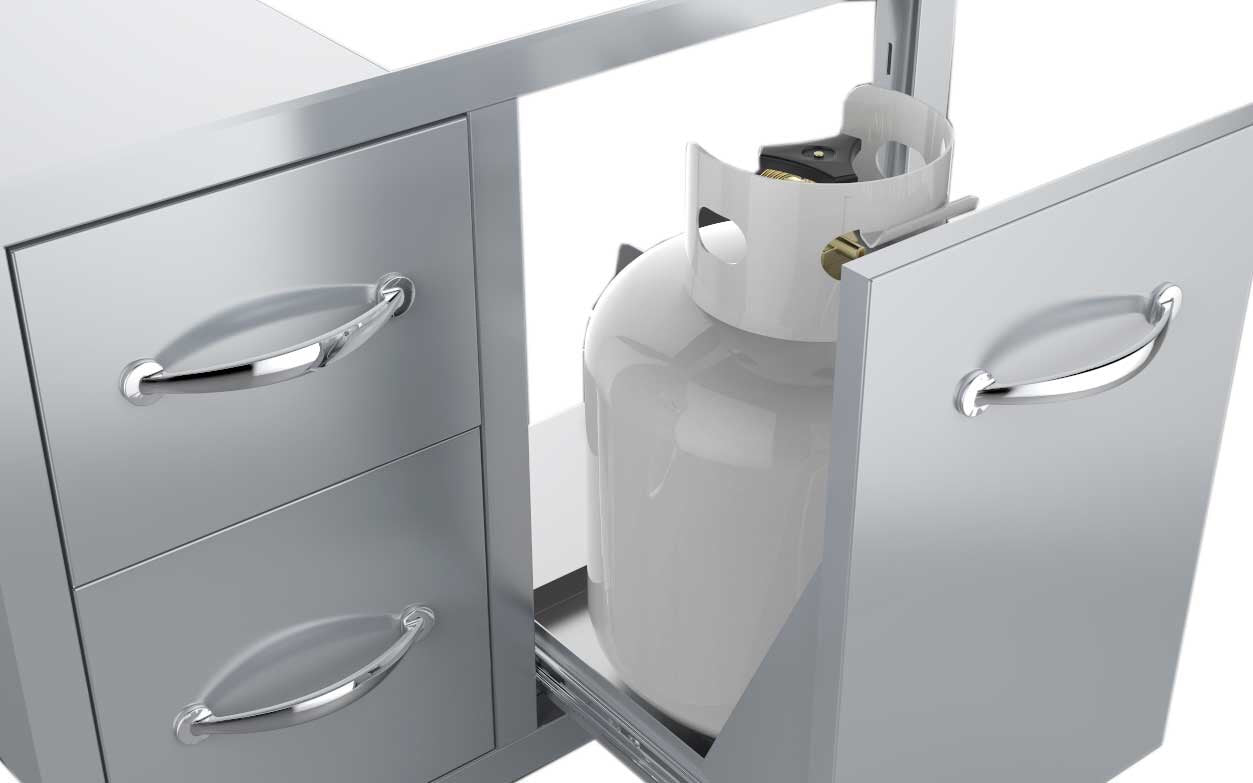

Trash or propane configuration
Use an LP tank only when the exact model's manufacturer permits it and specifies the required tank size, ventilation, restraint and clearances. Trash and LP normally describe alternative uses. Do not assume that a tank and bin can share one compartment. Ask Ryan to check the proposed installation.
Manufacturer specifications and installation information. Have the exact supplied unit and drawing confirmed before cutting the island.
Compare your options
Compare TF-DC2-33LP-A and CBATC and the full trash and recycling range. These are shopping alternatives, not guaranteed replacements for the same opening. Compare the cutout, full-extension space, bin inclusion, finish and installation type.
Browse Wide Outdoor Trash Drawers & Combo Units, Outdoor Trash or Propane Storage Drawers, or read the outdoor trash drawer and cabinet buying guide and trash storage FAQs.
For stock and delivery timing to your ZIP code, send Ryan a fit request.
Shop This Collection
Grill Door & Drawer Combo
Sunstone Classic Series 30" LP Tank Tray Combo - Double A-LPCDD30 or Triple A-LPCTD30 Drawer, Flush Style
Frequently Asked Questions
Will A-LPCDD30 fit my existing outdoor kitchen opening?
Assembly dimensions (W × H × D): 30 × 23 × 23 inches. Required opening (W × H × D): 27.5 × 20.5 × 23.25 inches. Manufacturer comparison table gives these dimensions for the Classic A-LPCDD30 and A-LPCTD30 models. Choose double or triple utility drawers separately from handle style. This is an insert, not a full-height base cabinet. LP/trash use requires the correct bag ring or tank configuration. Request a fit check before ordering or construction.
What bins or trash bag supports come with A-LPCDD30?
Confirm the selected double/triple-drawer model's trash bag ring and bin compatibility. Capacity alone does not establish compatibility: check rim width, body width, height, depth and the path for lifting the bin out.
Which alternatives should I compare with A-LPCDD30?
Compare TF-DC2-33LP-A and CBATC and the full trash and recycling range. These are shopping alternatives, not guaranteed replacements for the same opening. Compare the cutout, full-extension space, bin inclusion, finish and installation type.
What does my installer need before fitting A-LPCDD30?
Review the manufacturer specification or installation drawing for the exact SKU and finish. Confirm the opening, frame overlap, finish thickness, rear support, fasteners, handle projection and full extension. Any LP installation must follow the model's ventilation and fuel-storage requirements. Send Ryan the measurements and photos for a fit check.
What is the difference between the A-LPCDD30 and the A-LPCTD30?
Drawer count, and that is reflected in the weight: the double drawer combo is 62 pounds and the triple drawer combo is 69 pounds.
Both share the same 30 inch wide by 23 inch deep by 23 inch high body and the same cutout, so you can pick either configuration after the island is already framed.
Will a full-size propane tank fit in the pull-out side?
Use an LP tank only when the exact model's manufacturer permits it and specifies the required tank size, ventilation, restraint and clearances. Trash and LP normally describe alternative uses. Do not assume that a tank and bin can share one compartment. Ask Ryan to check the proposed installation.
What grill sizes does it work alongside?
Sunstone lists it as complementing BBQ grills between 28 and 36 inches.
How is the interior protected from weather?
Follow the manufacturer's outdoor installation and care instructions. Stainless steel resists corrosion but needs regular cleaning, especially around salt, pool chemicals and food spills. Do not assume the enclosure is waterproof, pest-proof or odor-tight unless that performance is explicitly specified.
Can I still get at the inside of my island after it is installed?
Pull the slide-out tray drawer out entirely and the interior of the island opens up for full access.
Worth knowing if plumbing or a gas manifold sits behind this section of the run.
