American Made Grills · Built-In Grill
American Made Grills Ovation 54" Hybrid Built-In Grill OVA54 - 8 Burners, Gas, Charcoal and Wood
- $12,760.00
- $12,760.00
- Unit price
- per
Free shipping on all orders
Add to your order optional
Subtotal:
$12,760.00
Ask Ryan about this grill
Fit, fuel, install or delivery. Get a straight answer before you order.
- Manufacturer warranty on every grill
- 30-day returns on eligible items, 20% restocking fee. Return policy
- 0% credit card fees
Confirm your cutout 53.25" W × 15.0" H × 25.0" D
Needs a gas supply that matches the fuel you choose. Have your installer confirm utilities and clearances against the manual.
Specifications
| Brand | American Made Grills |
|---|---|
| Series | Ovation |
| Fuel type | Propane, Natural Gas |
| Cutout (W × D × H) | 53.25" × 25.0" × 15.0" |
| Overall (W × D × H) | 54.75" × 33.25" × 33.0" |
| Main burners | 8 |
| Rear burners | 1 |
| Total BTU | 176000 BTU/hr |
| Total cooking area | 1687 sq. in. |
| Material | 304 Stainless Steel |
American Made Grills Ovation 54" Hybrid Built-In Grill OVA54 - 8 Burners, Gas, Charcoal and Wood FAQs
How much island do I need to give the OVA54?
A cutout of 53-1/4 inches wide, 25 inches deep and 15 inches high, and a genuine landing zone on both sides to make it usable.
The grill itself is 54.75 inches wide, 33.25 inches deep and 33 inches high. Plan the island around it early rather than trying to fit it into a layout that already exists on paper.
What is the cooking capacity?
1,687 square inches. That is enough to run charcoal across half the grate and still have a full 27 inches of gas grill on the other side.
How many burners are there?
Eight main burners at 22,000 BTU each, for 176,000 BTUs. They are 14-gauge #304 stainless steel, with 14-gauge #304 burner covers.
How does the solid-fuel side work?
The patented 14-gauge #304 fuel trays are positioned above the gas burners. Fill them with briquettes, lump charcoal or wood chunks, use the burners to light the load, then either leave the gas on as assist or shut it off.
Can I keep the zones from bleeding into each other?
Heat zone separators are fitted for exactly that reason. On a grate this wide they are what let you hold distinct temperatures rather than one long gradient.
Can I flip the grates?
Yes, the 9-gauge V-shaped stainless grates have a flat searing face on one side and the V-channel on the other.
How do I control airflow with wood burning?
Through the adjustable vents in the 16-gauge double-lined hood. The hood is spring assisted, which matters at this width.
What comes with it?
A deluxe vinyl grill head cover, a 100 lb capacity rotisserie kit, a stainless steel griddle plate, a drop-in infrared sear burner, grate lifting tools, a leather glove set, a wood and charcoal fuel kit, and a cleaning care kit.
Is there a rotisserie back burner?
Yes, with built-in spit storage so the spit and forks stay with the grill.
What does the installer need for gas and clearances?
4.0 in. WC natural gas or 11 in. WC propane, and 15 inches of clearance to combustible material at the sides and rear. A grill liner reduces that clearance requirement.
Where is it built and what is it tested to?
Built, factory tested and serviced in Long Island, New York, from #304 stainless steel, and tested to ANSI Z21.58 / CGA 1.6.
Is there a smaller Ovation with the same hybrid system?
Yes. The Ovation 42 uses the same fuel trays and the same Estate-style face with six burners instead of eight.

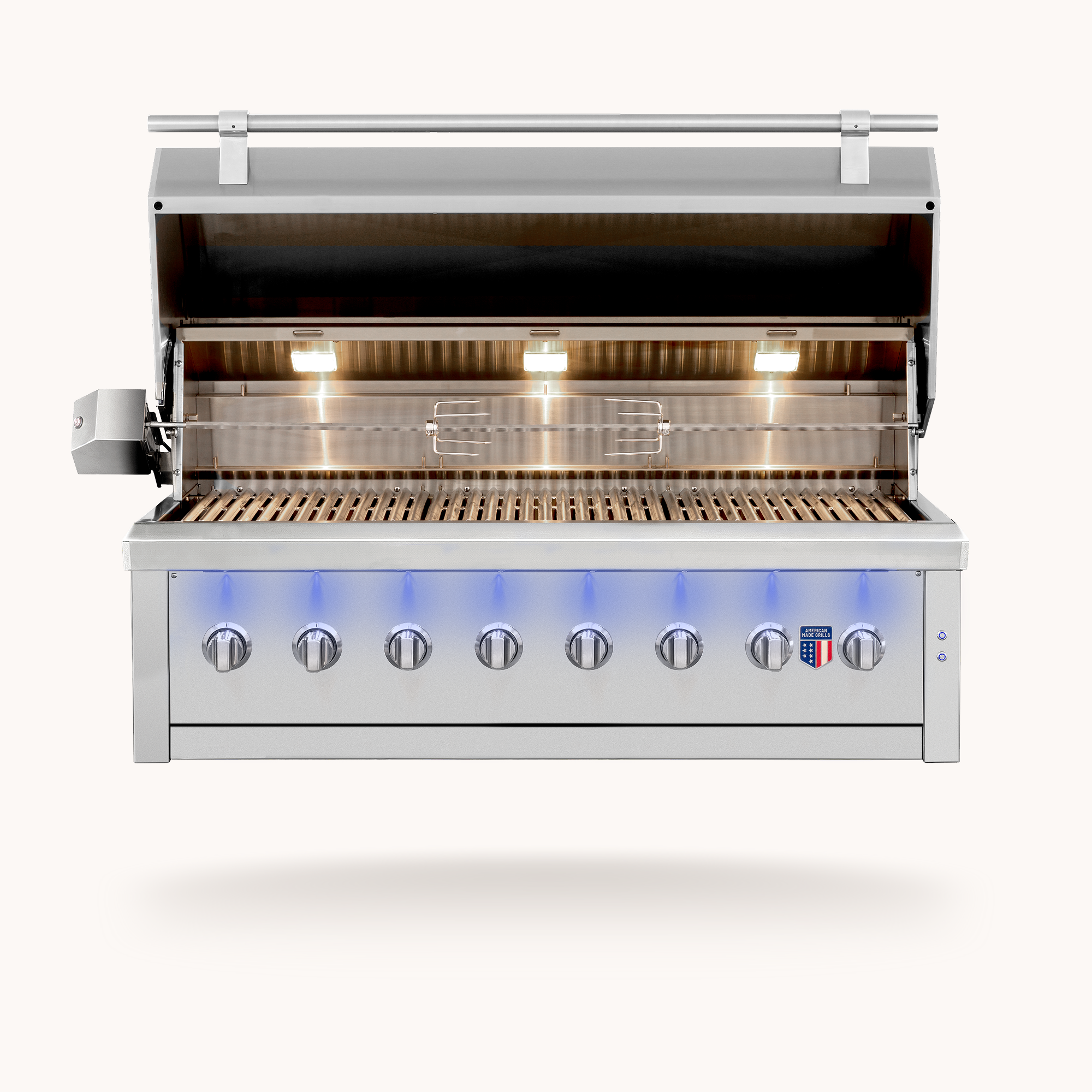

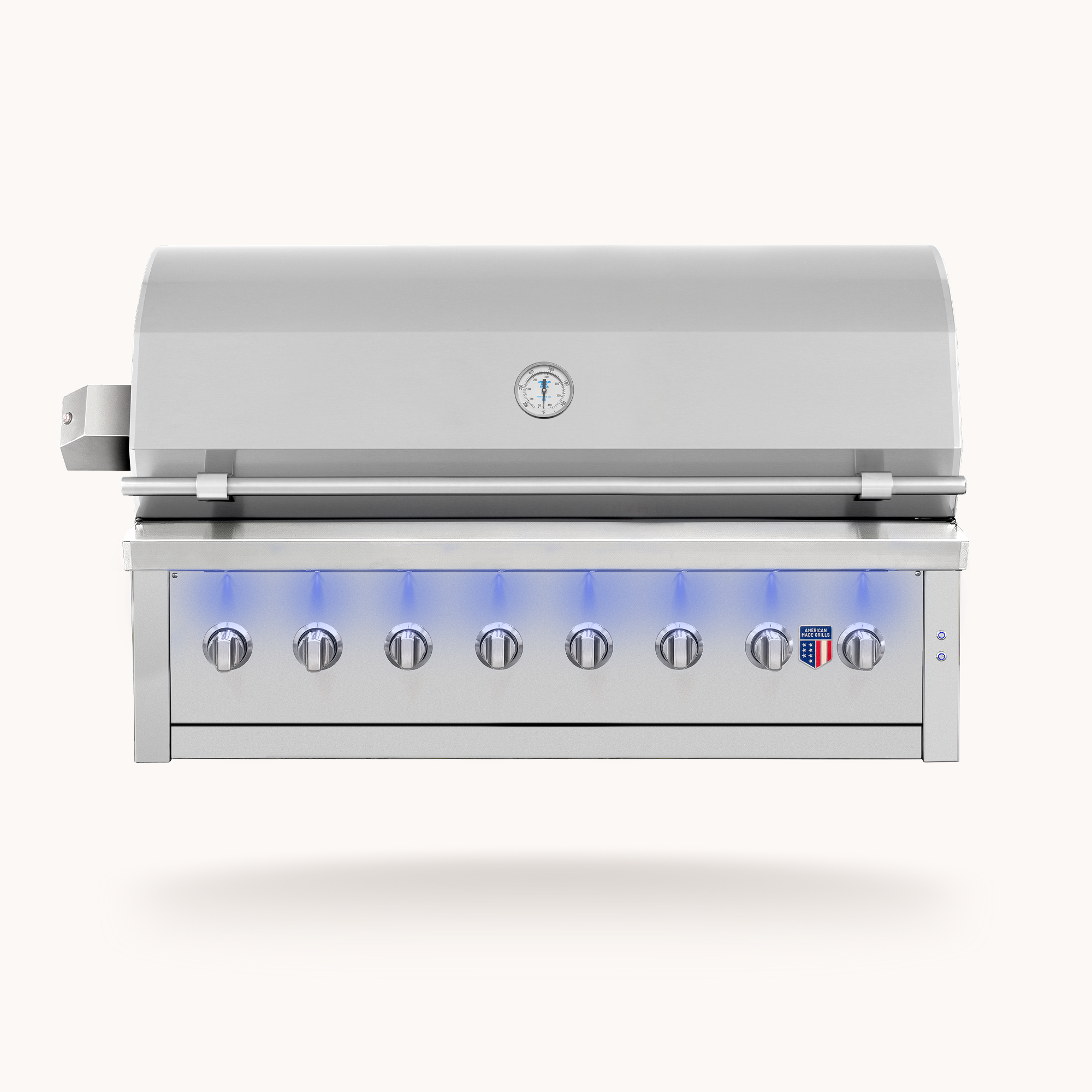

American Made Grills Ovation 54" Hybrid Built-In Grill
The American Made Grills Ovation 54" Hybrid Built-In Grill (OVA54) is a true multi-fuel grill: it runs on gas, on charcoal or hardwood, or on both at once. Built, factory tested, and serviced in the USA with #304 stainless steel construction, the Hybrid platform gives you live-fire flavor without giving up the convenience of turning a knob. The Ovation face brings the refined front face of the Estate Series grafted onto the deeper Hybrid body. See how it lines up against the rest of our American Made Grills built-in grills.
Power comes from 8 main burners rated at 22,000 BTU each, for 176,000 BTUs total. The burners are formed from 14-gauge #304 stainless steel and protected by 14-gauge #304 burner covers. Heat zone separators hold genuinely distinct temperature zones across the grate, and reversible 9-gauge V-shaped cooking grates flip between a flat searing face and classic V-channel grilling.
The patented 14-gauge hybrid fuel trays are the heart of the system. They sit directly above the gas burners, so you use the burners to light charcoal briquettes, lump charcoal, or wood chunks — then cook over live coals with gas assist, or shut the gas off entirely. A 16-gauge double-lined hood with spring assist, full-width #304 handle, and adjustable hood vents give you the airflow control that solid-fuel cooking actually needs.
Fifty-four inches is a commercial-scale cooking surface in a residential grill. Eight burners and 1,687 square inches means you can run charcoal across half the grate and still have a full 27-inch gas grill on the other side. Plan the island around it early — a 53-1/4 inch cutout drives the whole layout, and it needs a genuine landing zone on both sides to be usable.
The Ovation face splits the difference — it carries the clean architectural front of the Estate Series while keeping the deeper firebox and stance of the Hybrid platform. It is the natural choice if the rest of your outdoor kitchen already runs Estate Series components. With 1,687 square inches of total cooking surface, interior halogen cooking lights, LED-illuminated knobs, flame thrower ignition, a rotisserie back burner with built-in spit storage, and an easy-clean drip pan with drain system, the Ovation 54" is built for real entertaining. Every unit is built, factory tested and serviced in Long Island, New York, tested to ANSI Z21.58 / CGA 1.6, and backed by the American Made Grills Gold Standard warranty with 100% non-prorated replacement parts.
Key Features
- Built, factory tested and serviced in the USA
- Premium #304 stainless steel construction
- 8 x 22,000 BTU main burners — 176,000 BTUs total
- Hybrid solid-fuel capability — charcoal, lump, hardwood or gas
- Patented 14-gauge #304 fuel trays
- 16-gauge double-lined hood with spring assist and adjustable vents
- Reversible 9-gauge V-shaped cooking grates
- Heat zone separators for true multi-zone cooking
- 14-gauge #304 burner covers
- Interior halogen cooking lights plus LED lights over each knob
- Flame thrower ignition — no batteries required
- Rotisserie back burner with built-in spit storage
- Easy-clean drip pan with drain system
- 1,687 sq in total cooking surface
- Tested to ANSI Z21.58 / CGA 1.6
- Gold Standard warranty — replacement parts 100% non-prorated
Specifications
| Model | OVA54 |
| Series | American Made Grills Ovation |
| Grill size | 54" |
| Main burners | 8 x 22,000 BTU |
| Total BTUs | 176,000 |
| Total cooking surface | 1,687 sq in |
| Construction | #304 stainless steel |
| Hood | 16-gauge double-lined, spring assisted |
| Cooking grates | Reversible 9-gauge V-shaped stainless steel |
| Fuel trays | Patented 14-gauge #304 stainless steel |
| Ignition | Flame thrower |
| Lighting | Interior halogen + LED knob lights |
| Fuel type | Natural gas or propane, plus charcoal / hardwood |
| Island cutout | 53.25"W x 25"D x 15"H |
| Overall dimensions | 54.75"W x 33.25"D x 33"H |
| Gas pressure | 4.0 in. WC natural gas / 11 in. WC propane |
| Clearance to combustibles | 15" sides and rear (use a grill liner to reduce) |
| Certification | ANSI Z21.58 / CGA 1.6 |
| Warranty | Gold Standard warranty — lifetime on stainless steel construction, grates and burners, 3 years on electrical, all replacement parts 100% non-prorated |
Included With Every Ovation 54"
- Deluxe vinyl grill head cover
- 100 lb. capacity rotisserie kit
- Stainless steel griddle plate
- Drop-in infrared sear burner
- Grate lifting tools
- Leather glove set
- Fuel kit (wood + charcoal)
- Cleaning care kit
