American Made Grills Alturi 36" U-Tube Built-In Gas Grill ALT36T - 3 Burners, 78,000 BTUs, 920 Sq In, 304 Stainless Steel
- $6,153.85
- $6,153.85
- Unit price
- per
Subtotal:
$6,153.85
Fast Delivery
Ships from US Warehouse with average of 5 business day delivery time
Free Shipping
No cost to customer with tracking numbers provided all orders
No Credit Card Fees
Price does not increase in cart
Free Returns
Purchase with confidence
FAQs
Click the tab below to view some of the most common customer FAQs. Unsure? Call us 843-212-7209
Warranty Backed
Protection after purchase. Varies by vendor see tab below or warranty page for information.
American Made Grills Alturi 36" U-Tube Built-In Gas Grill
The American Made Grills Alturi 36" U-Tube Built-In Gas Grill (ALT36T) is the design-forward built-in in the American Made Grills lineup — luxury gas grilling in a refined footprint, built entirely in the USA from #304 stainless steel at the factory in Bohemia, New York. See how it compares against the rest of our American Made Grills built-in grills.

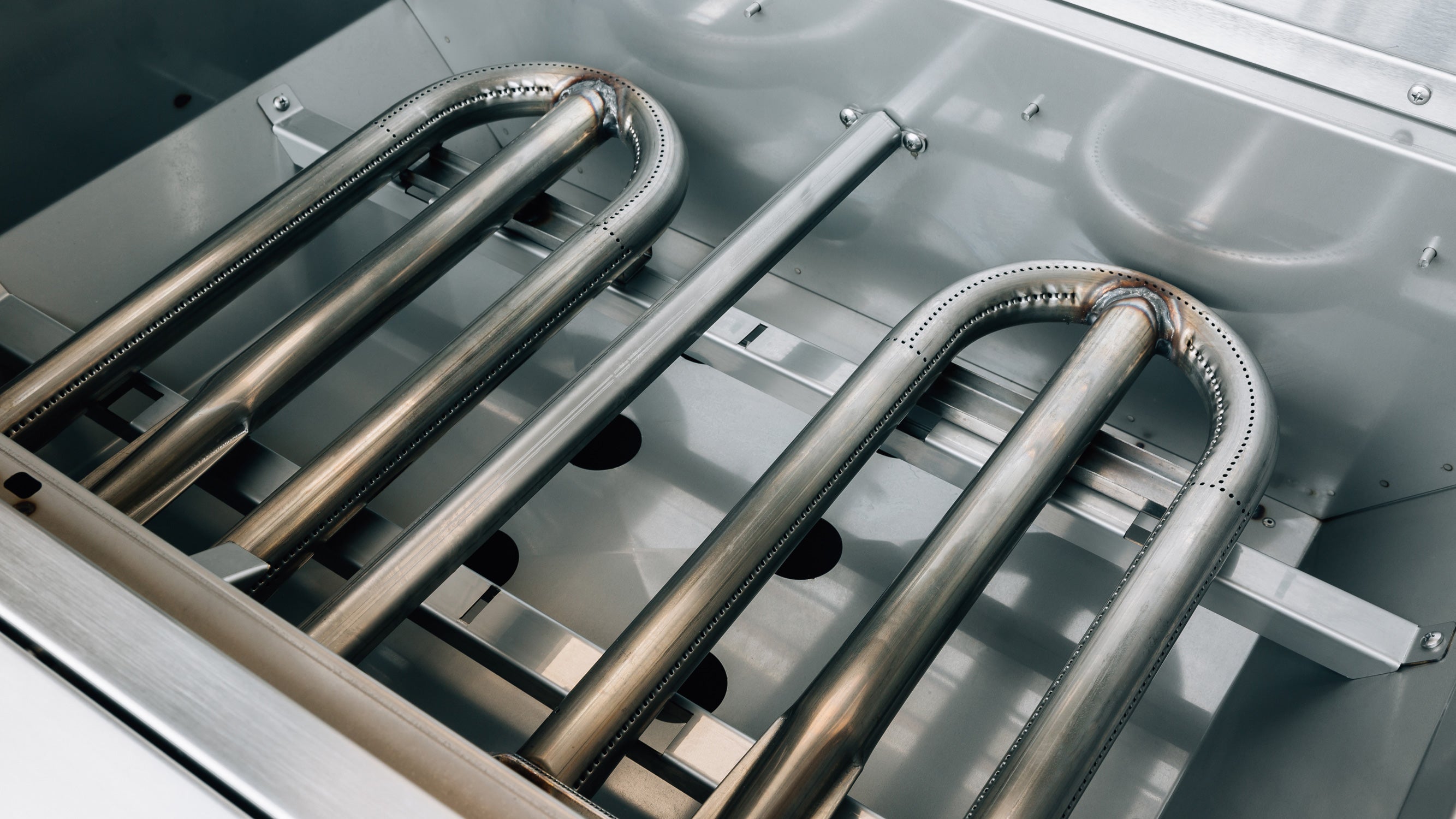

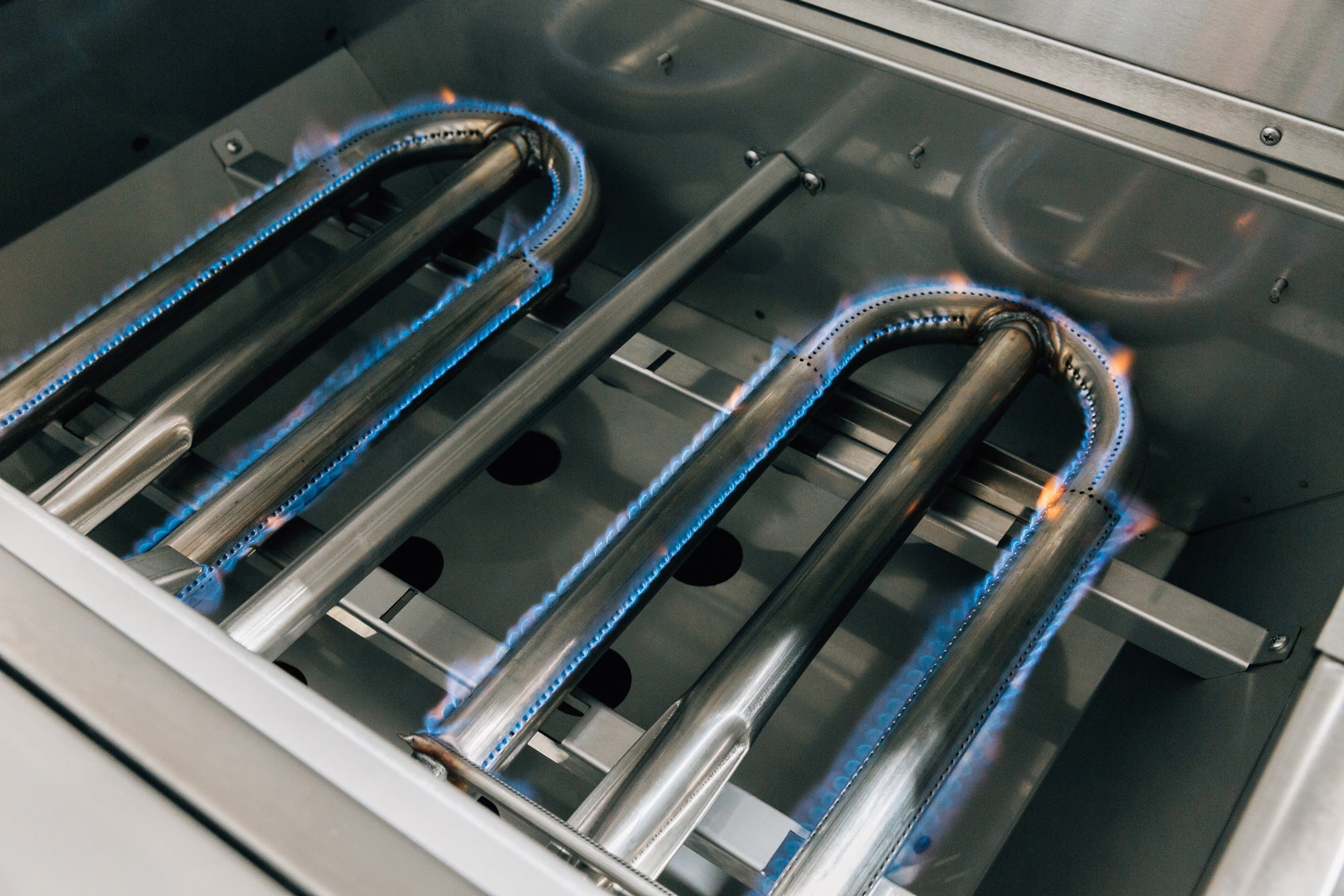

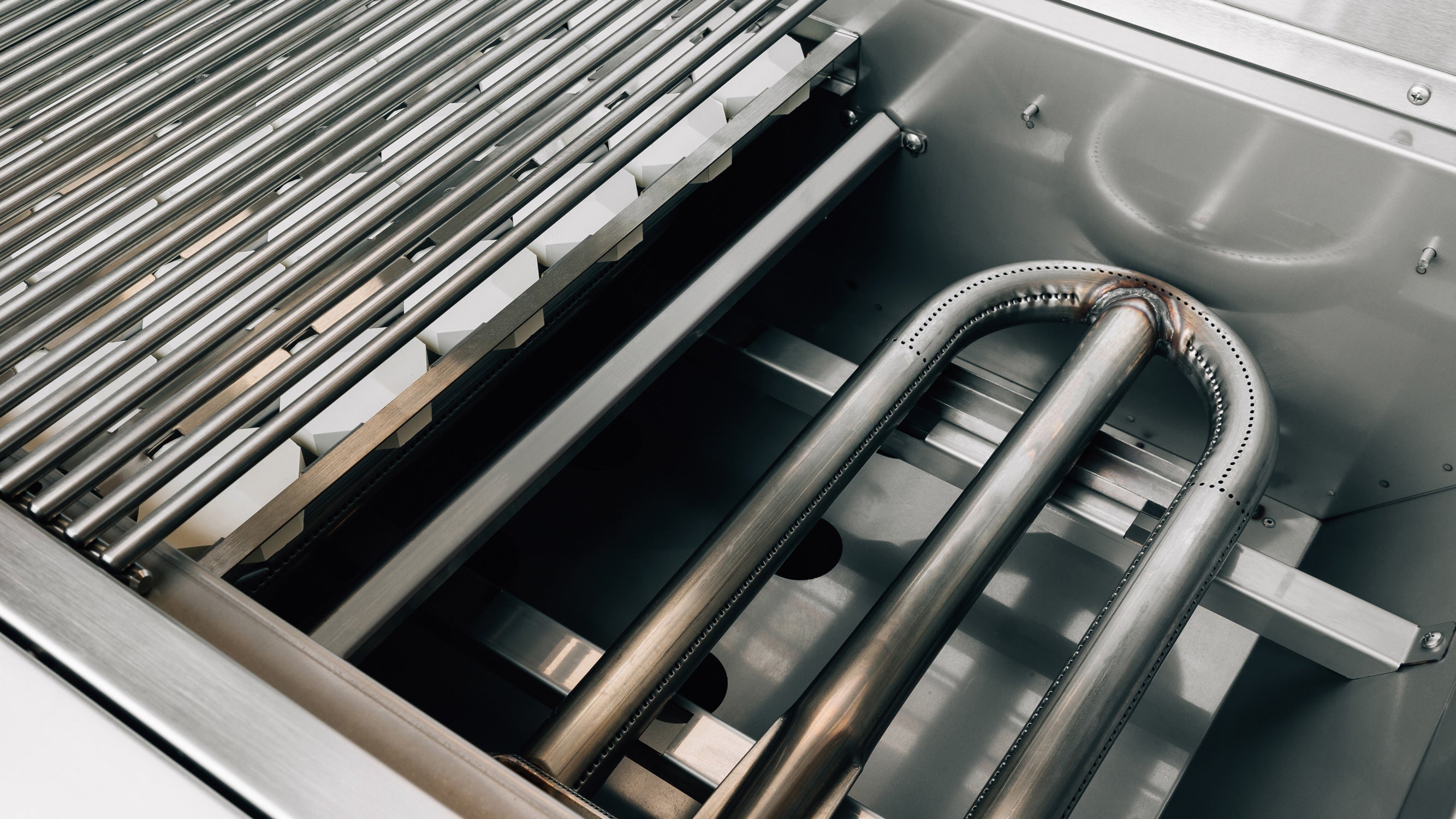

It runs 3 U-shaped 304 stainless main burners at 26,000 BTU each — 78,000 BTUs across 660 square inches of main grate, plus a 260 square inch secondary rack for 920 square inches total. A 12,000 BTU infrared back burner handles rotisserie work. The "T" in ALT36T is the U-tube stainless burner, which is what separates Alturi from the cast red brass burners in the Estate series above it.
Thirty-six inches is the volume size of the range and the one most outdoor kitchens are drawn around. The third burner turns two-zone cooking into three-zone cooking — sear, hold, rest — across 660 square inches of main grate, which is the difference between cooking for a family and cooking for a party.

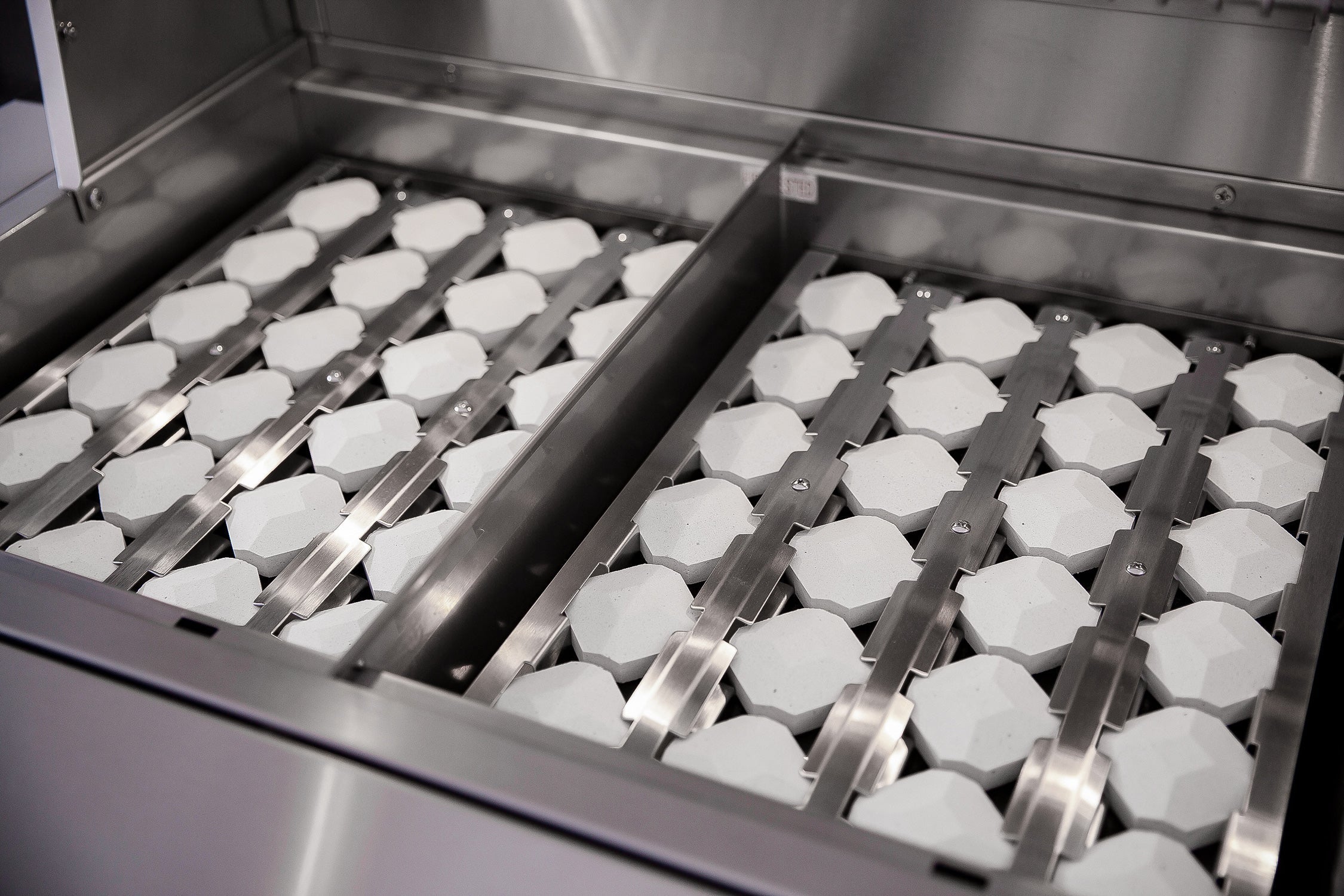

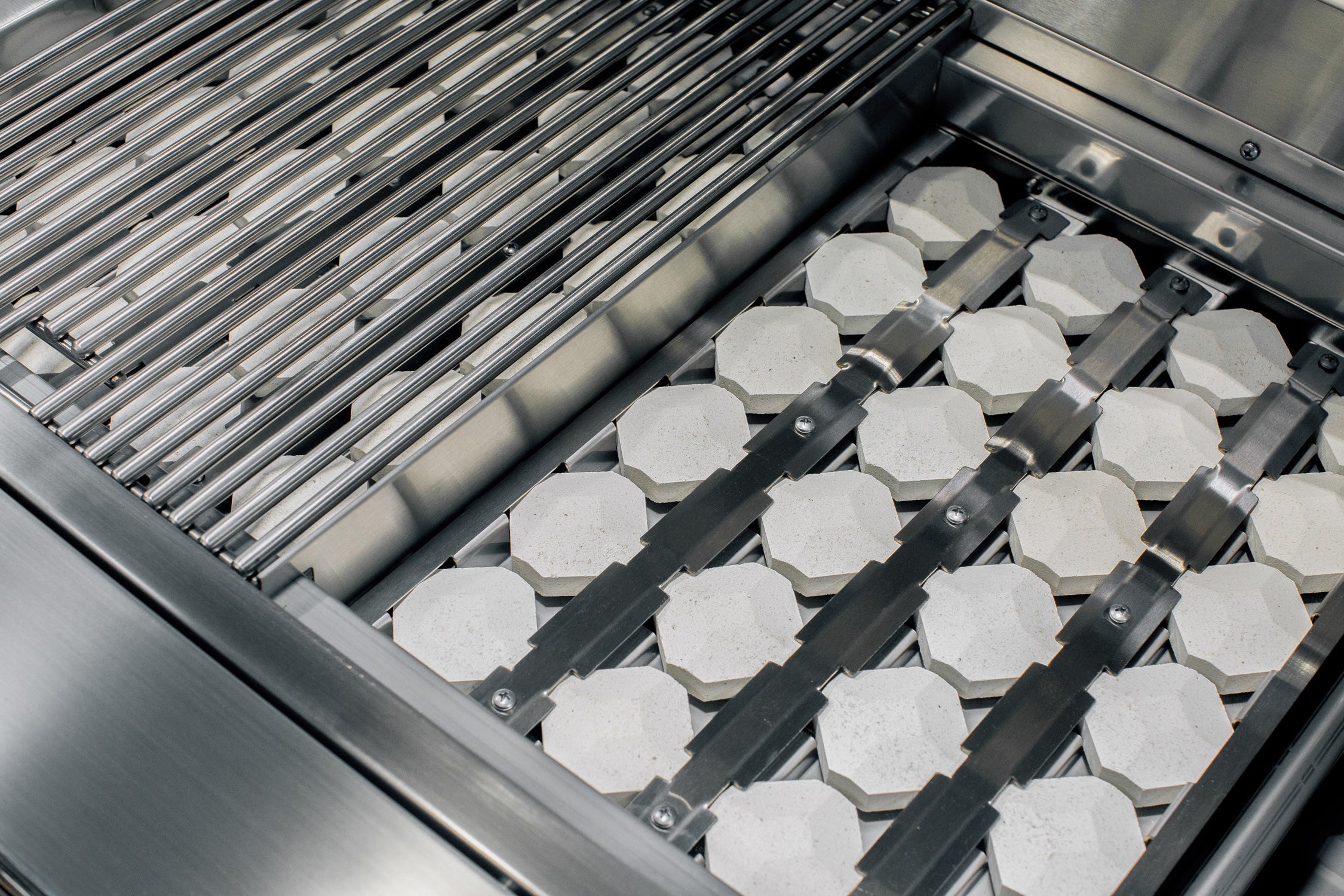

Under the grates sits a ceramic briquette flame tamer system rather than the steel tamers used elsewhere in the range. Ceramic holds heat and re-radiates it, which evens out the hot line directly over each burner and vaporizes drippings instead of letting them pool. Stainless heat zone separators come with the grill so you can run genuinely different temperatures side by side.

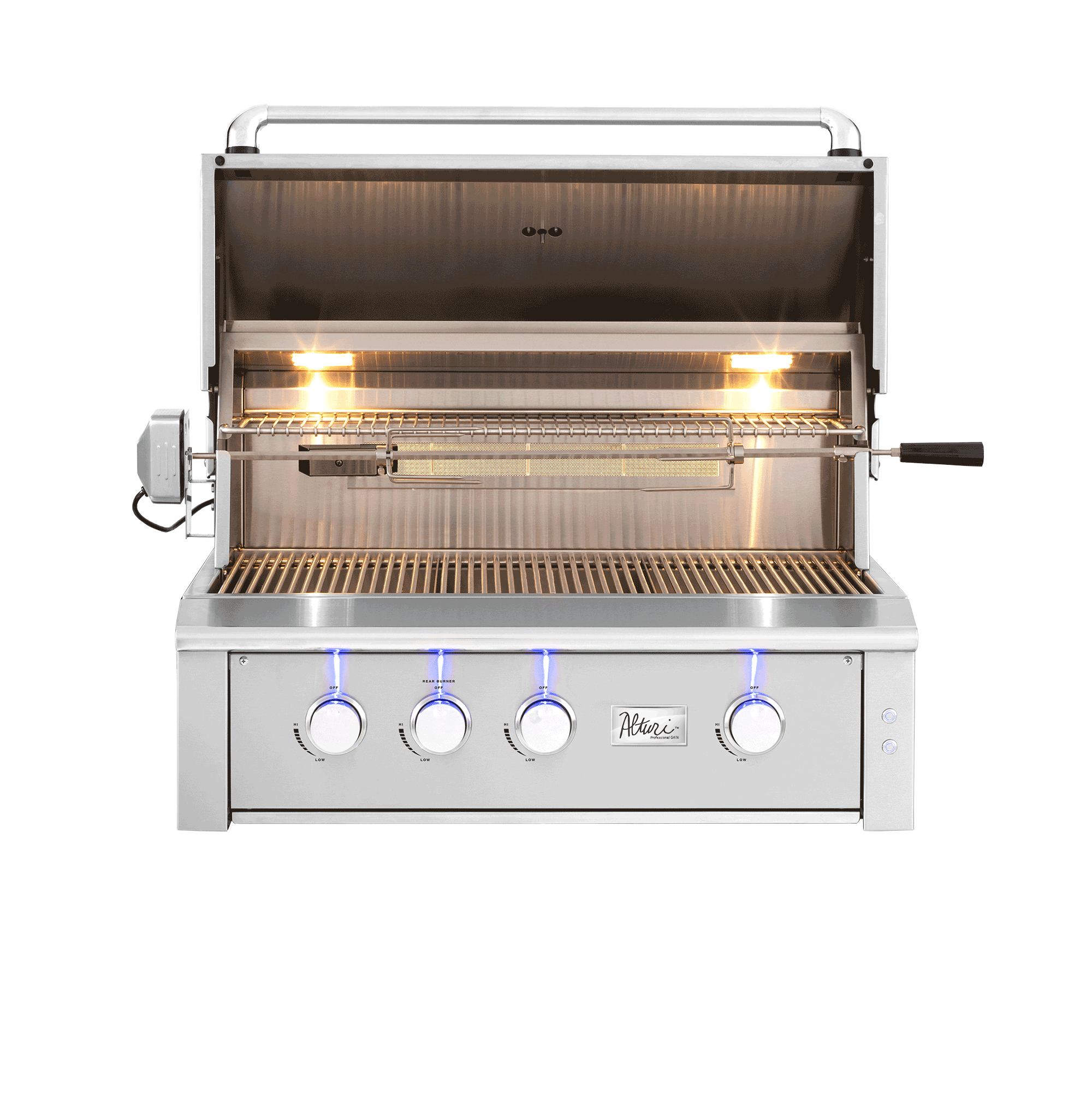

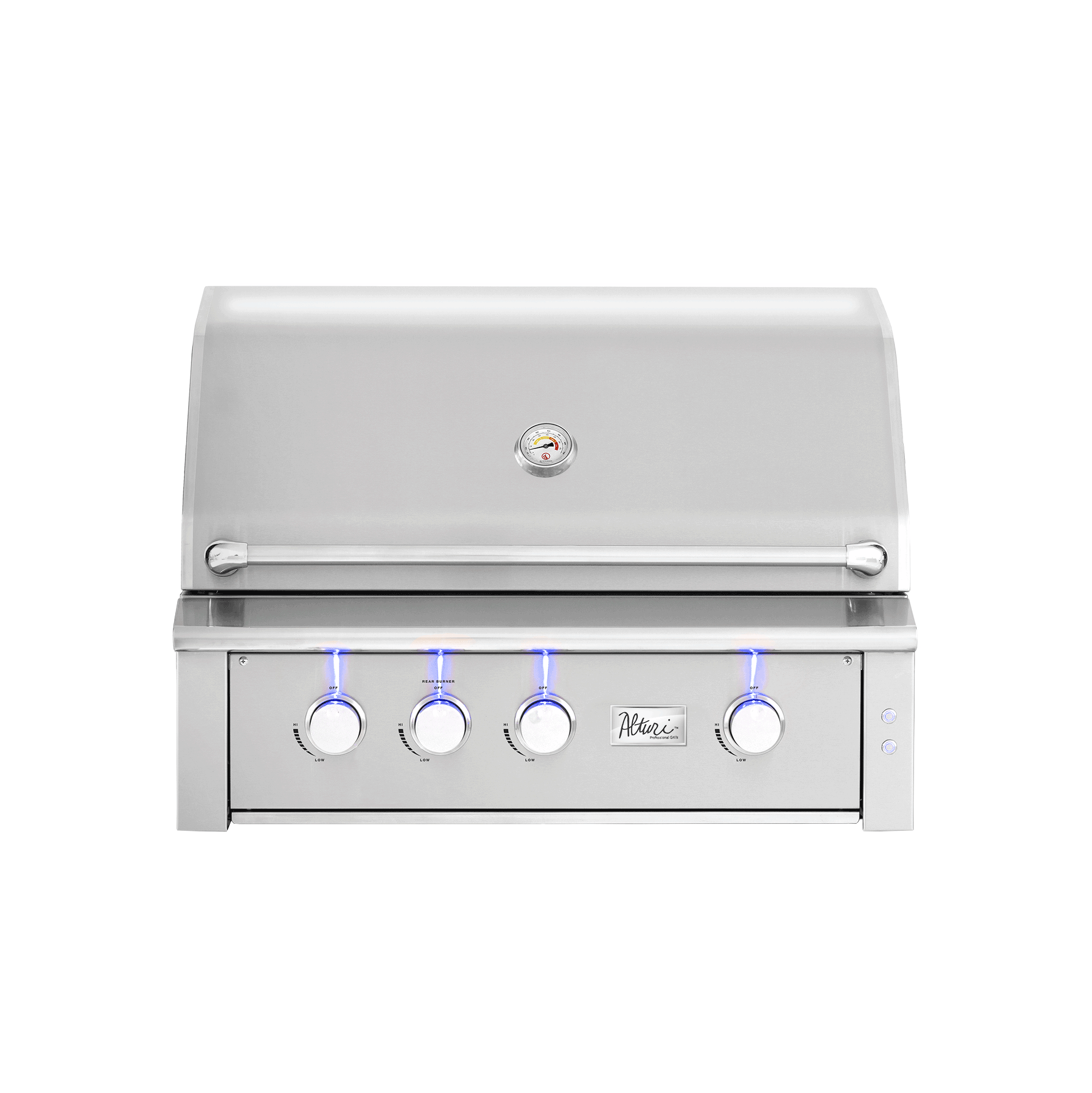

Alturi is the series where the lighting is the signature. Angle-mounted interior halogen lights wash the grate from corner to corner rather than throwing a hot spot down the middle, and the control knobs are LED backlit so you can read your settings at night. A double-lined, spring-assisted hood holds wherever you leave it, a 3" analog thermometer reads hood temperature, and flame thrower ignition with a manual flash-tube backup lights the burners without batteries.
Key Features
- Built, factory tested and shipped in the USA
- Premium #304 stainless steel construction
- 3 x 26,000 BTU U-shaped 304 stainless steel burners
- 12,000 BTU infrared back burner for rotisserie cooking
- 78,000 main burner BTUs
- 660 sq in main grilling area plus 260 sq in secondary rack
- 920 sq in total cooking capacity
- Ceramic briquette flame tamer system
- Stainless steel heat zone separators included

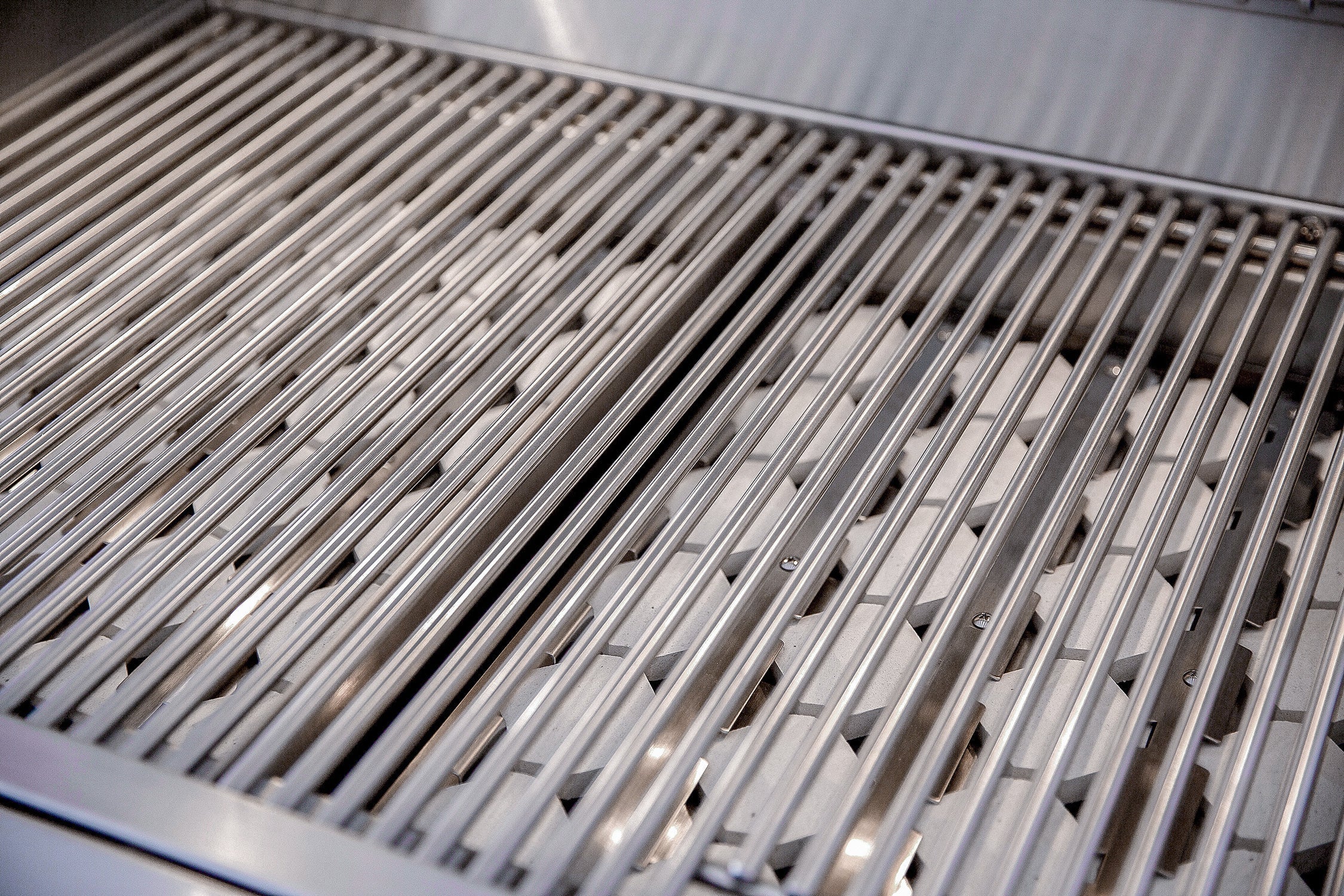

- Heavy-duty stainless steel cooking grates
- Double-lined, spring-assisted hood
- Angle-mounted interior halogen lighting plus LED backlit control knobs
- 3" analog hood thermometer
- Flame thrower ignition with manual flash-tube backup
- Available in natural gas or liquid propane
- Gold Standard lifetime warranty on stainless steel construction, 3 years on electrical components, all replacement parts 100% non-prorated
Specifications
| Model | ALT36T |
| Series | American Made Grills Alturi |
| Grill size | 36" |
| Main burners | 3 x 26,000 BTU U-shaped 304 stainless steel |
| Back burner | 12,000 BTU infrared |
| Main burner BTUs | 78,000 |
| Main grilling area | 660 sq in |
| Secondary grilling area | 260 sq in |
| Total cooking capacity | 920 sq in |
| Construction | #304 stainless steel |
| Flame tamers | Ceramic briquette system |
| Hood | Double-lined, spring assisted |
| Thermometer | 3" analog |
| Ignition | Flame thrower with manual flash-tube backup |
| Lighting | Angle-mounted interior halogen + LED backlit knobs |
| Fuel type | Natural gas or propane |
| Island cutout | 34.75"W x 23.0625"D x 10.1875"H |
| Overall dimensions | 36.024"W x 29.36"D x 25.484"H |
| Weight | 224 lbs |
| Warranty | Gold Standard lifetime warranty on stainless steel construction, 3 years on electrical components, all replacement parts 100% non-prorated |
Compatible Accessories
Grill Cover
Insulating Liner
An insulating liner is generally required when a built-in appliance is installed in an island built from combustible materials. Always follow the appliance's installation manual and local code.
American Made Grills Alturi 36" U-Tube Built-In Gas Grill ALT36T - 3 Burners, 78,000 BTUs, 920 Sq In, 304 Stainless Steel
Frequently Asked Questions
How much heat does the Alturi 36 put out?
78,000 main burner BTUs, from three U-shaped 304 stainless burners rated 26,000 BTU each. A 12,000 BTU infrared back burner handles rotisserie cooking separately.
The third burner is the reason to step up from the 30-inch model. It turns a two-zone fire into sear, hold and rest running at the same time.
What opening do I build for the ALT36T?
34.75 inches wide, 23-1/16 inches deep and 10-3/16 inches high. Build the island to those figures rather than to the grill width.
Overall the grill head is 36.024 inches wide, 29.36 inches deep and 25.484 inches tall, so plan counter on both sides of the opening rather than butting it to a wall.
How big is the grate?
660 square inches of main grate, plus a 260 square inch secondary rack, for 920 square inches of total cooking capacity.
Does it come with heat zone separators?
Yes, stainless heat zone separators are included. With three burners underneath them, you can hold three genuinely different temperatures across the grate at once.
What sits under the cooking grates?
A ceramic briquette flame tamer system. The ceramic absorbs burner heat and radiates it back up, which smooths out the hot stripe over each burner and turns drippings into smoke rather than a puddle in the bottom of the firebox.
Is the rotisserie kit part of the package?
The 12,000 BTU infrared back burner is built in, but the rotisserie kit is a separate purchase. The Alturi 36 rotisserie kit is the one that fits this firebox.
How is the hood built?
It is double-lined and spring-assisted, so it holds at whatever height you leave it instead of dropping. A 3-inch analog thermometer in the hood reads the temperature under the lid.
What lighting does it have?
Angle-mounted interior halogen lights and LED backlit control knobs. The angle mounting is what spreads the light across the whole grate instead of concentrating it in the center.
How do the burners light?
Flame thrower ignition, with a manual flash-tube backup. No batteries are involved in either path.
Natural gas or liquid propane?
Either. Choose the fuel when you order so the grill is configured for the supply running to your island.
How is Alturi different from the Estate series?
The burners. Alturi runs U-shaped 304 stainless main burners, while the Estate series above it uses cast red brass burners. Both are built in the USA from #304 stainless steel.
What if my island is framed in wood?
Use an insulating liner. The Alturi 36 insulating liner is built to this grill's cutout, so the opening dimensions do not change.
