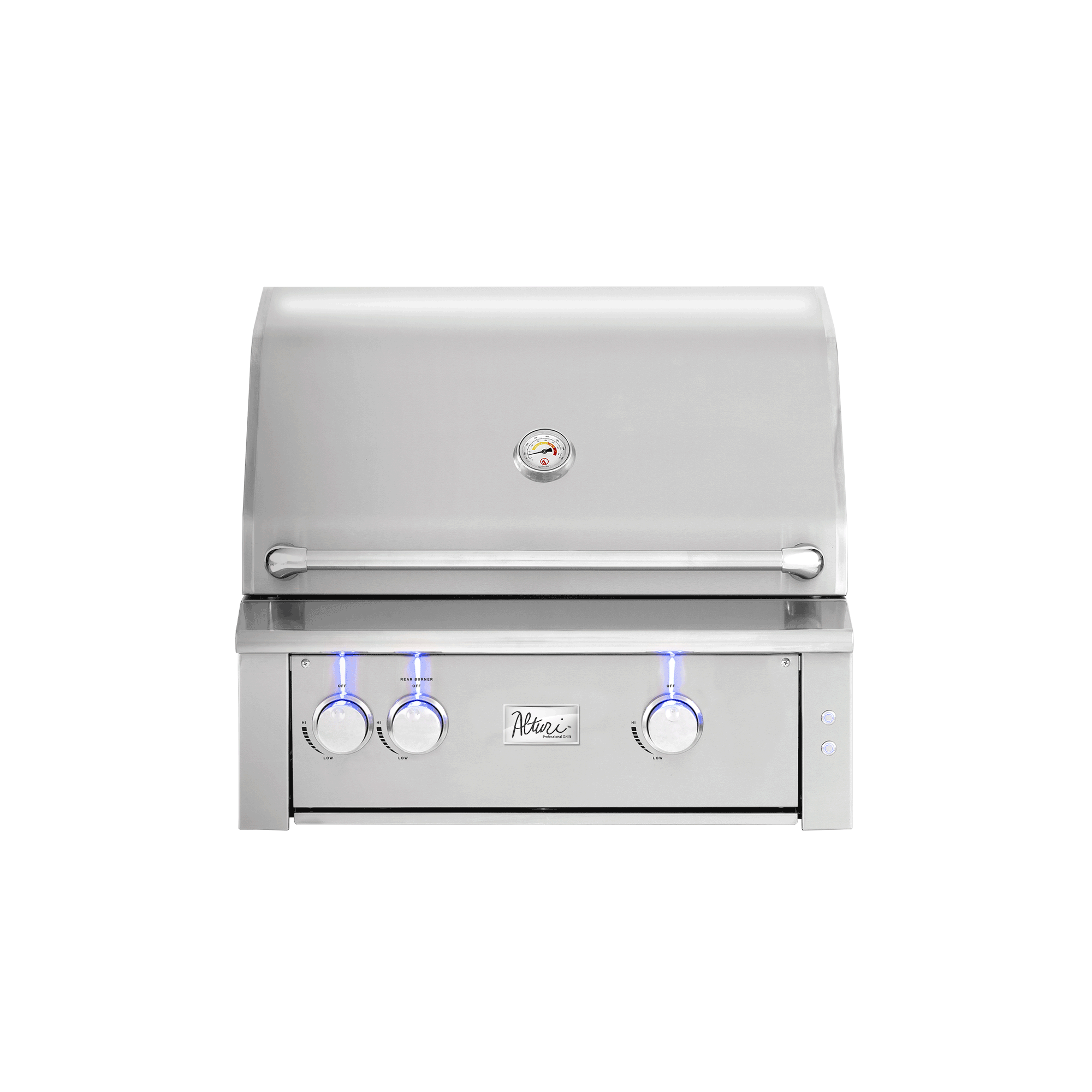

American Made Grills Alturi 30" U-Tube Built-In Gas Grill ALT30T - 2 Burners, 52,000 BTUs, 755 Sq In, 304 Stainless Steel

What size island cutout does the ALT30T need?

Frame an opening 28.5 inches wide by 23-1/16 inches deep by 10-3/16 inches high. That is the cutout the Alturi 30 drops into, and it should be finished before the grill arrives on site.

The grill head itself measures 30 inches wide by 29.36 inches deep by 25.484 inches tall, so the face overhangs the opening on each side and the body sits deeper than the cutout depth.

How many burners does it have and what is the total output?

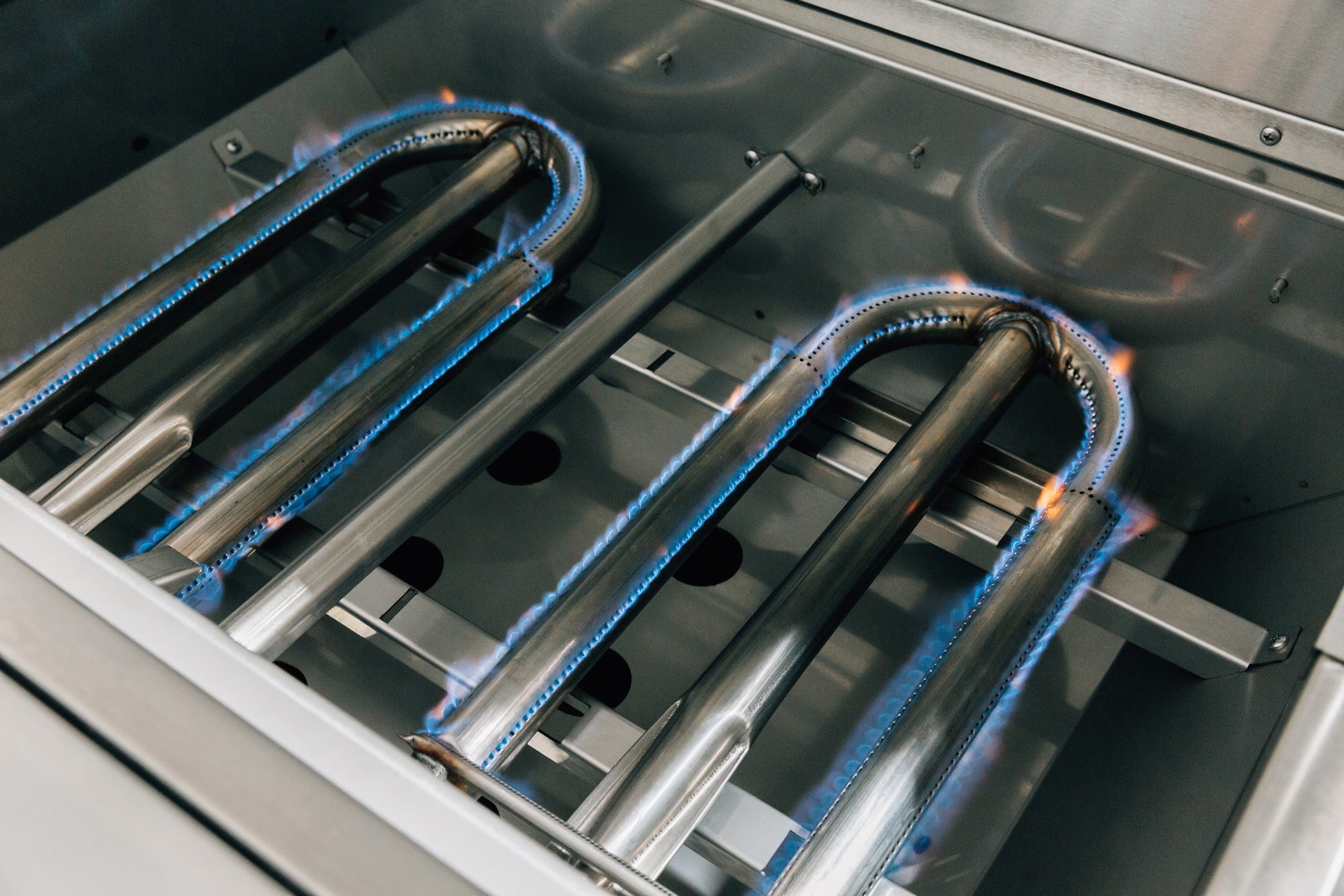

Two U-shaped 304 stainless main burners at 26,000 BTU each, for 52,000 main burner BTUs. A separate 12,000 BTU infrared back burner sits at the rear of the firebox for rotisserie work.

Two burners is the practical limit at this width, and it gives you a hot side and a cooler side without the grill being wider than the island can spare.

How much cooking surface do I actually get?

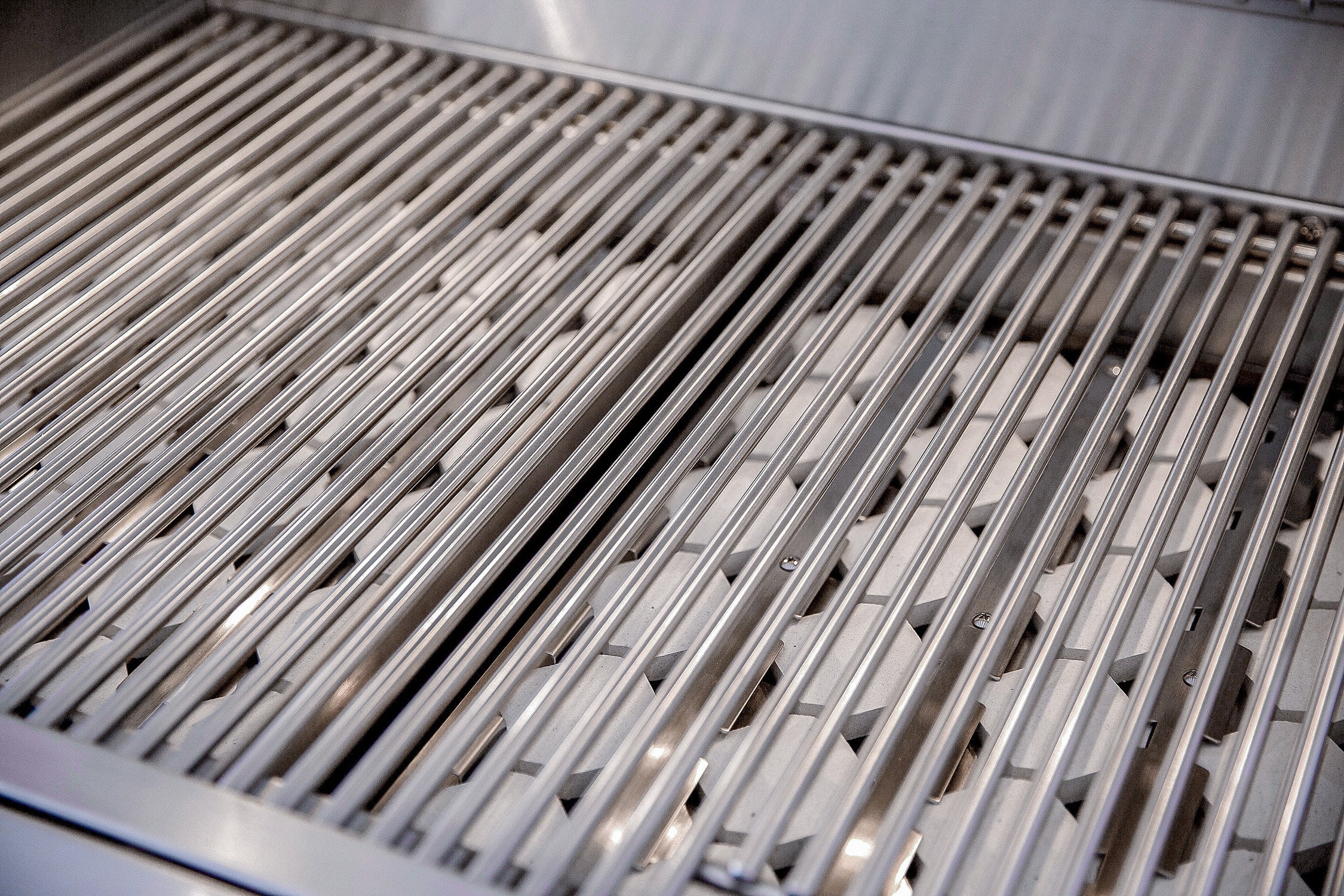

543 square inches on the main grate and 212 square inches on the secondary rack above it, for 755 square inches total.

The main grate is the number that matters when you are cooking. The rack is where finished food waits, which keeps it off the grate you are still working on.

Is a rotisserie kit included with the grill?

No. The 12,000 BTU infrared back burner is built into the grill, but the rotisserie kit itself is purchased separately.

If you plan to spit-roast, add the rotisserie kit sized for the Alturi 30 at the same time so the hardware matches the firebox.

What does the T in ALT30T stand for?

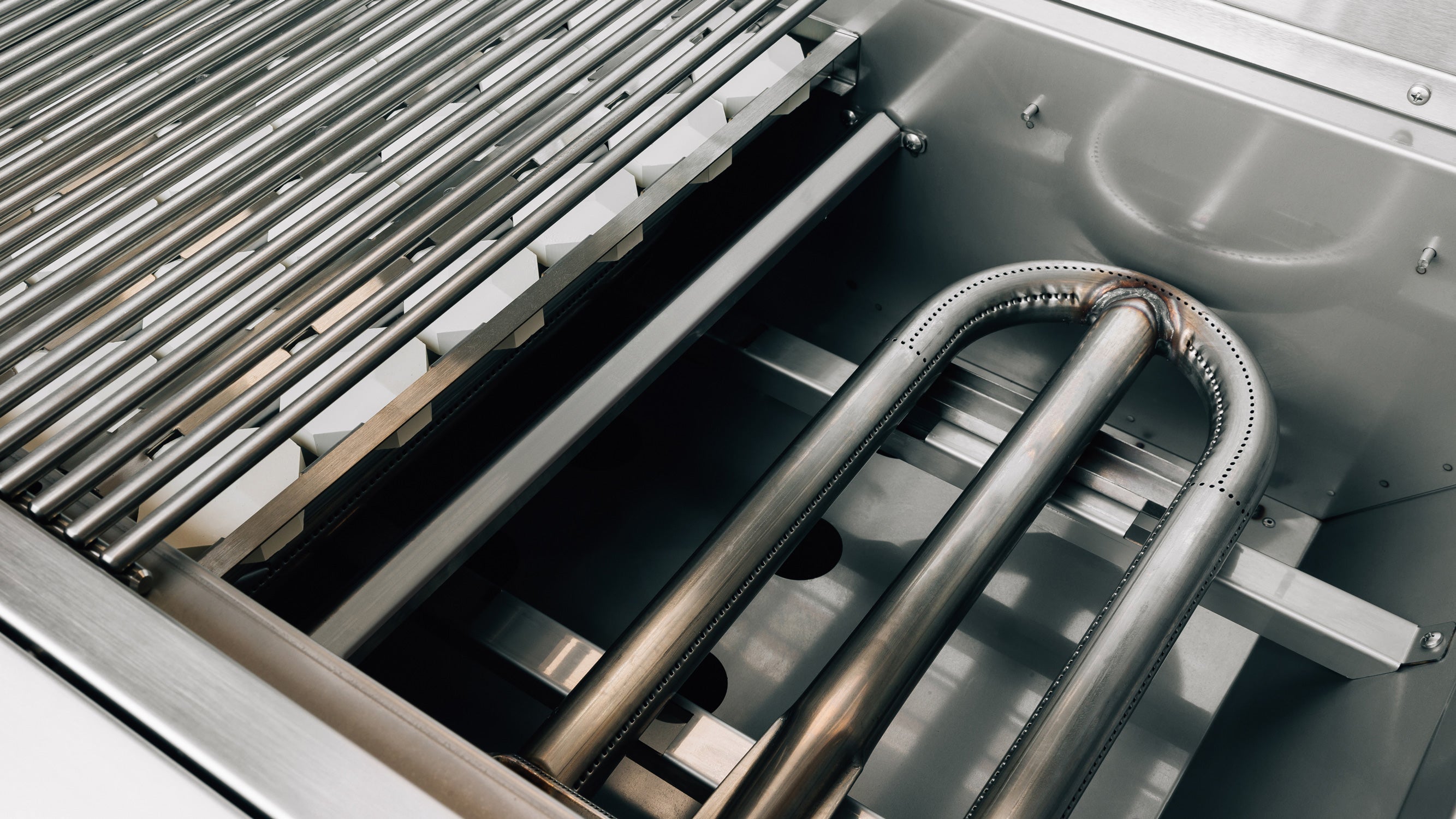

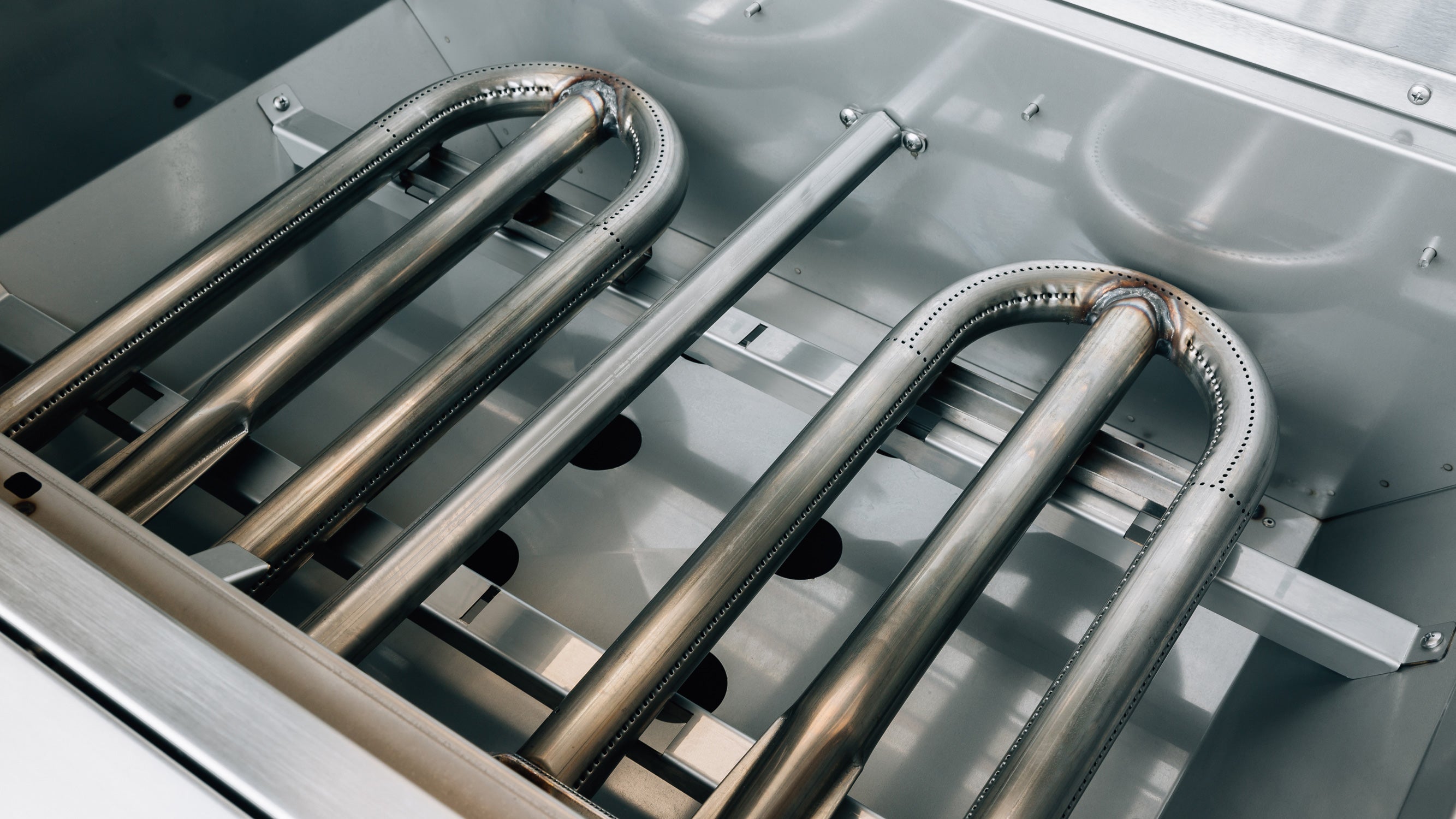

The U-tube stainless burner. Alturi models with the T designation run U-shaped 304 stainless steel main burners, which is what separates the series from the cast red brass burners used in the Estate line.

Why ceramic briquettes instead of steel flame tamers?

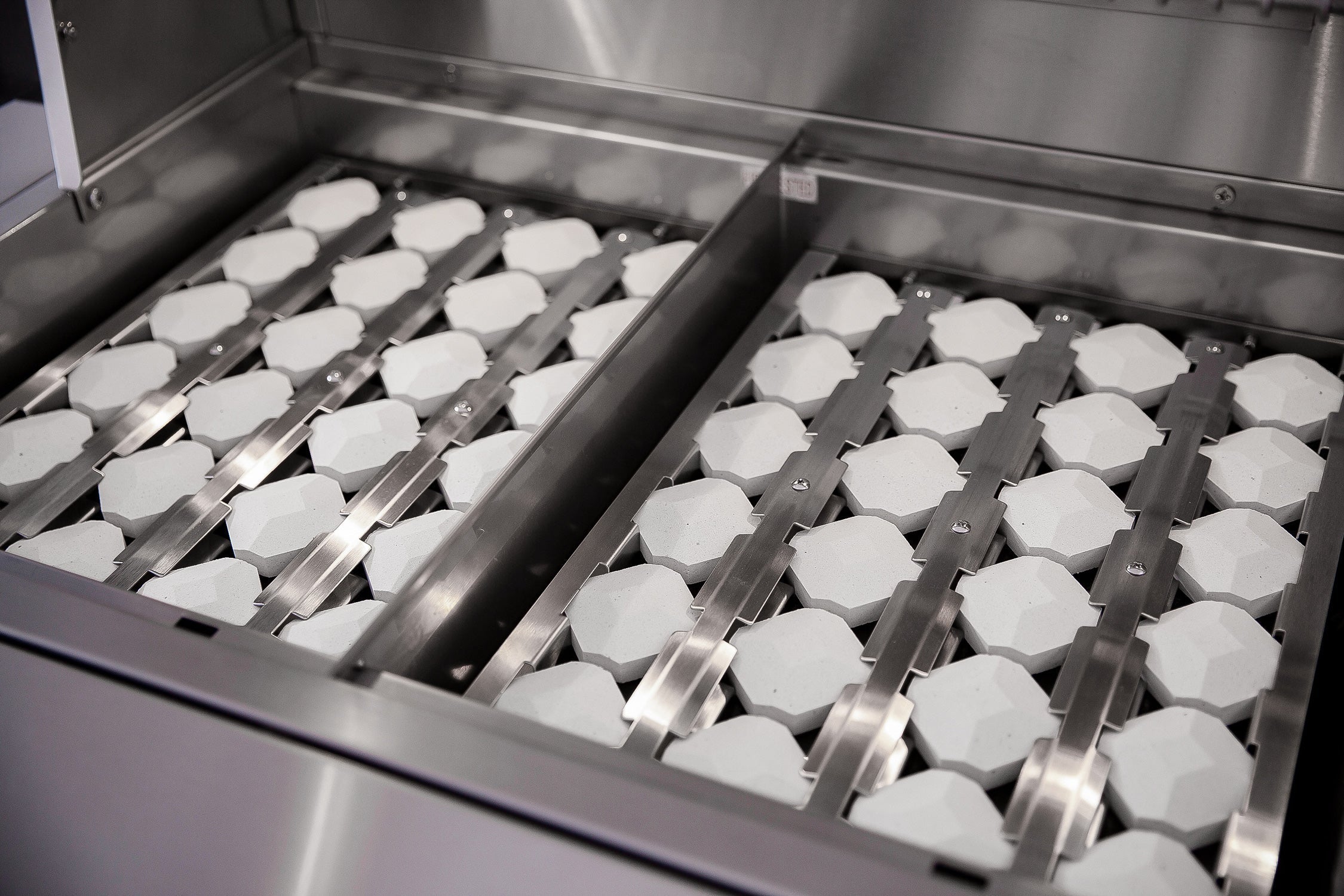

Ceramic holds heat and re-radiates it, so the hot line directly over each burner evens out across the grate. Drippings hit the briquettes and vaporize instead of pooling.

This is the flame tamer system Alturi uses in place of the steel tamers found elsewhere in the range.

Can I run two different temperatures side by side?

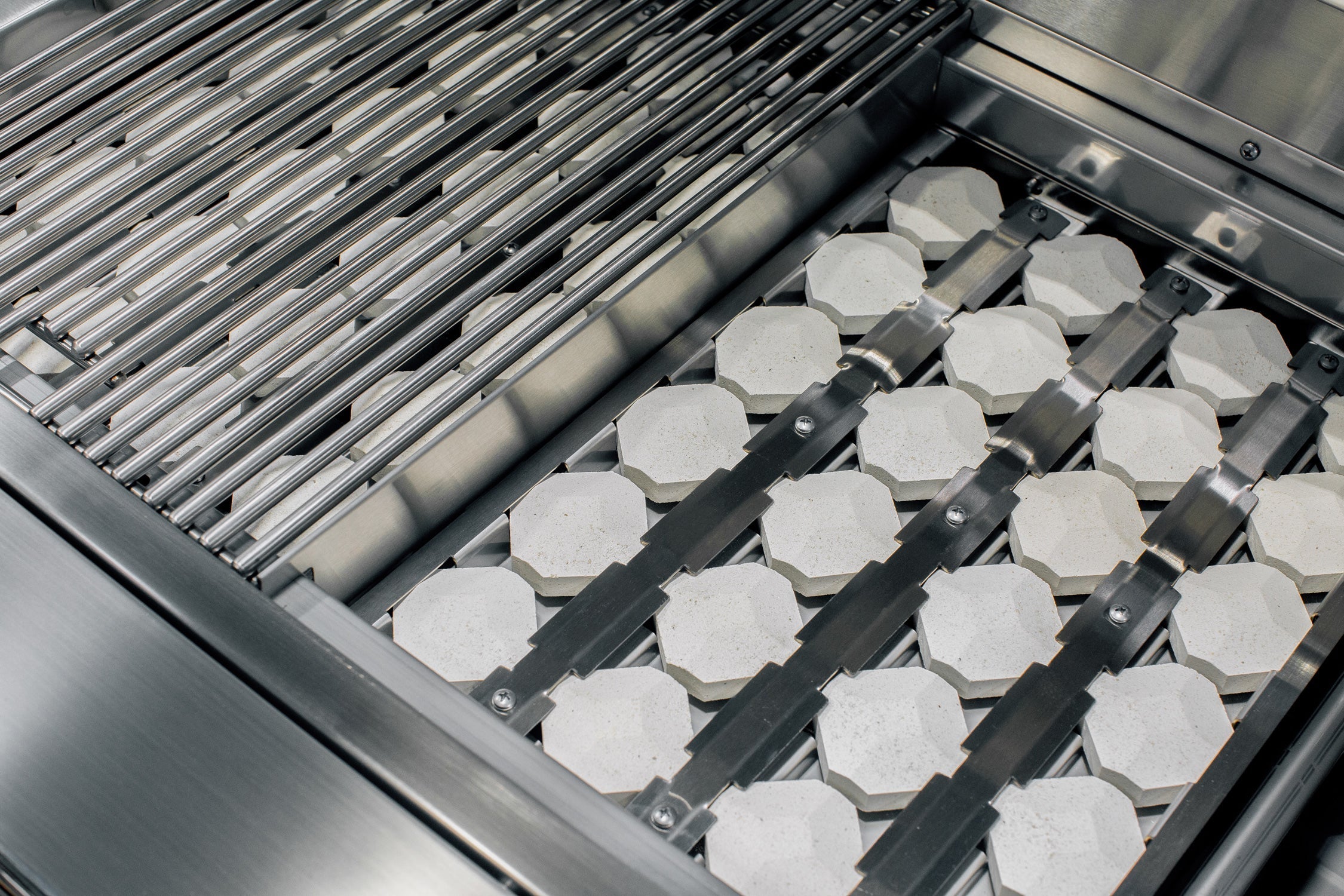

Yes. Stainless steel heat zone separators come with the grill, so you can hold a genuine searing zone at one end and a lower holding zone at the other rather than fighting one continuous heat field.

Is this grill usable after dark?

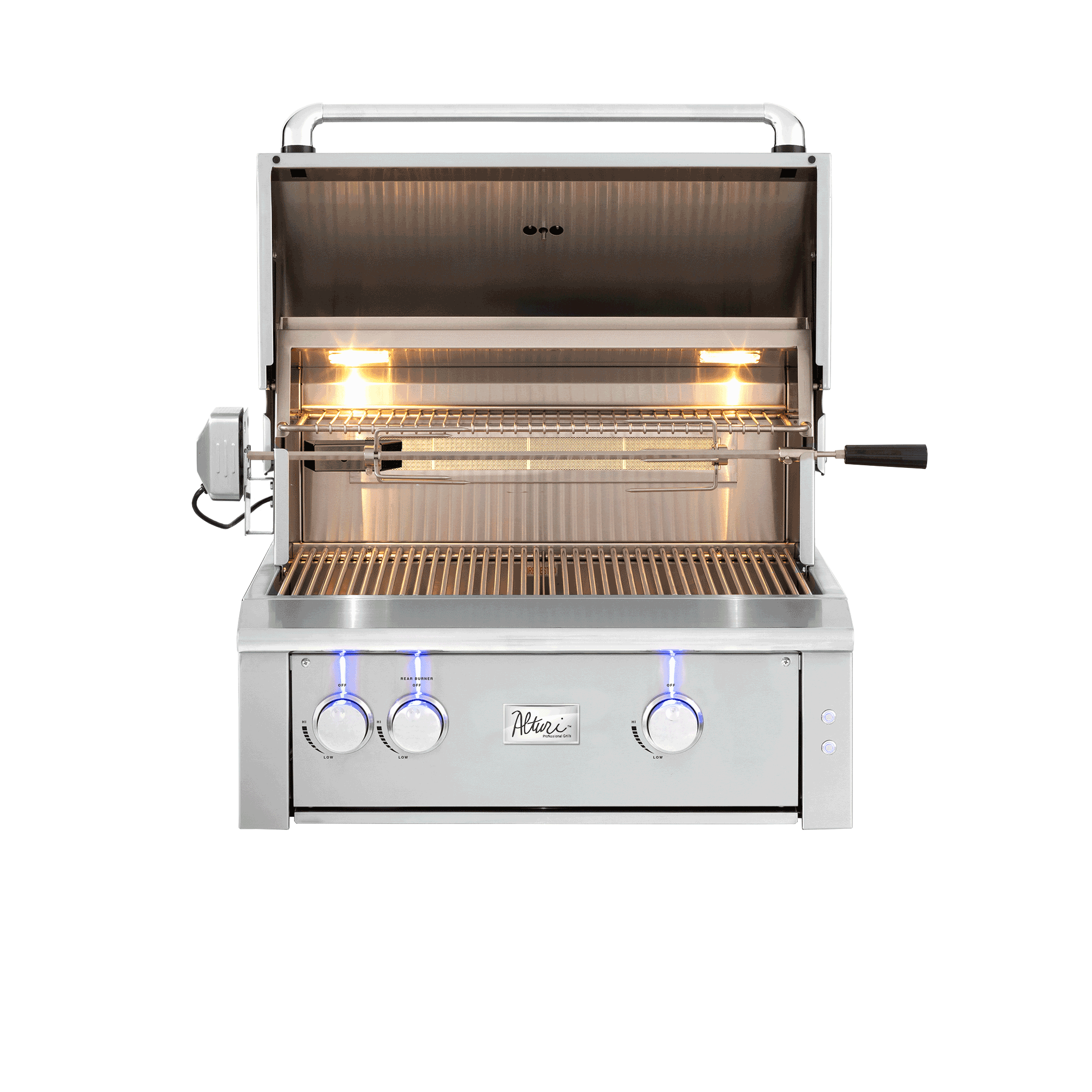

Yes. Interior halogen lights are angle-mounted so they wash the grate corner to corner instead of dropping a bright spot in the middle, and the control knobs are LED backlit so you can read your settings without a flashlight.

Does the ignition need batteries?

No. The ALT30T uses flame thrower ignition with a manual flash-tube backup, so there is nothing to replace and a way to light the burners by hand if the primary ignition ever fails.

Can I get it in natural gas or propane?

Both are available. The grill is built for one fuel or the other, so specify natural gas or liquid propane when you order to match the gas supply at the island.

How much does it weigh, and does that matter for the island?

198 pounds. That weight sits on the frame around the cutout, not on the countertop, so the opening needs to be built to carry it.

Do I need an insulating liner?

Only if the island is framed in a combustible material such as wood. In that case, use the insulating liner made for the Alturi 30 built-in grill, which is sized to this exact cutout.
