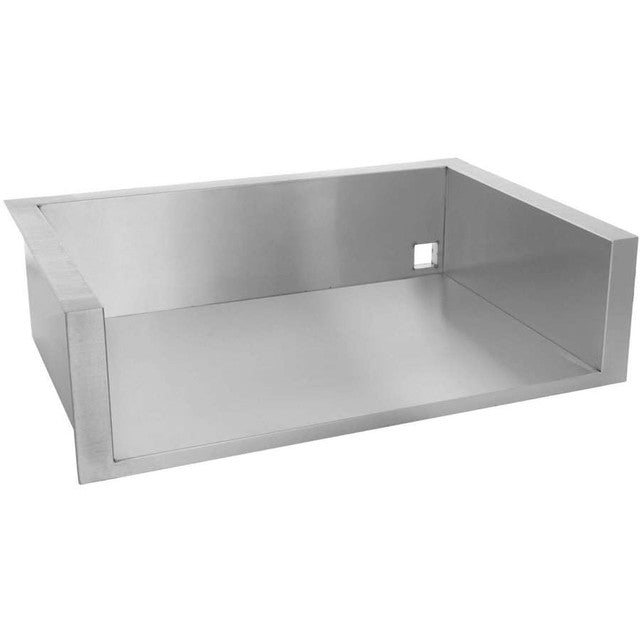

American Outdoor Grills Insulating Liner 30-IL-C - For L-Series and T-Series 30" Grills

What opening does the 30-IL-C liner drop into?

34 5/8 inches wide by 21 5/8 inches deep by 9 inches high. Those are the numbers to give your island builder, since the liner sets the cut-out and the grill head then sets into the liner.

Is this the right liner for my grill?

It is engineered for American Outdoor Grill L-Series and T-Series 30 inch built-in gas grills. Confirm both the series and the 30 inch size on your grill head before ordering, since liners are size-specific.

What does the liner actually do?

It sits between the grill head and the enclosure as a non-combustible barrier, keeping cooking heat off the surrounding cabinetry.

Can I skip it if I am building the island out of wood or composite?

No - that is exactly the case the liner exists for. It is what makes a safe installation possible in an island framed from wood, composite or other combustible materials.

Is the liner required or recommended?

AOG treats it as a required component of any custom build housing a 30 inch L-Series or T-Series grill head, so budget it in with the grill.

What material is it?

304 stainless steel, chosen to stay corrosion resistant in the same conditions the grill lives in.

Does the depth differ between liner sizes?

Depth and height stay the same at 21 5/8 inches deep and 9 inches high across the L and T-Series liners; it is the width that changes with grill size. Grill heads for these liners are in the AOG built-in grill collection.
