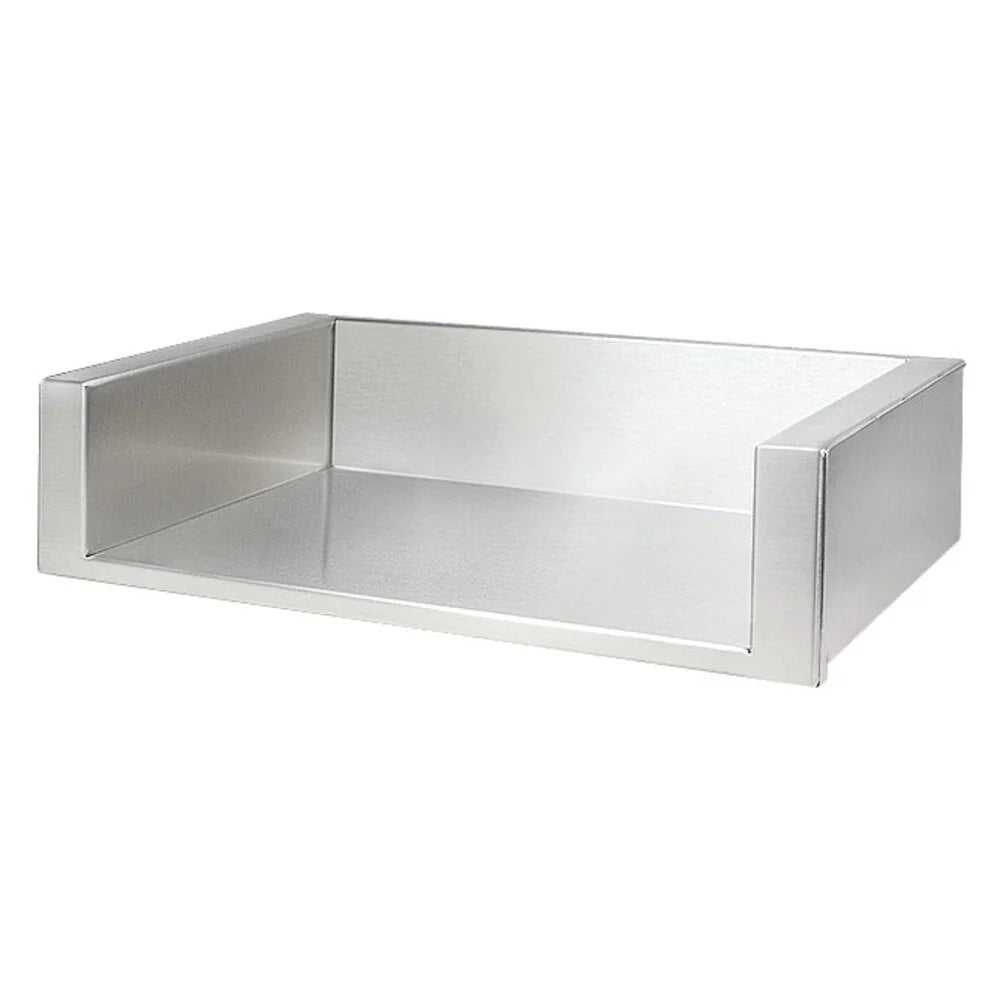

Artisan Insulating Liner Jacket for 42" Built-In Grills ART-IJ42

A 42-inch Artisan Professional is the largest head in the Artisan range, and in a combustible island it also needs the largest jacket. The ARTIJ-42 is the insulated jacket Alfresco documents for its 42-inch Artisan built-ins, the ARTP-42 among them, and Alfresco requires one of its jackets whenever the enclosure is built from combustible materials such as wood framing. Like the smaller sizes it is self-supporting 304 stainless steel, and the grill slides into it on the jacket's support rails. The opening grows with it: 43-1/4" W x 23-5/8" D x 10-1/4" H with the jacket, against 40-1/2" x 19-3/4" x 9-1/2" for the grill alone. On a counter run this long, that extra 2-3/4" of width is worth fixing on paper before the first stud goes in. Our SKU is ART-IJ42.

Key Features

• For the 42" Artisan Professional — the ARTIJ-42 is the jacket Alfresco documents for its 42-inch Artisan built-ins, including the ARTP-42.
• Carries the largest Artisan head — a self-supporting 304 stainless steel jacket that the 42-inch grill slides into.
• Required in combustible islands — Alfresco calls for one of its own jackets whenever the enclosure is built from combustible materials.
• Longest counter run in the range — 44-5/8" wide overall, so allow for it when laying out doors, drawers and side burners either side.
• Utility openings — a cable hole for the Professional's 110V ignition and lighting, plus access to the gas connection.
• Bolt-together panels — assembled from left, right, bottom and rear panels with the supplied hardware and a #2 Phillips screwdriver.

Specifications

Documents

• ARTIJ-42 spec sheet (PDF)
• Artisan insulated jacket assembly instructions (PDF)

Model and Installation Information

In our catalog the ARTIJ-42 fits the Artisan Professional 42" Built-In Grill (ARTP-42). Alfresco also documents it for the 42-inch Artisan Series ART-42, which we do not currently stock. It is not used with the ARTP-42C cart grill.

The jacketed island opening is 43-1/4" W x 23-5/8" D x 10-1/4" H, and the jacket itself measures 44-5/8" x 24-5/8" x 11-9/16". Compared with the bare ARTP-42 cutout of 40-1/2" x 19-3/4" x 9-1/2", that is 2-3/4" more width and 3-7/8" more depth to design around. Alfresco's assembly sheet has the jacket bolted together from four panels, the grill's countertop support ring removed (its six screws saved and refitted once the grill is in), the head slid in over the support rails, the power cord routed out through the jacket's cable hole, and the unit bedded into the counter on clear silicone. Confirm all dimensions with the spec sheet and the ARTP-42 installation manual, and have a licensed installer sign off the gas connection and local code. More planning help is in our built-in grill cutout dimensions guide.

Who This Model Is Best For

The ARTIJ-42 is for the owner of a 42-inch Artisan Professional building a large, framed outdoor kitchen, where the grill is the centerpiece of a long counter run and the enclosure is wood or another combustible material. At this size the jacket shapes the whole layout, so it is best ordered alongside the grill and handed to the builder with the drawings. A fully non-combustible masonry island may not require a jacket; the ARTP-42 installation manual and local code settle that. See our insulating grill liners FAQs for more.

Buying From Northwoods Grills

Northwoods Grills is a family-owned retailer in Charleston, South Carolina. A jacket has to match the grill exactly, so call us at 843-212-7209 with your grill's model number and we will confirm the match before it ships. Shipping is free and we do not charge credit card fees.
