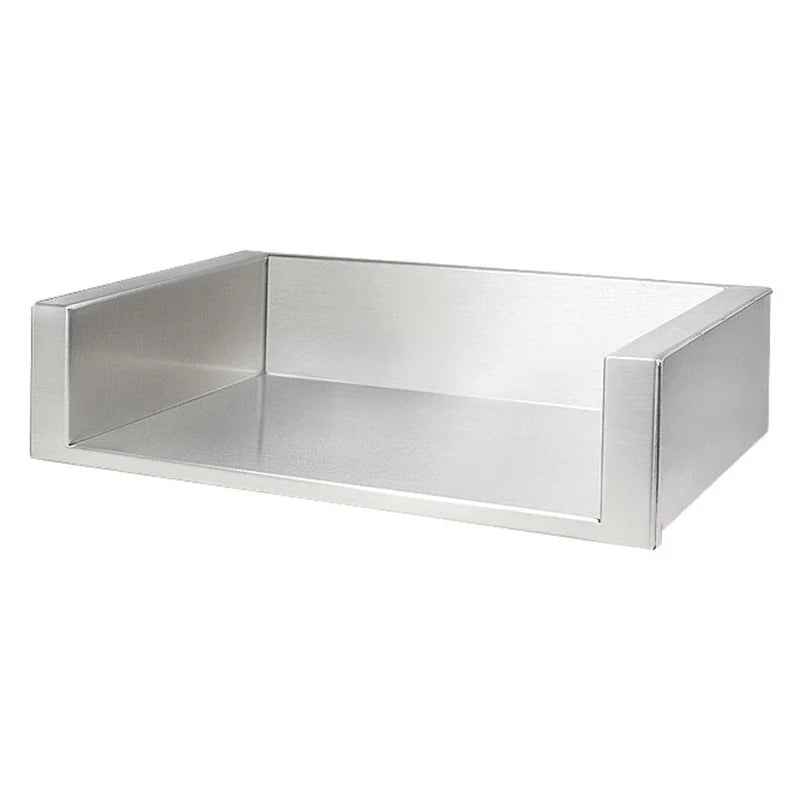

Artisan Insulating Liner Jacket for 32" Built-In Grill ART-IJ32

Artisan makes a 32-inch built-in in all three of its grill lines — American Eagle, the Artisan Series and Professional — and all three drop into the same 30-1/2" x 19-3/4" x 9-1/2" opening. That shared firebox is why Alfresco lists a single jacket, the ARTIJ-32, for all of its Artisan 32" grills. When the island around the grill is framed in wood or built from other combustible material, Alfresco requires one of its jackets for a safe installation. The ARTIJ-32 is self-supporting 304 stainless steel: you build the jacket's opening, the jacket sits in the counter, and the grill slides inside it. Plan the island around the jacketed cutout of 33-1/4" W x 23-5/8" D x 10-1/4" H from the start. It is listed here under our SKU ART-IJ32.

Key Features

• One jacket for every Artisan 32" — Alfresco lists it for all 32-inch Artisan grills: American Eagle, Artisan Series and Professional.
• Swap grill lines later without re-cutting — the three 32-inch heads share one cutout, so the jacketed opening suits any of them.
• 304 stainless, self-supporting — the jacket stands on its own in the counter and the grill slides in.
• Required by Alfresco for combustible construction — the correct part when the island is wood-framed or otherwise combustible.
• Power cord routing — a cable hole lets the 110V ignition and lighting on Artisan Series and Professional models reach an outlet inside the island.
• Four-panel assembly — left, right, bottom and rear panels bolt together with the supplied screws and lock washers.

Specifications

Documents

• ARTIJ-32 spec sheet (PDF)
• Artisan insulated jacket assembly instructions (PDF)

Model and Installation Information

The ARTIJ-32 fits the Artisan American Eagle 32" Built-In Gas Grill (AAEP-32), Artisan Series 32" Built-In Grill (ART-32) and Artisan Professional 32" Built-In Grill (ARTP-32). Alfresco lists it for all of its 32-inch Artisan grills, which works because the three share one firebox and one 30-1/2" x 19-3/4" x 9-1/2" cutout. It is not for the 32-inch cart models.

With the jacket the island opening becomes 33-1/4" W x 23-5/8" D x 10-1/4" H. If a builder has already framed to the grill's own cutout, it will be too small by 2-3/4" in width and nearly 4" in depth. The jacket arrives as panels that bolt together; per Alfresco's assembly instructions the grill's countertop support ring comes off the firebox, the head slides into the jacket over its rails, the six ring screws are refitted, the power cord is fed through the jacket's cable hole and the whole assembly is bedded into the counter with clear silicone. The American Eagle runs on battery ignition and has no cord; the Artisan Series and Professional do. Check every number against the spec sheet and your grill's manual, and leave gas and code questions to a licensed installer. See built-in grill cutout dimensions for more.

Who This Model Is Best For

The ARTIJ-32 is the right buy for a 32-inch Artisan owner — American Eagle, Artisan Series or Professional — building into wood or composite framing. It also suits a builder who wants to leave the grill choice open: because the three 32-inch heads share a cutout, the island can be framed for the jacket now and the grill line settled later. It is not needed for a cart grill, and a fully non-combustible masonry island may not need one either; the grill's manual decides that. Our insulating grill liners FAQs cover the common questions.
