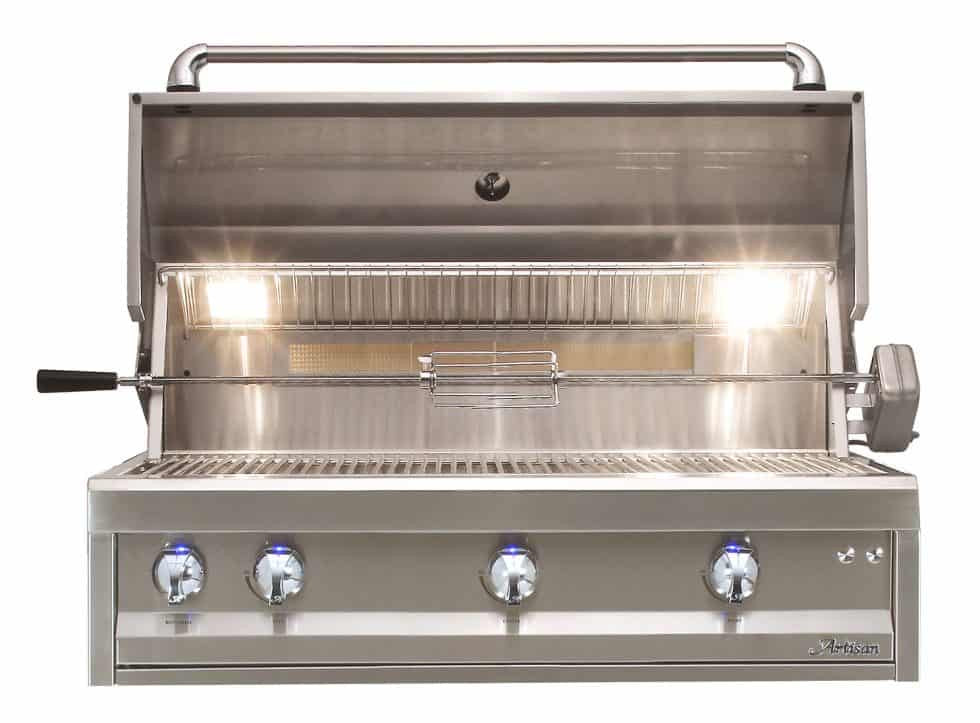

Artisan Professional 42" Built-In Grill - 75,000 BTUs, Infrared Rotisserie Burner, 304 Stainless Steel

At 42" the ARTP-42 is the widest built-in head in Artisan's Professional series, and the one to specify when grate area is what you are short of. Three 20,000 BTU stainless steel U-burners and a 15,000 BTU flush-mounted infrared rear rotisserie burner give 75,000 BTUs of total cooking power spread across the full 42 inches, so the extra width buys you working surface rather than raw heat. It is a grill head alone, made in the USA from commercial-grade 304, 18-8 stainless steel and built to sit outdoors year-round as the permanent centerpiece of an outdoor kitchen island. The Professional-series equipment is all here: the infrared rotisserie burner with a 50 lb torque motor, 110V electronic ignition, a bright halogen work light and an ambient blue LED control panel. Order it in natural gas or propane to suit the supply at your island.

Key Features

• Three 20,000 BTU stainless steel U-burners — 60,000 BTUs of main burner output across a full 42" of cooking width.
• 15,000 BTU infrared rear rotisserie burner — flush-mounted so the spit clears it, bringing total cooking power to 75,000 BTUs and allowing slow roasting with high-heat precision.
• 50 lb torque rotisserie motor — enough to turn a large cut steadily at high radiant heat.

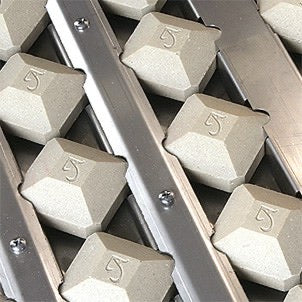

• Ceramic 5-way heat distributing briquettes — spread the flame sideways as well as up, which is what gives even coverage over the full 42 inches.
• Non-stick electro-polished stainless grates — food releases easily and the grates wipe down without a sacrificial coating.
• 110V electronic ignition — reliable lighting, and the same supply feeds the work light and panel lighting.
• Halogen work light and ambient blue LED control panel — see the grates and read the knobs without extra lighting.
• Heat-suppressing air curtain — keeps the front control panel safe to the touch during cooking.
• Hood lift assist system — the large 42" lid opens and closes without a fight.
• Two-position warming rack and integrated thermometer — hold food warm, and roast lid-down to a reading.
• Commercial-grade 304, 18-8 stainless steel — made in the USA.

Specifications

Documents

Artisan 42" Professional Grill Spec Sheet

Artisan 42" Professional Grill Use & Care Manual

Artisan 42" Professional Grill Install Manual

Model and Installation Information

This is model ARTP-42, supplied as a built-in grill head that drops into an island opening — there is no cart or base. The opening is 40-1/2" wide by 19-3/4" deep by 9-1/2" high, and the head measures 42" wide and 26-5/16" deep front to back. Measure your island opening against those figures before ordering or before the island is built, rather than assuming a 42" head drops into a 42" hole, and confirm them against the ARTP-42 spec sheet before any masonry goes in.

Pay particular attention to depth. The rear infrared burner adds depth at the back, and that is the dimension retrofits into an existing island most often get caught out by. Call us if you are fitting the ARTP-42 into an opening originally built for a smaller head, and we will work through the numbers with you before anything is cut.

The 110V electronic ignition means the island needs an outlet as well as a gas line, since the halogen work light and the LED control panel lighting draw from the same supply — plan the electrical rough-in alongside the gas. Natural gas and propane are two separately built configurations, so confirm the supply at your island and order the matching fuel type rather than planning to convert the grill afterwards.

Size the gas supply from Artisan's nominal 75,000 BTU rating, the figure that appears on the specification drawing. Artisan also publishes a certified total rated input for the appliance under ANSI Z21.58 / CSA 1.6, and on the ARTP-42 the two coincide at 75,000 BTU/hr. Whichever figure you quote, the rating and orifice size for the individual grill you receive are printed on its serial plate, as the use and care manual above directs.

Who This Model Is Best For

Choose the ARTP-42 when you are cooking for a crowd and want room to work. It produces the same 75,000 BTUs as the Professional 36, so the reason to step up is grate area, not power: 42 inches of surface across three burners gives you space to hold a genuine cool zone alongside a hot one, or to run a full load of food without shuffling it. That suits large family cooking, entertaining, and anyone who wants to slow-roast on the rear infrared rotisserie burner while the front grates stay free. It needs a wide island to accept it, so it is a grill to plan an outdoor kitchen around rather than one to retrofit into an opening sized for a smaller head.
