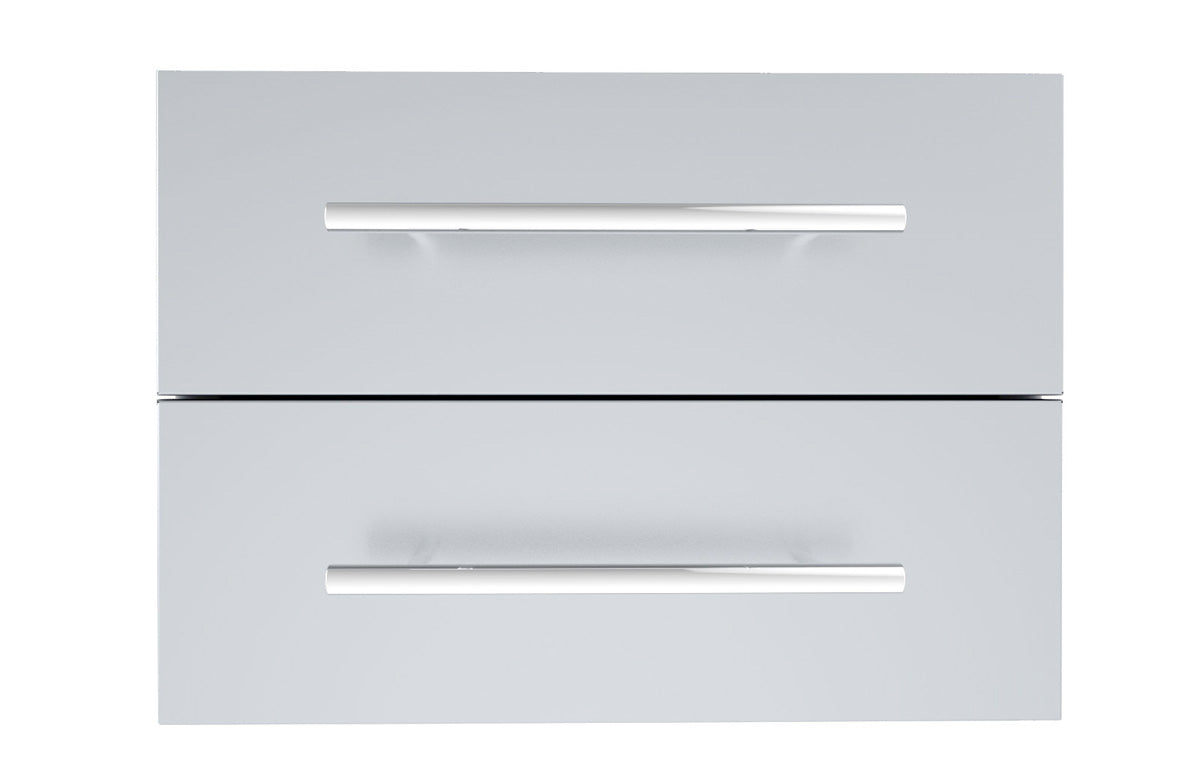

Sunstone Designer Series 13" Double Drawer DE-DD13 - Self-Leveling Legs, Raised Style
- $610.00
- $610.00
- Unit price
- per
Free shipping on all orders
Add to your order optional
Subtotal:
$610.00
Ask Ryan about this grill
Fit, fuel, install or delivery. Get a straight answer before you order.
- Manufacturer warranty on every grill
- 30-day returns on eligible items, 20% restocking fee. Return policy
- 0% credit card fees
Specifications
| Brand | Sunstone |
|---|
Sunstone Designer Series 13" Double Drawer DE-DD13 - Self-Leveling Legs, Raised Style FAQs
What cutout does the DE-DD13 need?
Sunstone’s drawing specifies a 16½″ W × 11″ H × 22″ D opening. Overall dimensions are 18″ W × 13″ H × 23″ D.
Is the drawer box sealed against weather?
Yes. The two drawers sit in a weather-sealed box, which is what makes it usable for towels and tools that would otherwise get soaked.

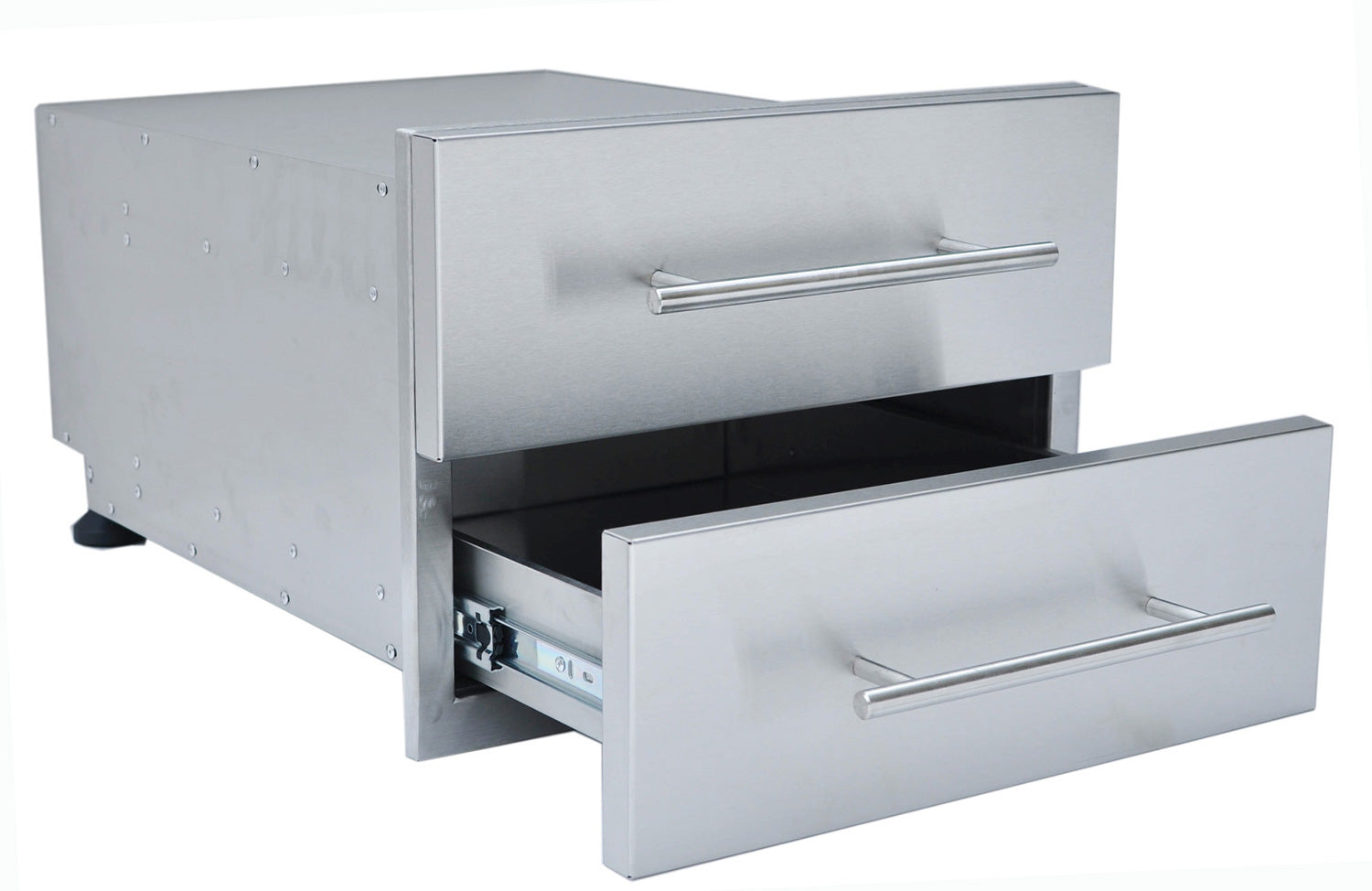

Do the drawers close on their own?
They ride on sturdy soft-closing drawer tracks.

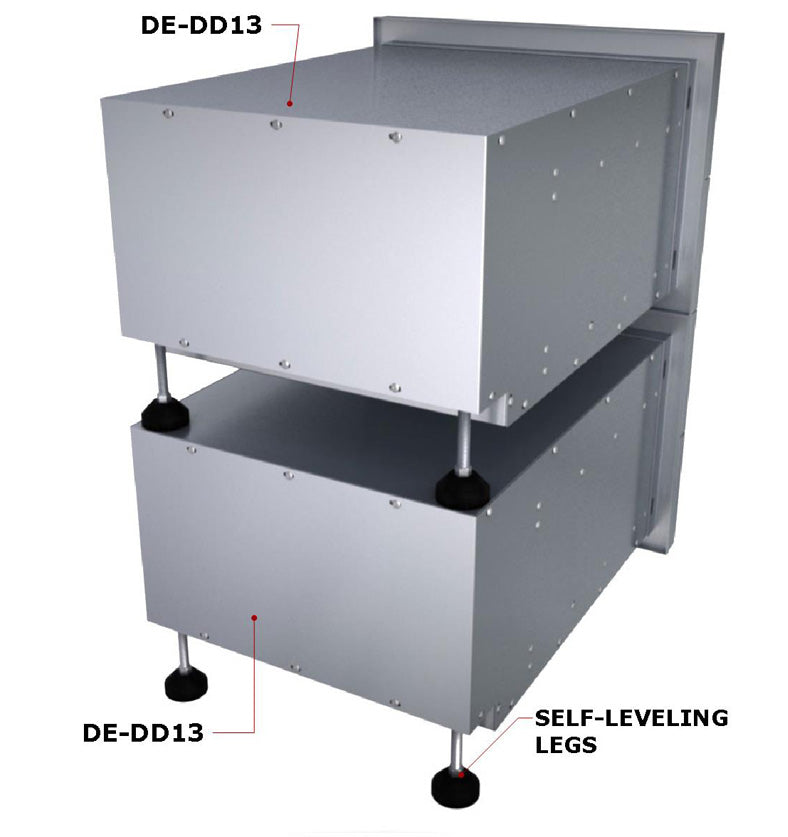

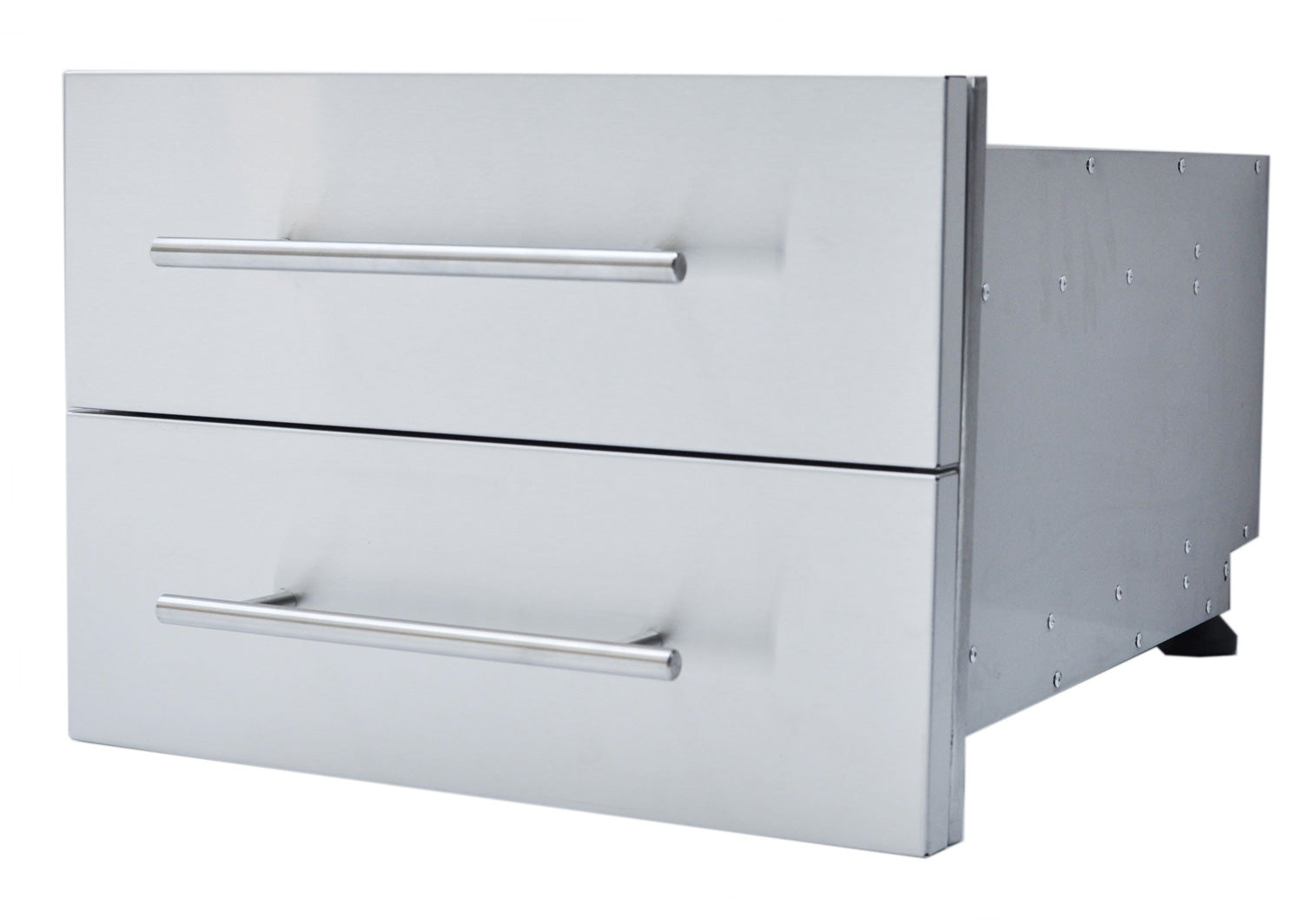

What are the self-leveling legs for?
Adjustable peg legs at the back let you level the box inside the island so the face sits square in the opening.
Worth using rather than shimming, since the drawer alignment depends on the box being level.

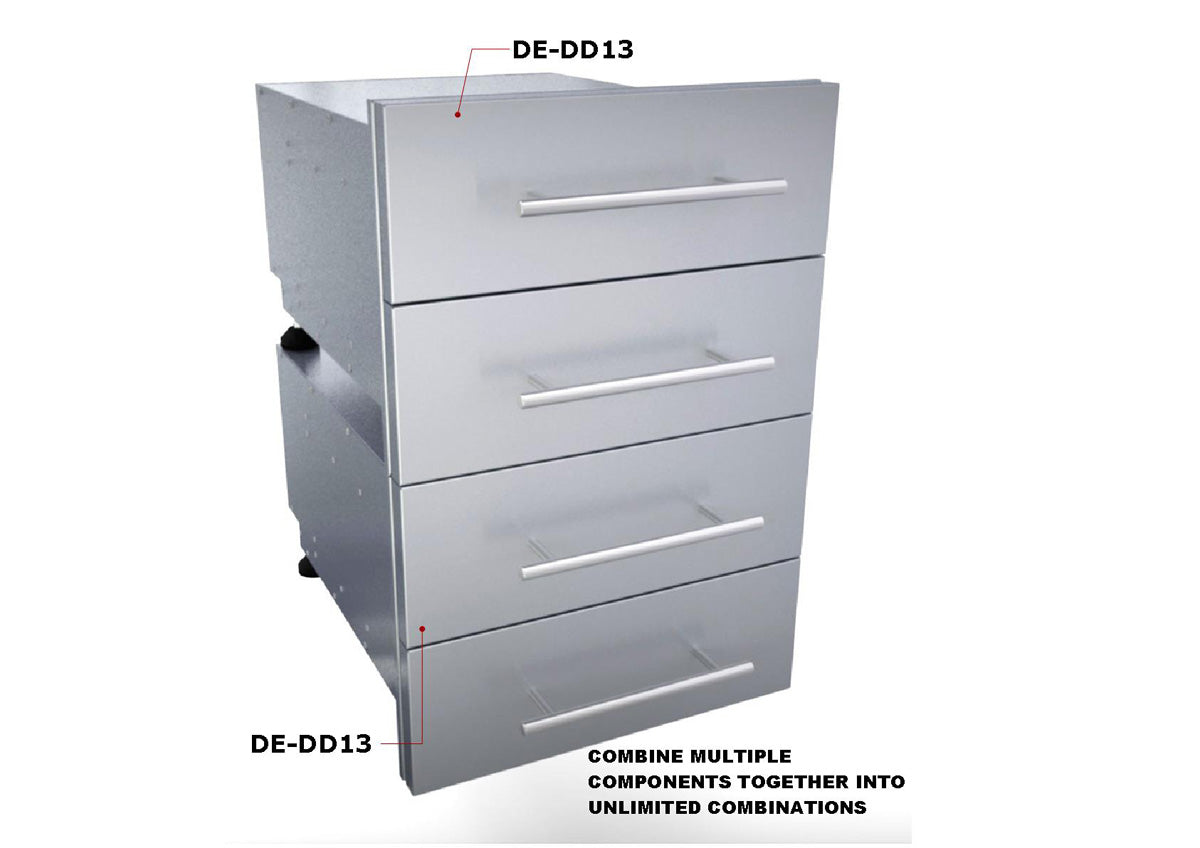

Can I combine it with other Designer Series components?
Yes. It shares the standard 18 inch Designer Series width, and a 1/16 inch frame around all four sides lets components be configured vertically or horizontally.
Stacking two 13 inch high units is one way to fill a taller opening without a custom part.
How does the raised style handle stone?
The component stands 1-1/2 inches off the finished wall and carries a 4 inch deep inside flange for masonry stone types, so it works over veneer stone and stucco as well.
What are the frame, panel and handle made of?
16 gauge 304 stainless frame, 18 gauge 304 stainless drawer panels, and a solid 304 stainless rod handle.
How deep does it reach into the island?
Allow 22″ of clear depth behind the finished island face. The drawer is 23″ deep overall. Check for plumbing, gas lines or framing in the opening.
Sunstone DE-DD13 installation drawing (PDF)
The Sunstone® Designer Series, Raised Style 13 In.Height by 18 In. Width Double Drawer provides a double storage space in a weather sealed box, to store away oversized grill tools, Towels and BBQ accessories. This Double Drawer is specially designed to be the same consistent 18 In.Width as all other Designer Series components – which provide a true designer friendly appeal. The component is raised off the finish wall 1-1/2 inches so to work with most any island structure including Veneer Stone, Stucco and as extra 4 inch deep inside flange to work with all Masonry Stone types. In Addition the frame is designed with an additional 1/16 inch frame around all four sides of component, plus adjustable Self-Leveling Legs in back. Which make all components multi-configurable Vertically & Horizontally, and are styled to match with Sunstone® Cabinet Island products, with both Cabinet Island and individual Designer Component combinations..
- 16 Gauge 304 Stainless Steel Frame
- 18 Gauge 304 Stainless Steel Drawer Panel
- Solid 304 Stainless Steel Rod Handle
- Sturdy Soft-Closing Drawer Tracks
- Adjustable Self-Leveling Peg Legs
- Horizontal & Vertically Configurable
| 13"Height Multi-Configurable Double Drawer w/Self-Leveling Legs |
|---|
| 18" W x 13" H x23 "D ( Product Size ) |
| DE-DD13 cutout: 16½″ W × 11″ H × 22″ D |
| 39 LBS ( Product Weight ) |
| Material Specifications: |
| Drawer Frame is made from 16Gauge 304 stainless steel, and Drawer panel is made from 18Gauge 304 Stainless Steel. Handle is made of Solid 304 Stainless steel |
