Sunstone Classic Series 20" Trash Drawer A-TRHD - Flush Style, Soft-Close, 304 Stainless Steel
- $610.00
- $610.00
- Unit price
- per
Free shipping on all orders
Add to your order optional
Subtotal:
$610.00
Ask Ryan about this grill
Fit, fuel, install or delivery. Get a straight answer before you order.
- Manufacturer warranty on every grill
- 30-day returns on eligible items, 20% restocking fee. Return policy
- 0% credit card fees
Confirm your cutout 17.875" W × 24.375" H × 16.5" D
Specifications
| Brand | Sunstone |
|---|---|
| Cutout (W × D × H) | 17.875" × 16.5" × 24.375" |
| Overall (W × D × H) | 20.0" × 16.125" × 27.0" |
Sunstone Classic Series 20" Trash Drawer A-TRHD - Flush Style, Soft-Close, 304 Stainless Steel FAQs
Will A-TRHD fit my existing outdoor kitchen opening?
Assembly dimensions (W × H × D): 20 × 27 × 16.125 inches. Required opening (W × H × D): 17.875 × 24.375 × 16.5 inches. Manufacturer comparison table identifies A-TRHD dimensions. Maximum customer-supplied bin: 15 W × 22½ H × 12 D inches. Stainless frame/front with 201 stainless interior box. Request a fit check before ordering or construction.
What bins or trash bag supports come with A-TRHD?
Trash bag ring included; plastic bin supplied separately. Capacity alone does not establish compatibility: check rim width, body width, height, depth and the path for lifting the bin out.
Which alternatives should I compare with A-TRHD?
Compare AXE-TC-SC and C3-STC and the full trash and recycling range. These are shopping alternatives, not guaranteed replacements for the same opening. Compare the cutout, full-extension space, bin inclusion, finish and installation type.
What does my installer need before fitting A-TRHD?
Review the manufacturer specification or installation drawing for the exact SKU and finish. Confirm the opening, frame overlap, finish thickness, rear support, fasteners, handle projection and full extension. Send Ryan the measurements and photos for a fit check.
Can I put my own trash bin inside it?
Yes, up to 22-1/2 inches high by 15 inches wide by 12 inches deep.
Measure the bin you already own against those maximums before you assume it will drop in.
Does it come with a way to hold a bag without a bin?
Trash bag ring included; plastic bin supplied separately. Check the exact receptacle rim and body dimensions, not capacity alone. Ask Ryan to confirm bin compatibility.

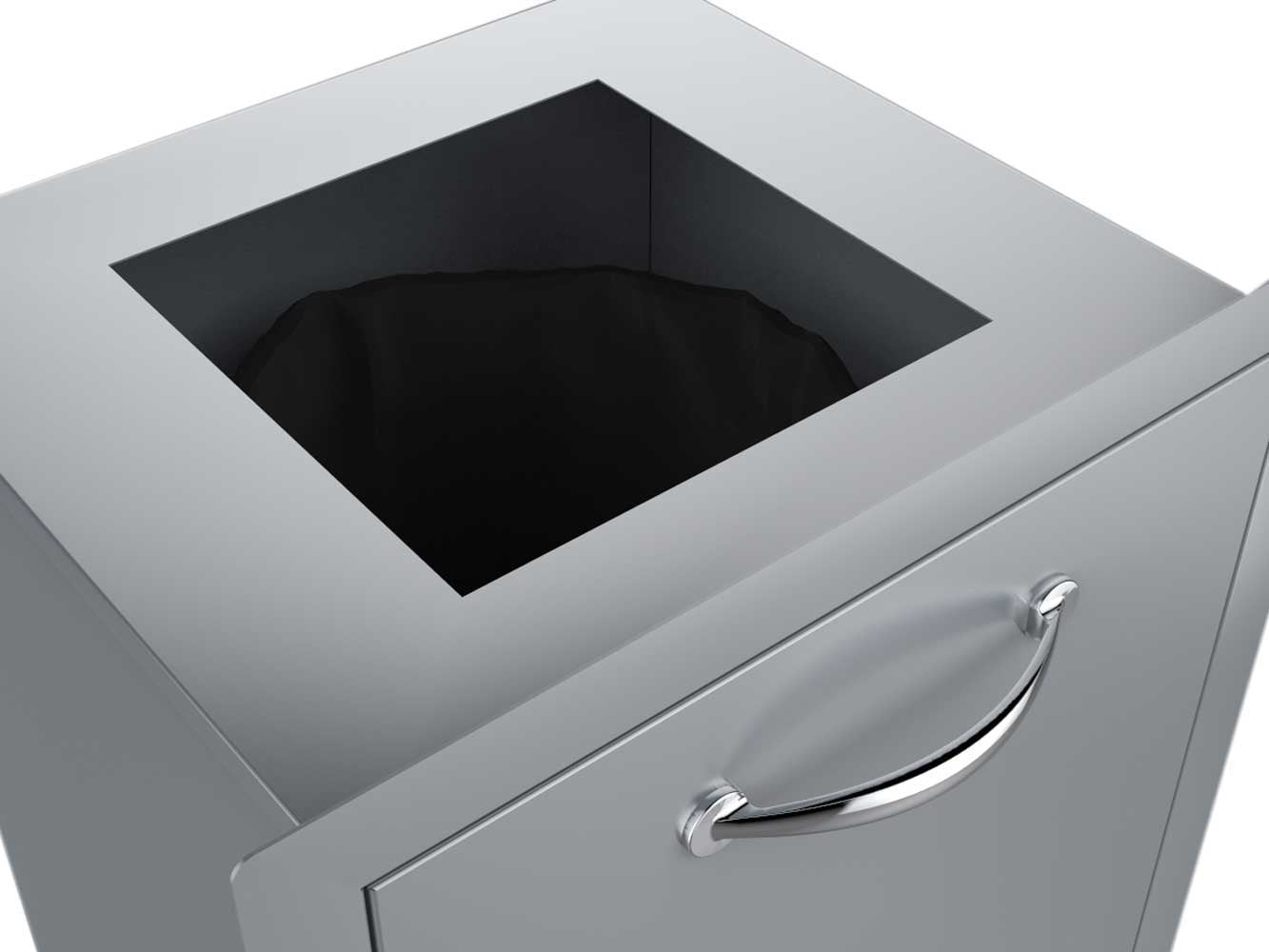

What is the punch-out on the top for?
It is an optional square knockout that makes the drawer trash-chute ready, so scraps can be pushed straight through a countertop opening.
Leave it intact if you are not adding a chute; punch it once you are sure of the counter layout.
Does the drawer slam?
No. The track is soft-close, so it pulls the drawer firmly shut every time rather than bouncing off the frame.
Is the interior box protected from weather?
Follow the manufacturer's outdoor installation and care instructions. Stainless steel resists corrosion but needs regular cleaning, especially around salt, pool chemicals and food spills. Do not assume the enclosure is waterproof, pest-proof or odor-tight unless that performance is explicitly specified.
How heavy is the unit?
40 pounds.
Will it look right beside a non-Sunstone grill?
The #4 horizontal light brushed finish and large polished chrome handle are built to blend with components from most other BBQ brands.
You can compare it against the roll-out and pull-out trash bins if you would rather have a pull-out than a drawer.
Sunstone Classic Series 20" Trash Drawer A-TRHD - Flush Style, Soft-Close, 304 Stainless Steel
A-TRHD provides single-bin pull-out for an outdoor kitchen cleanup area. Choose it by the measured opening, storage layout and bin requirements below.
Ask Ryan to check the fit of A-TRHD. Share the existing model, finished opening, photos and bin dimensions before ordering.
Dimensions and installation
All measurements are inches. Product dimensions and required cutouts are different; check projection and component notes below.
| Measurement | Product / assembly | Required opening / cutout |
|---|---|---|
| Width | 20 in | 17.875 in |
| Height | 27 in | 24.375 in |
| Depth | 16.125 in | 16.5 in |
Manufacturer comparison table identifies A-TRHD dimensions. Maximum customer-supplied bin: 15 W × 22½ H × 12 D inches. Stainless frame/front with 201 stainless interior box.
Bins and configuration

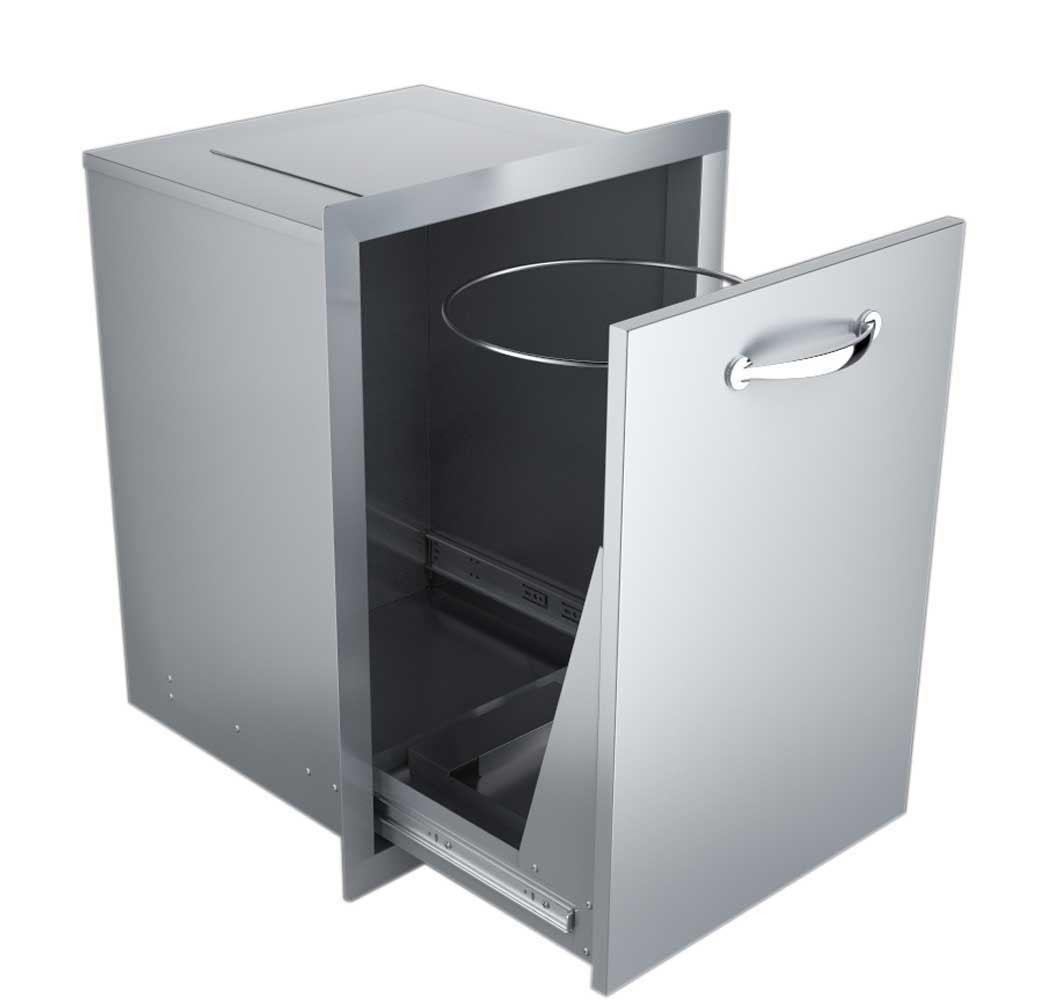

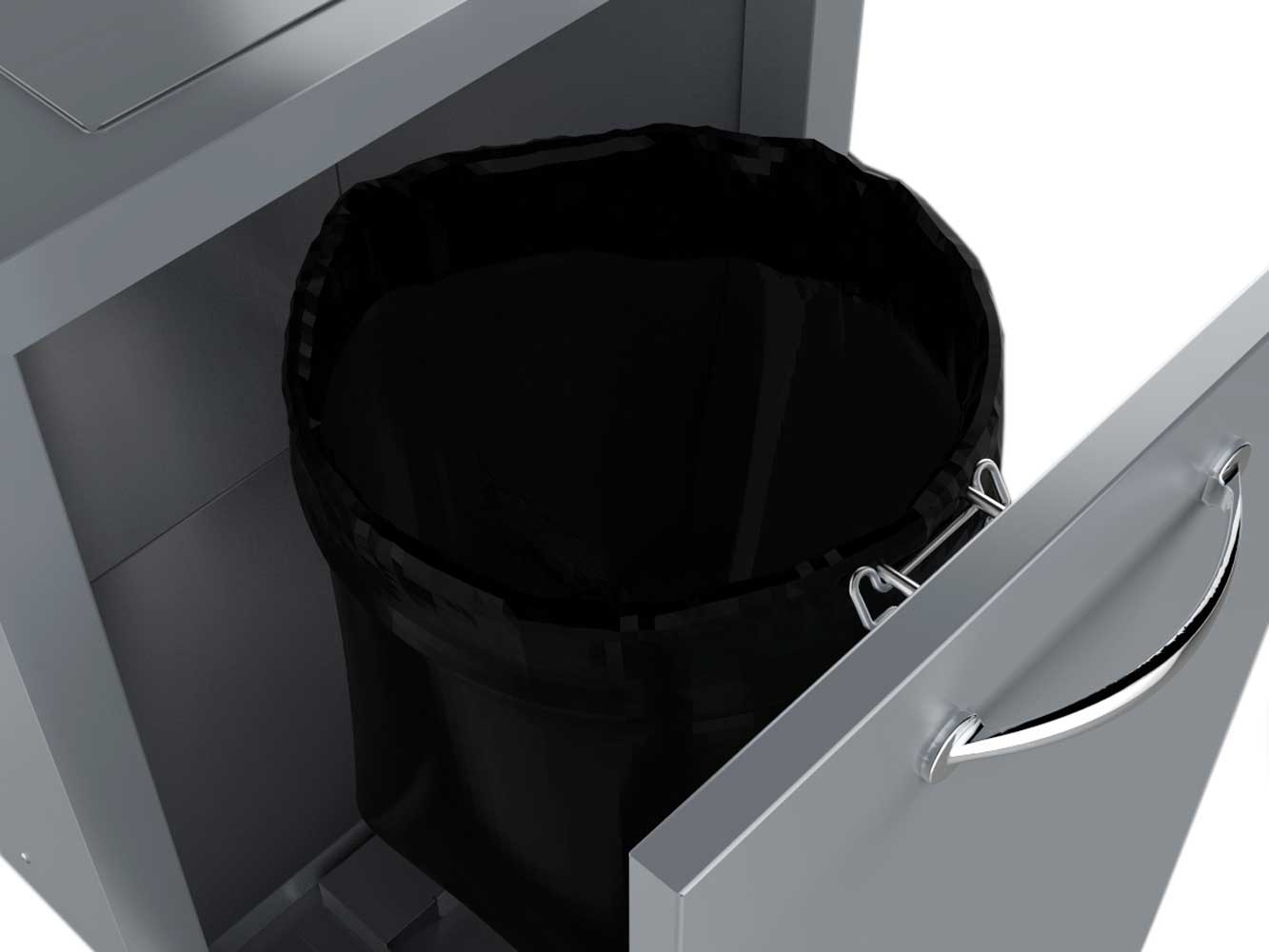

Trash bag ring included; plastic bin supplied separately.

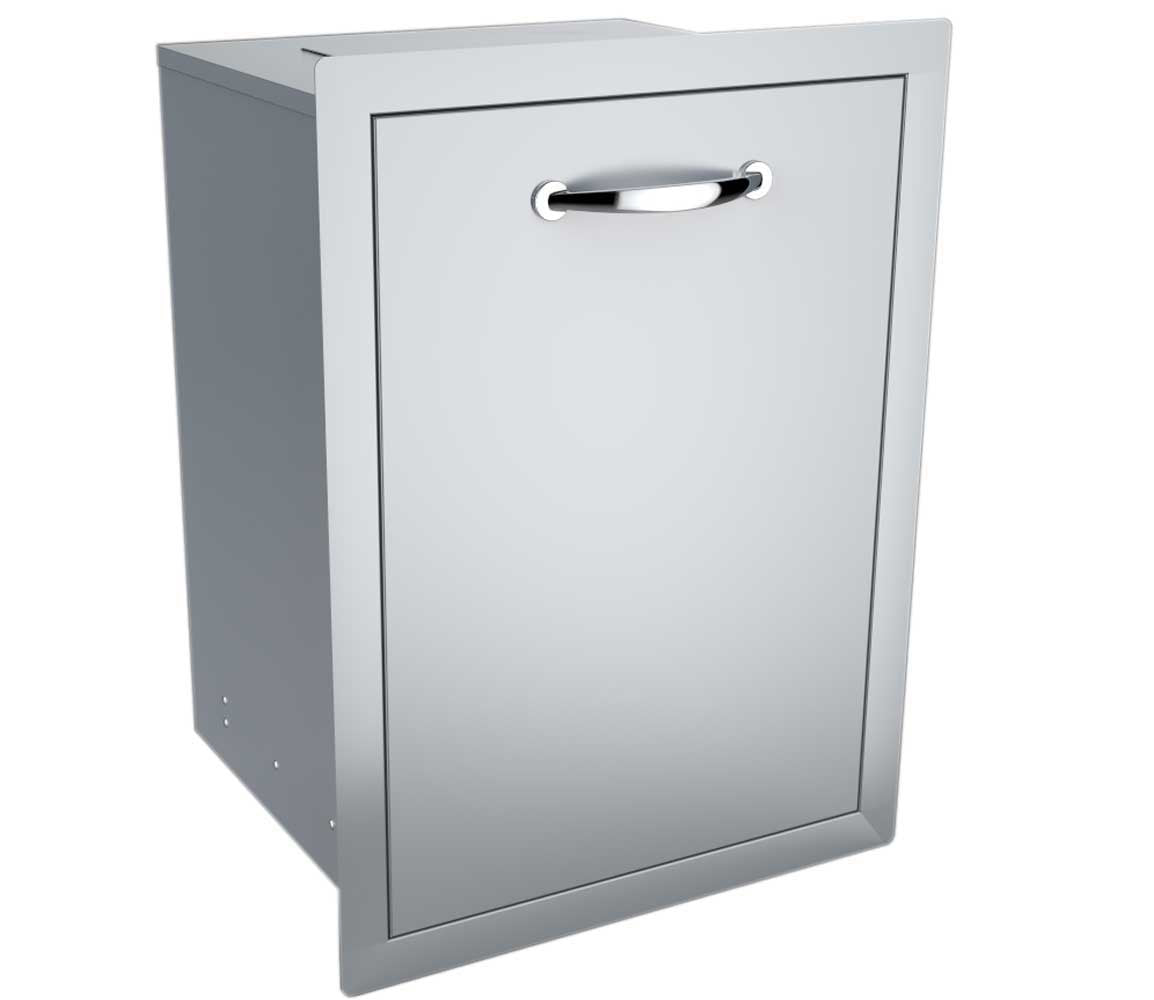

304 stainless steel frame, panels and drawer tray with a 201 stainless interior cabinet box.
Manufacturer specifications and installation information. Have the exact supplied unit and drawing confirmed before cutting the island.
Compare your options
Compare AXE-TC-SC and C3-STC and the full trash and recycling range. These are shopping alternatives, not guaranteed replacements for the same opening. Compare the cutout, full-extension space, bin inclusion, finish and installation type.
Browse 18–20 Inch Outdoor Trash Drawers & Cabinets, or read the outdoor trash drawer and cabinet buying guide and trash storage FAQs.
For stock and delivery timing to your ZIP code, send Ryan a fit request.
