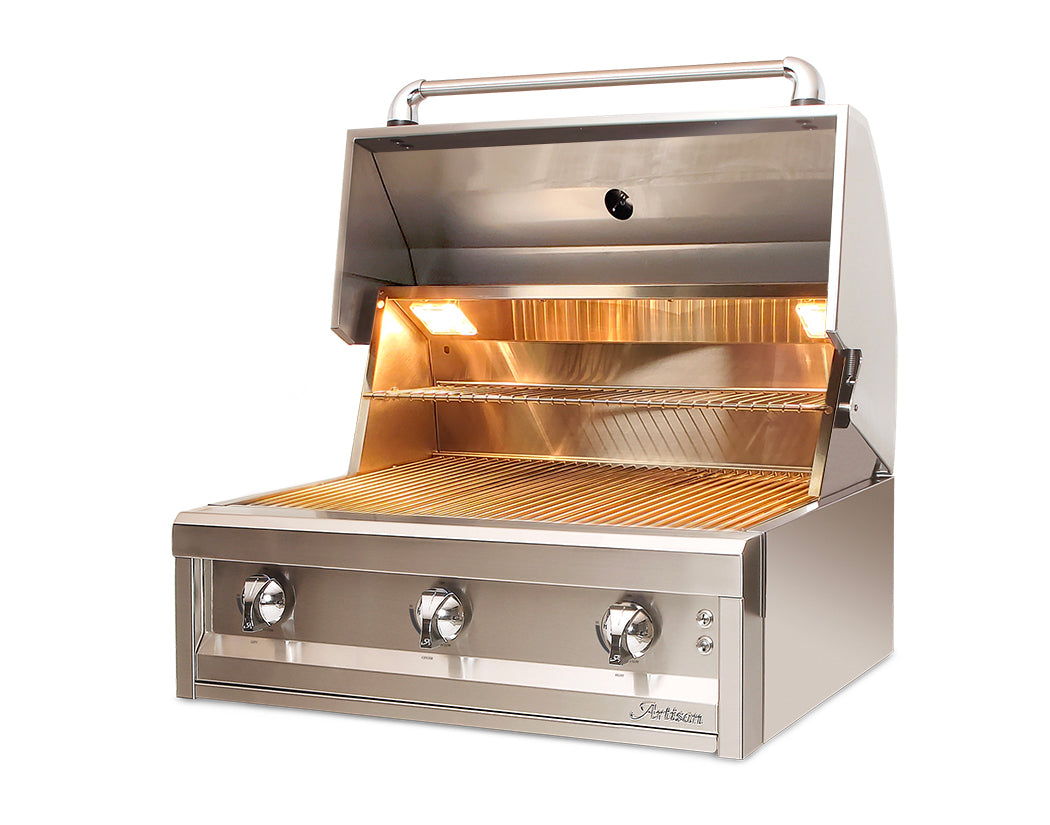

Artisan Series 32" Built-In Grill ART-32 - 3 Burners, 54,000 BTUs, 304 Stainless Steel

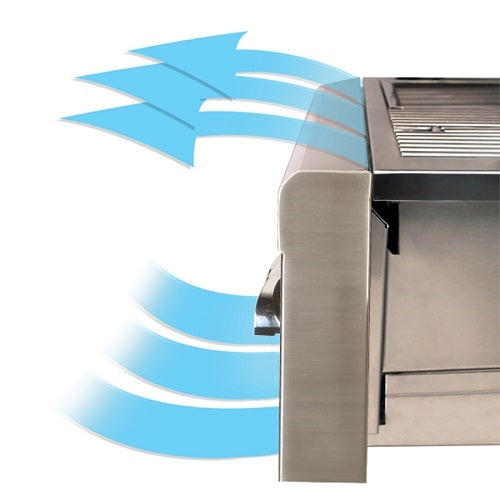

The ART-32 is the built-in head from Artisan's middle series — the line that adds 110V electronic ignition and interior halogen work lights to the same 304 stainless chassis used across the 32" range, while leaving out the rear infrared rotisserie burner and lit knobs that define the Professional models. Three 304-series stainless U-burners, ported in dual rows on three sides, put up to 54,000 BTUs under 530 square inches of main grate; a two-position warming rack above brings Artisan's published total to 719 square inches. Half-inch refractive ceramic briquettes sit between the burners and heavy-duty stainless grates finished with an electro-polished non-stick surface, so the heat arrives spread across the width rather than in three stripes. The body is commercial-grade 304, 18-8 stainless with heli-arc hand-welded seams and no mechanical fasteners, and the seamless double-walled hood is spring-assisted with a thermometer set into it.

Key Features

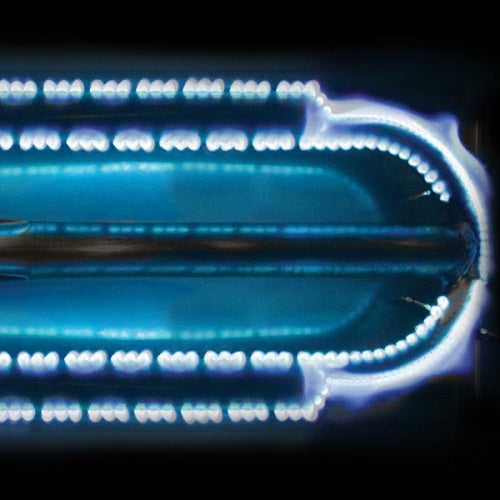

• Three 304 stainless U-burners, up to 54,000 BTUs — dual rows of double-lanced ports on three sides, for coverage across the full grate rather than over the burner tubes alone.

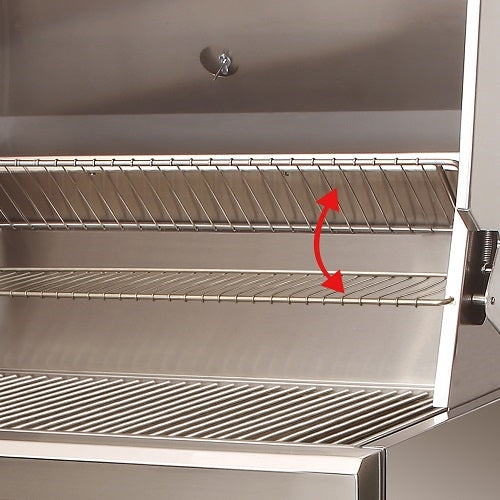

• 719 sq in of total grilling area — 530 sq in on the main grate plus a 188 sq in two-position warming rack.

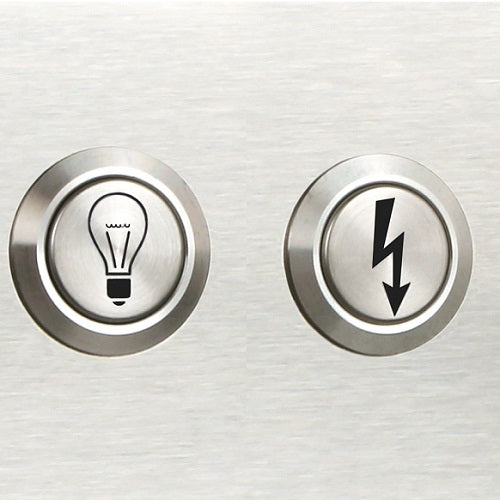

• 110V electronic ignition — continuous spark with heat-protected wiring, the step up from the 9V battery ignition used on Artisan's American Eagle heads.
• Interior halogen work lights — the grates stay visible after dark. Lit control knobs are a Professional Series feature and are not part of this model.
• 30-1/2" x 19-3/4" x 9-1/2" cutout — the standard Artisan 32" opening, shared with the American Eagle and Professional heads of the same size.

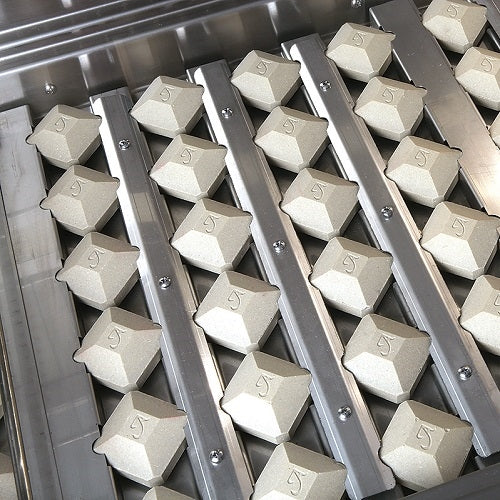

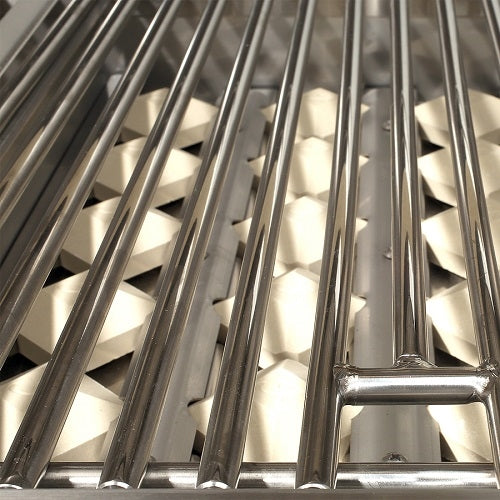

• Refractive ceramic briquettes and electro-polished grates — half-inch briquettes under heavy-duty stainless grates with a non-stick finish.

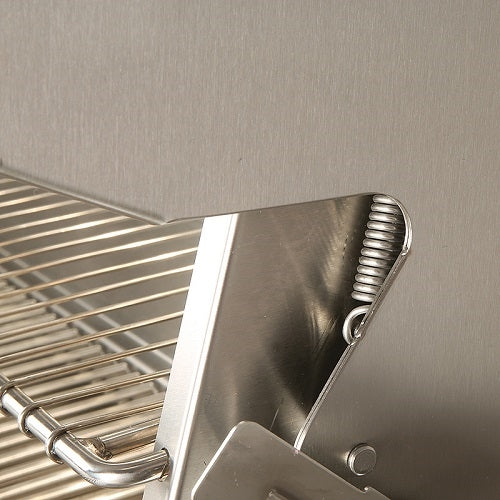

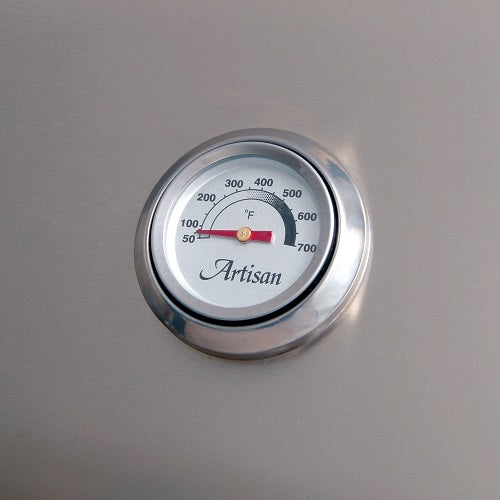

• Heli-arc welded 304 stainless throughout — no mechanical fasteners, seamless double-walled spring-assist hood, integrated thermometer. Made in the USA.

Specifications

Documents

Artisan Series ART-32 Spec Sheet

Model and Installation Information

Order this head as ART-32 and name the gas: ART-32-NG for natural gas, ART-32-LP for propane. The orifices differ between the two, so match the model to the line already run to the island. Do not confuse it with the ARTP-32 or the AAEP-32 — those are the Professional and American Eagle heads at the same nominal size, and they differ in ignition, lighting and rear-burner content rather than in fit.

The opening is 30-1/2" wide by 19-3/4" deep by 9-1/2" high, which is the standard Artisan 32" cutout and is the same across all three series. Build to those three figures rather than to the 32" nominal size — the head is 31-13/16" wide overall and the trim laps the opening on each side. Two things are worth settling alongside the gas line. First, this model has a 110V electronic ignition, so it needs a 115 VAC supply on a GFI-protected circuit inside the island; that same supply runs the halogen lights, and the rough-in is far easier before the island is closed up. Second, if the enclosure is built from combustible material you need the ARTIJ-32 insulated jacket, which takes its own larger opening of 33-1/4" by 23-5/8" by 10-1/4" — a decision that has to be made before framing, not after. The ART-32CV cover is sized for this built-in head; ART-32CVC is the cover for the cart version.

Who This Model Is Best For

Choose the ART-32 when you want the powered, lit version of Artisan's 32" head and have no use for a rotisserie. Against the American Eagle AAEP-32, the difference is electricity: 110V ignition instead of a battery, and halogen work lights instead of none. Against the Professional ARTP-32, the difference is the rear infrared burner and the illuminated control panel, which is what the step up in price buys there. So this is the model for someone who cooks over the main grates, wants to see the food after dark, and would rather put the difference into the island. On size, 32" of grate suits a household cooking for a family with room for guests; move up to the ART-36 if you routinely fill the grate edge to edge.
