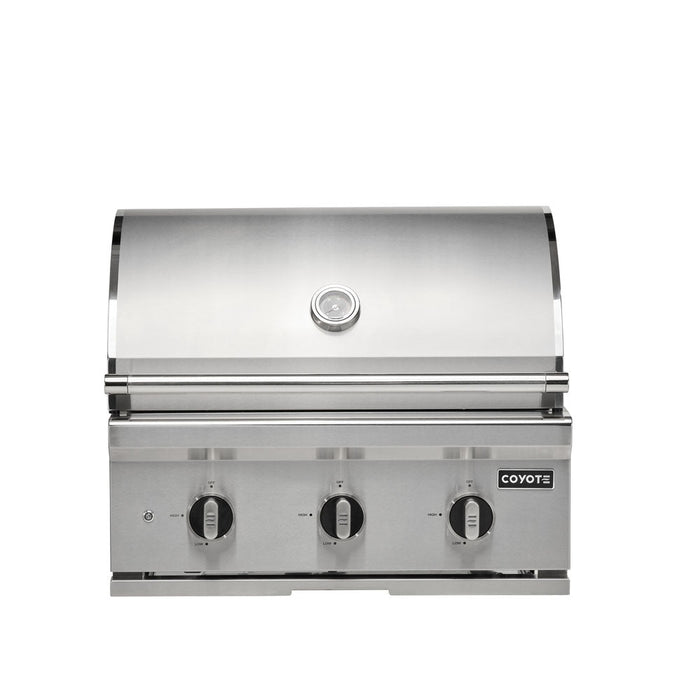

Coyote C-Series 30" Built-In Gas Grill C3C30 - 640 Sq In, 304 Stainless Steel

What cutout does the C3C30 need?

25" wide x 10 1/4" high x 20 1/2" deep. The grill measures 28" W x 23" H overall, so it sits over the opening rather than inside it. Coyote’s own documents give two different overall depths (23 3/4" and 25 1/2"), so confirm depth with us before you finalize the back wall.

Build to the cutout numbers. The overall width is what determines how much counter you lose, and the two are three inches apart on this model.

How many burners does it have and how much heat do they make?

Coyote’s own documents disagree on this model: the C3C30 owner’s manual lists two I-Burners and 40,000 BTUs, while Coyote’s 2025 catalog and the C3C30 installation guide list three burners and 45,000 BTUs. Until Coyote settles it we don’t publish either figure — call us at 843-212-7209 if burner count decides your purchase. There is no rear burner on this model.

How much cooking space is there?

497 square inches of primary cooking space, plus a 143 square inch warming rack for 640 square inches in total.

Does it come with a rotisserie?

No. A rotisserie kit is purchased separately for the C-Series 30, and there is no rear infrared burner behind the grates.

If rotisserie cooking is something you plan to do regularly, look at a series that includes the kit rather than adding it later.

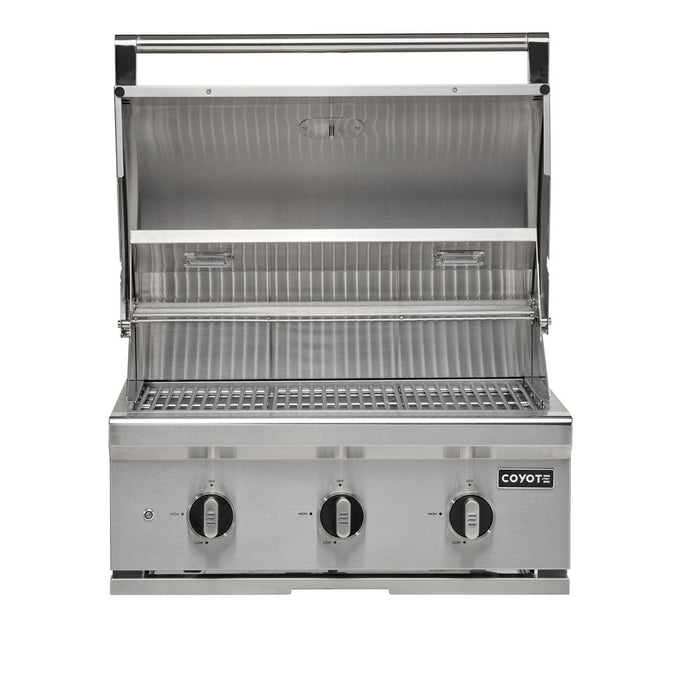

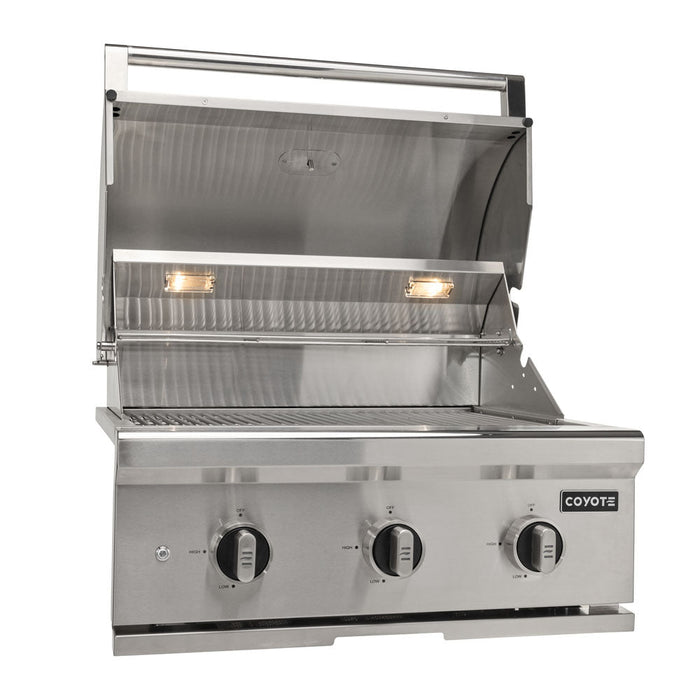

Are there lights in the hood?

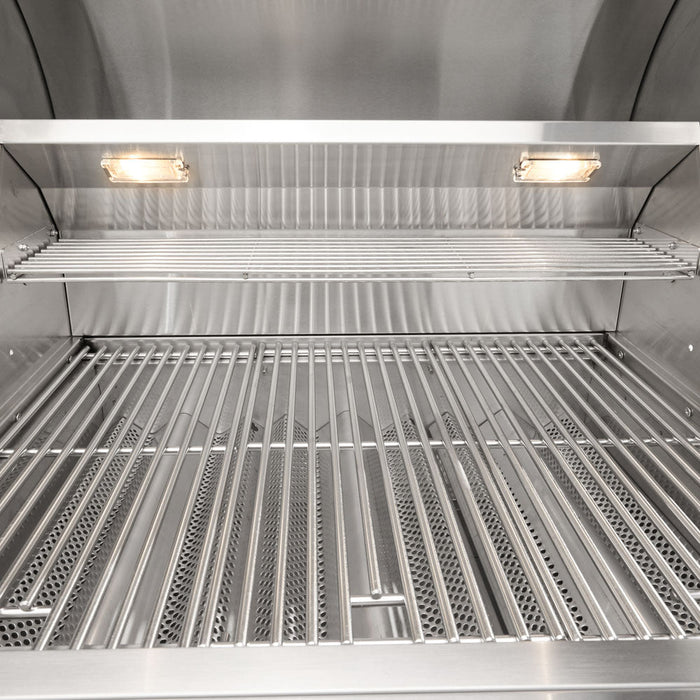

Yes, internal lights. They light the cooking surface when the hood is open, but there are no external control panel lights on this series.

Does the hood lift on a spring?

No. The C-Series 30 hood is lifted manually. Spring-assisted hoods are an SL and CL series feature.

Is this propane or natural gas?

The listed model is C3C30LP, the propane build. Gas type is set at the factory, so check the model designation on your order against the fuel at your island.

How heavy is the grill?

98 pounds. That is on the lighter end for a built-in this size, but the island framing still needs to carry the load at the lip of the cutout.

What is the difference between the C-Series and the SL-Series at 30 inches?

The SL-Series 30" adds a rear burner, includes the rotisserie kit, has a spring-assisted hood and adds external lighting. The C-Series leaves the rotisserie as an add-on.

Don’t assume the two share a cutout: Coyote’s documents give the SL-Series 30" two different cutout widths, so confirm it with us before framing.

What is it made of?

304 stainless steel throughout, including the cooking grates, which hold heat well enough to leave sear marks.

Is there a version that does not need an island?

Yes. The C-Series 30" freestanding cart grill is the same series mounted on a rolling cart with enclosed storage, for patios and decks where you are not building an island.
