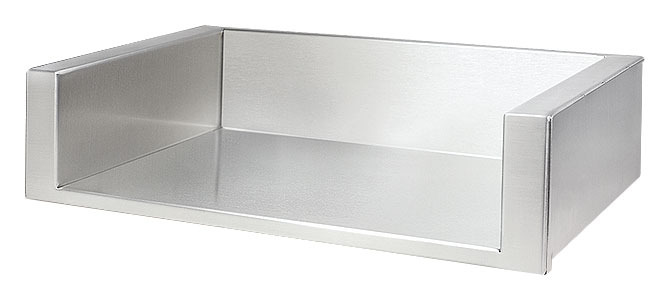

Alfresco 56" Insulated Jacket AIJ-56 - For 56" Built-In Grills, Combustible Construction

What does the AIJ-56 actually do inside the island?

It isolates the grill body from the framing and cabinetry around it. Sustained heat off a 56-inch grill would otherwise sit directly against wood structure and adjacent finishes, and the jacket puts a stainless barrier in between.

It stays in the island permanently. Once the grill drops in, the jacket is part of the structure rather than something you remove between cooks.

Why does the 56-inch model need a jacket more than a smaller Alfresco?

Because it produces more heat than anything else Alfresco builds. The 56-inch grill runs three burners plus a sear zone, a rear infrared rotisserie burner and an integrated smoker system, so the thermal load on surrounding structure is the highest in the range.

The AIJ-56 is sized to the 56-inch body specifically. Match the jacket to your grill width rather than reusing one built for a narrower model, and see Grill Liners if your grill is a different size.

What is the jacket made from?

304 stainless steel, the same family of material as the grill it surrounds. That matters here because the jacket lives outdoors and cycles from ambient to cooking temperature every time the grill runs.

Does a 56-inch grill on a cart need one?

No. The jacket exists for grills built into island construction, where the body is surrounded by island structure. A cart grill is not framed into anything, so there is no surrounding structure to line.

Check your model designation before ordering so you know whether you are buying for a built-in or a cart configuration.

Will a building inspector look for this?

Expect them to. Part of what the jacket provides is a properly engineered enclosure around a high-output grill, which is what an inspector wants to see when that grill sits in combustible construction.

Local code has the final say on whether it is mandatory, so verify the requirement where you are building before the island goes up.

Is this the same thing as a grill cover?

No, and one does not replace the other. A cover is weather protection you put on and take off; the AIJ-56 is an installation component that gets built into the island and never comes out.

If you also want the grill protected between cooks, that is a separate item in Grill Covers.

When is an insulated jacket required?

Whenever the grill is installed into combustible island construction such as wood or composite framing. A fully non-combustible masonry island may not require one.

Confirm against Alfresco's installation manual and your local building code before framing.

Which 56-inch grills does the AIJ-56 fit?

Alfresco lists it as the insulated jacket for its 56-inch grills, which include the 56-inch Deluxe Grill (ALXE-56) and the 56-inch All Grill (ALXE-56BFG). Confirm the current spec sheet for your exact model before ordering.

Does the jacket change my cutout dimensions?

Yes, and on a 56-inch opening that difference matters a great deal. Frame to the jacket's spec sheet rather than the grill's, and confirm before any masonry or framing is poured or fixed.

Is the grill included?

No. This is the insulated jacket only.
