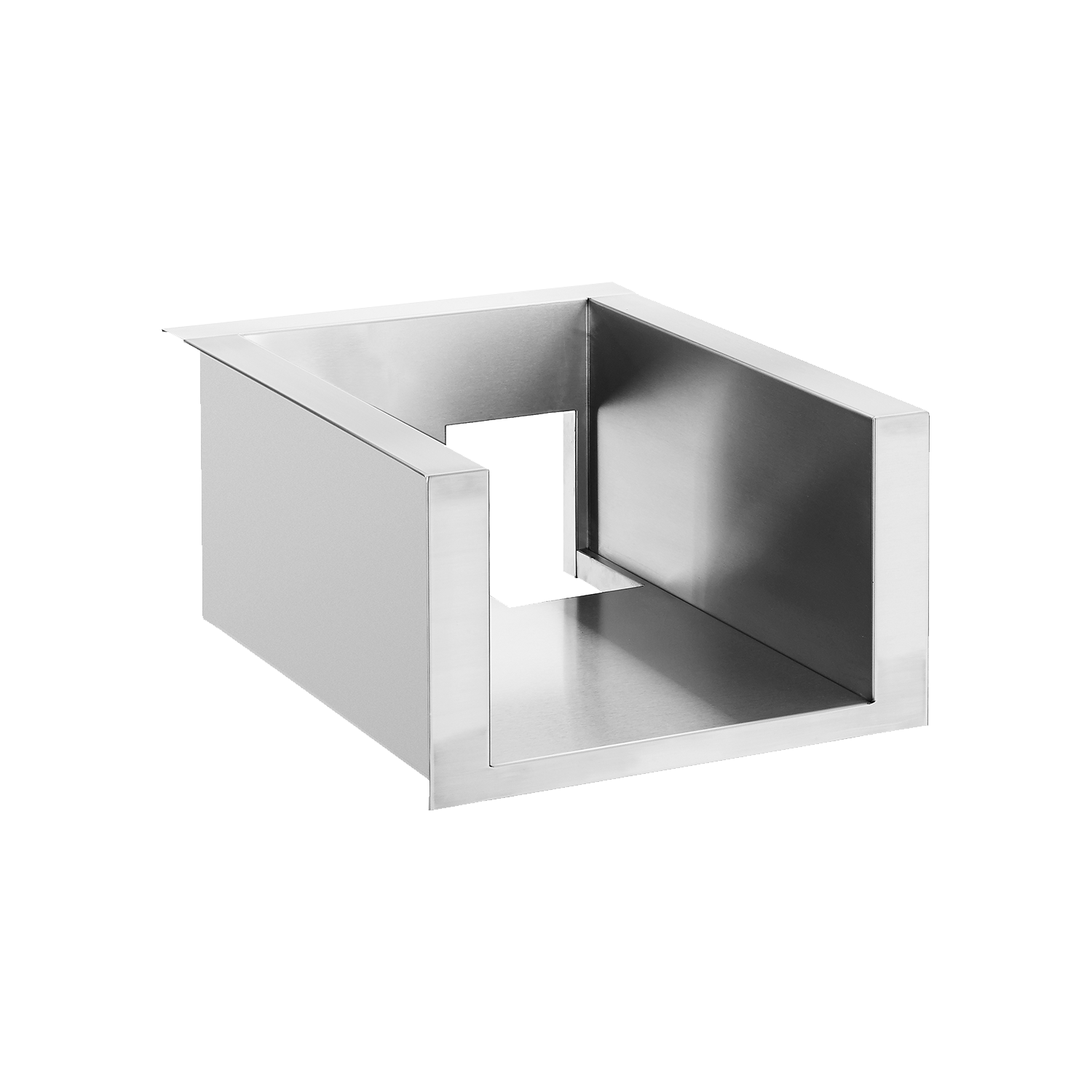

TrueFlame Double Side Burner Insulating Liner - For TFSB2

What size opening do I cut for this liner?

The cutout is 13 1/4" wide x 22" deep x 9 5/8" high. Build the island opening to those numbers, because once the liner is in place it is the liner, not the burner, that sits in the framing.

Measure your framed opening against those figures before you order. The liner is a fixed size and cannot be trimmed to fit.

What are the liner's outside dimensions and weight?

It measures 14.9" wide x 22.8" deep x 9.4" high and weighs 25 lbs. Those are overall numbers, so use them for clearance around the opening rather than for sizing the cutout.

Which burner does this liner go with?

It is built for the TrueFlame Double Side Burner (TFSB2). The GL-TFSB2 part number ties it to that one burner, so check the model designation on your burner before ordering.

My island is framed in wood. Can I still build the burner in?

Yes, and that is what this liner is for. It lets the TrueFlame double side burner be installed in a combustible enclosure, provided the countertop itself is non-combustible.

If your enclosure is masonry or steel framed instead, check the burner's own installation requirements to see whether a liner is still called for.

What is the liner made of?

304 stainless steel. That grade is specified here for outdoor corrosion resistance, which matters on a part that sits buried in an island and rarely gets looked at again.

Why is it double-walled?

The two walls protect the burner chassis against heat and corrosion. That construction is what adds durability at the point where the burner meets the surrounding enclosure.

Does this listing include the burner?

No. This is the liner on its own, and the burner is a separate purchase. If the same island also needs a liner behind a grill head, see the grill liners collection.
