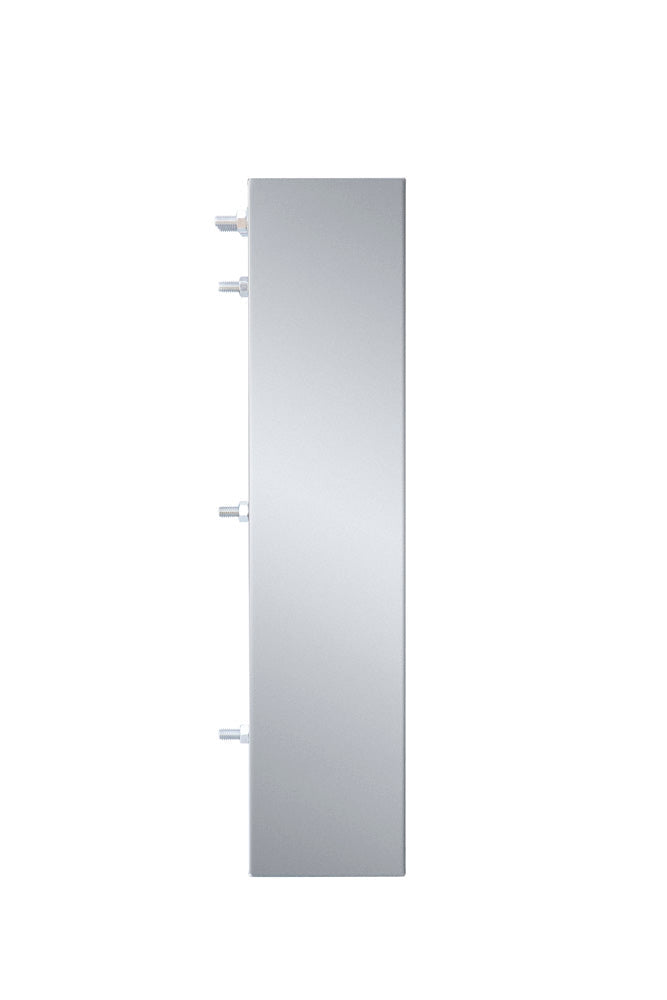

TrueFlame 4" Spacer Bracket for TF-VH36-2 Vent Hood

Every TrueFlame vent hood mounts flat against the wall unless something is put behind it, and this 4-inch spacer bracket is the part that moves the 36-inch TF-VH36-2 canopy out from that surface. It is a fixed-size stainless steel bracket, dedicated to that one hood model, ordered separately from the hood and used when a backsplash, tile or masonry face means the canopy cannot sit flush.

Key Features

• Model-specific fitment - listed for the TrueFlame 36" outdoor vent hood, model TF-VH36-2. TrueFlame builds a separate bracket for every hood in the TF-VH range, so this one is not interchangeable with the others.
• 4" stand-off - a fixed depth, not an adjustable one. TrueFlame offers this bracket for the TF-VH36-2 in 4" and 8" only, and the figure in the name is the whole difference between them.

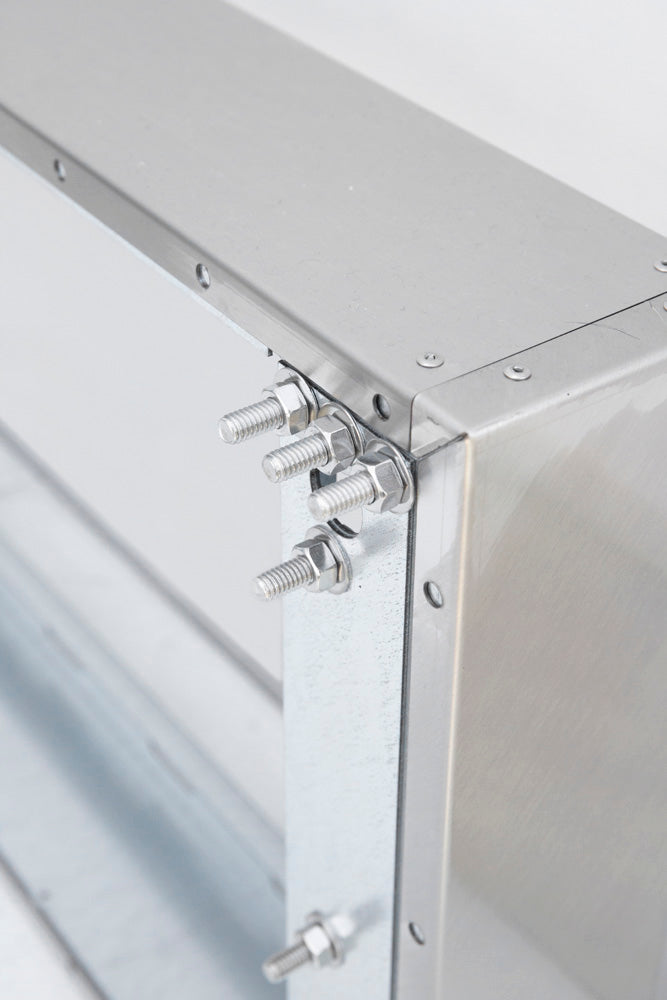

• #304 stainless steel - the same weather-resistant, easy-to-clean grade TrueFlame uses for the hood itself, so the bracket weathers at the same rate as the canopy sitting on it.

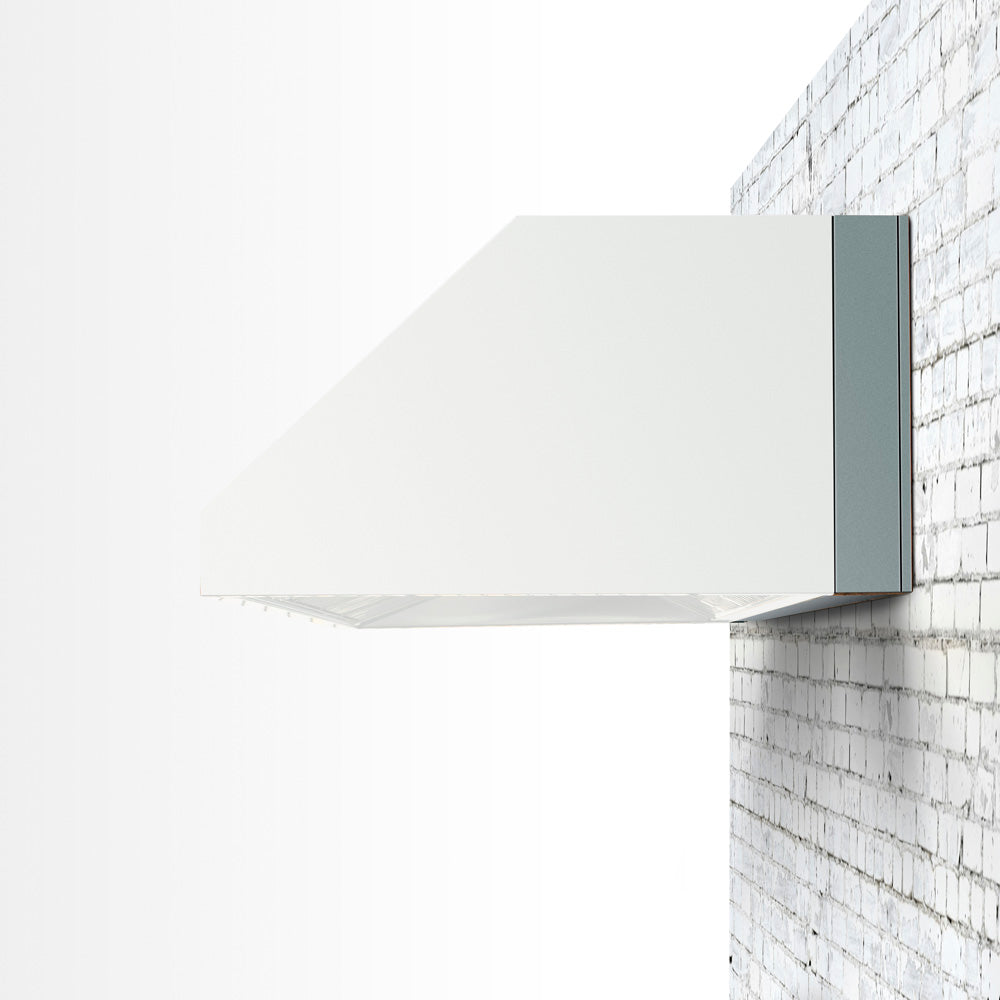

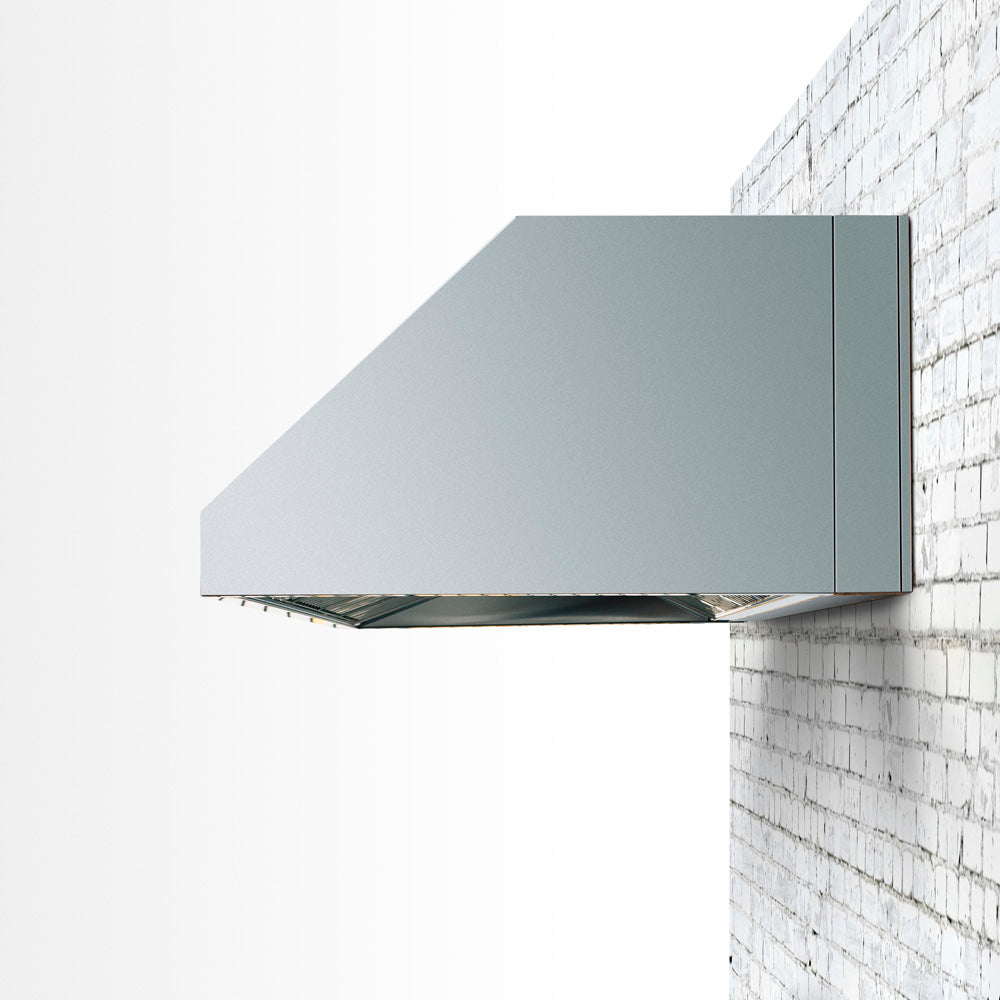

• Positions the canopy correctly - the bracket sets the hood, and any duct covers stacked above it, out from the mounting surface so the canopy still sits over the appliances below and captures rising smoke and heat.
• Sold separately - a spacer bracket is not packed with the hood. Neither are duct covers, fillers or wye fittings; each is ordered on its own.

Specifications

Model and Installation Information

The model to match is TF-VH36-2-SP4. Read the designation off your hood's rating label rather than going by width alone, because the TF-VH range has been revised and a bracket bought for an earlier or a different hood will not line up.

No island cutout is involved here. This is a wall-mounted part: the bracket goes between the hood and the wall or chase, so what you need to confirm is the depth your finish actually requires and that the structure behind it can carry a 36-inch canopy plus the bracket. TrueFlame does not publish canopy depth, height or duct dimensions in this listing, so take those, along with duct routing, clearances and the electrical supply at the hood position, from TrueFlame's installation manual and have the work done by a licensed professional.

Who This Model Is Best For

This is the shallower of the two brackets made for the 36-inch hood, and 4 inches is usually the right number when the hood is going over a tiled backsplash or a thin stone veneer rather than a deep masonry face. The TF-VH36-2 is the narrowest and lightest canopy in the TF-VH range, so a modest stand-off keeps it visually tight to the wall while still clearing the finish. If the material behind the hood is thicker than that, order the 8-inch instead of trying to pack out a 4-inch bracket.

Buying From Northwoods Grills

Northwoods Grills is a family-owned retailer, and on hood parts we would much rather check a model number for you than process a return. Call 843-212-7209 and we will confirm the hood model, the fitment and the ventilation parts you still need before the order goes in. Shipping is free and we never add a credit card fee.
