TrueFlame Power Burner Insulating Liner - For TFPB

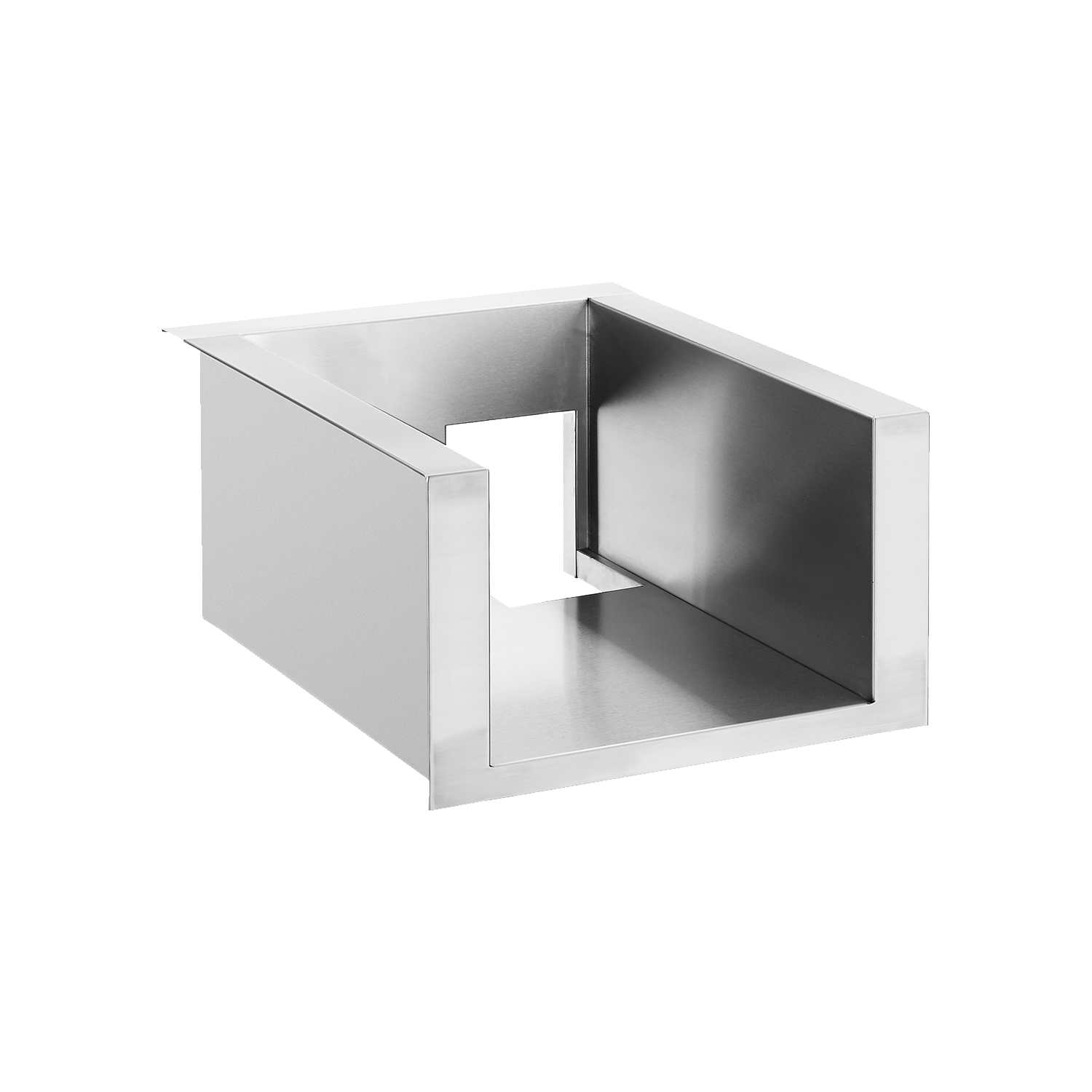

An insulating liner is what makes a built-in gas appliance safe to drop into an island framed from combustible material. This is the TrueFlame liner for one appliance only: the TrueFlame Power Burner, model TFPB. The liner's own model number is GL-TFPB, and it is a stainless jacket that surrounds the burner chassis so the surrounding structure is shielded from the heat the burner produces.

Key Features

• Dedicated to the TFPB power burner - TrueFlame lists a separate liner for each of its built-in burners, griddle and grills, and this one is matched to the power burner alone.
• Enables combustible enclosures - the liner is the component that allows a built-in burner to be set into a wood-framed island instead of requiring the enclosure to be non-combustible throughout.
• 28-1/4" x 10-3/4" x 21-7/8" cutout - the opening TrueFlame's cutout sheet specifies for the GL-TFPB, wider and deeper than the burner alone would need.
• Stainless steel jacket - built for permanent installation inside an outdoor island.

Specifications

Model and Installation Information

The liner is GL-TFPB and the appliance is the TrueFlame Power Burner TFPB. Confirm the model designation on your burner before ordering, because a liner cut for a different TrueFlame appliance will not fit.

This is a built-in product, so the cutout matters more than anything else here. TrueFlame's cutout sheet gives 28-1/4" wide by 10-3/4" high by 21-7/8" deep for the GL-TFPB, and that is the opening to frame, not the burner's own cutout. Check it against TrueFlame's current cutout sheet and installation manual before the island is built or modified, and note that the manufacturer's published dimensions are subject to revision. Whether you need a liner at all comes down to what your enclosure is framed from: if any part of it is combustible, the liner is what makes the installation permissible, and the countertop must still be non-combustible.

Who This Model Is Best For

This is for someone putting a TrueFlame power burner into a wood-framed or otherwise combustible island rather than a block or steel-stud one. The power burner is the highest-output burner in TrueFlame's side-cooking range, and its liner opening is correspondingly wide, so it is worth confirming the 28-1/4-inch cutout will fit your island layout before you commit to the burner as well as the liner.

Buying From Northwoods Grills

Northwoods Grills is a family-owned retailer, and cutout dimensions are exactly the kind of thing we would rather check with you than let you discover after the island is poured. Call 843-212-7209 and we will confirm the burner model, the liner cutout and your enclosure construction before the order goes in. Shipping is free and we never add a credit card fee.

Browse more Grill Liners, the Burners collection, or the full TrueFlame lineup.
